Why Is Heat Treatment Important? Key Benefits

High-performance machined parts such as gears, cutting tools and structural brackets do not rely solely on machining to stay reliable under actual working loads. A component's service life depends largely on its mechanical characteristics, which are formed inside heat furnaces rather than cutting machines. This key difference explains why heat treatment stands as a critical stage in precision metal fabrication.

This processing concept has existed for hundreds of years. Ancient blacksmiths discovered from hands-on work that heating metal to a proper temperature followed by controlled cooling could create sharp long-lasting blades and sturdy structures resistant to cracking. Modern technology has fully explained the chemical and physical mechanisms behind this old practice, yet its fundamental logic remains unchanged. Anyone picking materials for heavy-duty use or investigating early part damage should first check the heat processing record of the component.

What is Heat Treatment?

Heat treatment refers to the regulated heating and cooling cycles used on metals and alloys to alter their internal microscopic structures. The process is far more than just subjecting metal to high heat. It triggers targeted structural shifts that deliver consistent, foreseeable upgrades to a material's mechanical capabilities.

Three core factors decide the final processing result. They are peak temperature, holding duration at that heat level, and the speed of cooling. Combined, these factors shape the metal's micro internal makeup, and this tiny-scale structure controls the material's overall hardness, tensile strength, flexibility and impact resistance.

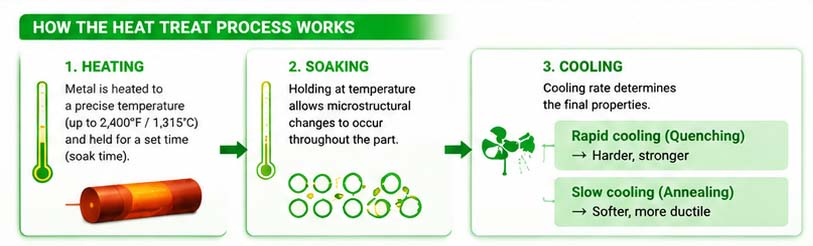

How the Heat Treat Process Works

In the heat treat process, metal is first raised to a precise temperature — sometimes exceeding 2,400°F (1,315°C) — and held there long enough for transformation to occur throughout the part. A longer soak time allows microstructural changes to penetrate more deeply and uniformly. A shorter soak produces shallower, less consistent results.

After soaking, the cooling phase begins — and this is where methods diverge significantly. Rapid cooling (quenching) locks in hardness. Gradual cooling, as in annealing, yields a softer, more workable material. Every treatment type is essentially a variation on this heating-and-cooling logic.

Why Soak Time and Cooling Rate Matter

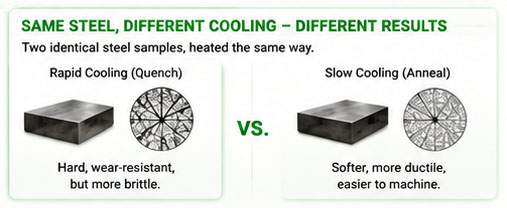

Think of it this way: two identical steel blanks heated to the same temperature but cooled at different rates will behave like fundamentally different materials. One might be hard and wear-resistant; the other, soft and easily machined. Neither outcome is better by default — the right result depends entirely on the application.

This is why specifying a heat treatment isn't just about naming a process. It requires defining temperature, duration, and cooling method. Overlooking any one of these parameters is a documented source of premature component failure in service.

Key Benefits of Heat Treat Metals

Untreated metals, even quality alloys, often lack the specific mechanical profile required by their application. Heat treating metals closes that gap by delivering measurable improvements across several performance dimensions:

• Increased hardness and wear resistance — Essential for cutting tools, dies, and components subject to abrasion

• Improved tensile and shear strength — Critical for structural and load-bearing parts

• Enhanced ductility — Reduces cracking risk during forming operations

• Stress relief — Removes residual internal stresses introduced by machining or welding

• Improved machinability — Softened materials allow tighter tolerances to be achieved more efficiently

• Better electrical and magnetic properties — Relevant in electronic and electromagnetic assemblies

For industries where component failure carries significant cost or safety consequences — automotive, aerospace, industrial tooling — these benefits aren't optional. They're the baseline requirement.

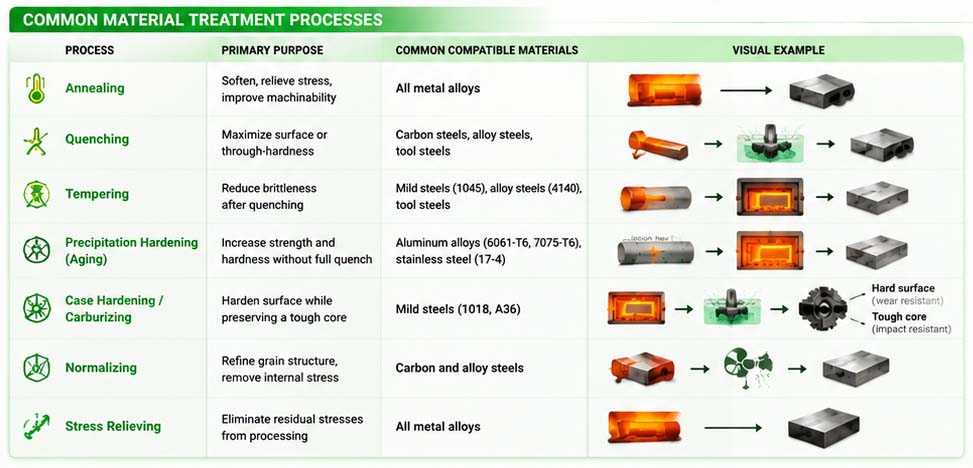

Common Material Treatment Processes

The term material treatment processes covers a broad range of thermal operations, each targeting a specific outcome and suited to particular alloys. Here's a structured overview:

Annealing

Annealing heats the metal to a specified high temperature, holds it there, then cools it slowly — typically in air or a furnace. The result is reduced hardness, improved ductility, and relief of residual stresses. For steel, the cooling must be gradual; rapid cooling defeats the purpose and can introduce unwanted hardness.

Annealing is commonly applied before CNC machining to improve machinability. Most stock metal alloys, in the absence of other specified treatments, are supplied in the annealed condition.

Quenching and Tempering

Quenching rapidly cools heated metal — using oil, water, or gas — to form martensite, an extremely hard microstructure. The tradeoff is increased brittleness. That's why quenching and tempering are almost always performed in sequence.

Tempering reheats the quenched part to a lower temperature, stabilizing its structure and recovering toughness without fully sacrificing the hardness gained. Tool Steel A2, for example, reaches 63–65 HRC after quenching and can be tempered down to 56–58 HRC — a range that balances wear resistance with resistance to fracture under dynamic loading.

Precipitation Hardening

Precipitation hardening — also called aging — involves heating, rapid quenching, and then extended low-temperature aging. During the aging phase, alloying elements redistribute uniformly within the metal matrix, producing a dramatic increase in strength and hardness.

Aluminum 7075-T6 is a well-known example: after precipitation hardening, its yield strength can nearly triple compared to the base annealed condition, reaching tensile strength levels comparable to steel at a fraction of the weight. That combination makes it a standard choice in aerospace structural components. You can find more on alloy designation standards through ASM International's Material Information.

Case Hardening

Some applications need a hard outer surface paired with a tough, ductile interior — a combination that uniform hardening cannot deliver. Case hardening addresses this by introducing carbon into the surface of mild steel during heating, followed by quenching. The result: a hard wear-resistant shell over a soft, impact-resistant core.

This approach is widely used in gears, shafts, and bearing surfaces where high surface durability must coexist with resistance to shock loading. It's a practical engineering solution where full through-hardening would make the part too brittle for service.

Timing Matters in Heat Treatment

Whether heat treatment is applied before or after CNC machining has direct consequences for both process efficiency and final part quality. Treating before machining works well when standardized stock grades are available and the goal is improved machinability. Treating after machining is necessary when the aim is hardening, because hardened materials are far more difficult to cut to precise dimensional tolerances.

For tool steels especially, it is our standard practice to machine first, then harden. LVMA CNC engineers advise against attempting to machine pre-hardened tool steel to tight tolerances, as this significantly increases tool wear and extends machining cycles.

Conclusion

Heat treatment is no minor final step but a fundamental manufacturing procedure that dictates how metal components will function during operation. The heat treat process lets manufacturers accurately adjust hardness, tensile strength, malleability and internal stress levels. Understanding material treatment processes including annealing, precipitation hardening and case hardening, creates a clear divide between parts that only match size standards and those capable of enduring real-world service conditions.

For components engineered to bear substantial mechanical loads, the thermal processing background of a material carries equal weight as its alloy grade. Proper selection of treatment methods, correct timing for thermal processing and accurate parameter settings jointly decide the long-term durability of finished parts. If you process heat treat metals and struggle to pick a suitable thermal treatment method for your project, collaborating closely with your production supplier from the early design phase will always deliver worthwhile efficiency gains.
