Why 5-Axis Machining Is Critical for Aerospace Parts

Aerospace Cnc Machined Parts are typically made from high-strength, high-toughness materials, such as titanium alloys and high-temperature superalloys, which pose extreme challenges during machining. Titanium alloys have a thermal conductivity of only one-fifth that of steel, causing cutting heat to concentrate at the tool edge and accelerating tool wear. High-temperature alloys maintain exceptional strength even under extreme heat, resulting in cutting forces 2–3 times higher than conventional steels, while their tendency to react with cutting tools further intensifies diffusion wear.

Aerospace Cnc Machined Parts typically have highly complex geometries. Turbine blades have large twist angles and varying curvatures, while bladed disks and discs contain deep cavities and ultra-thin walls (typically only 0.5-2 mm thick). In an aircraft engine disc project, conventional three-axis machining requires six separate clamping operations, resulting in surface dimensional deviations as high as 0.05 mm.

How 5-Axis CNC Machining Service Solves These Challenges

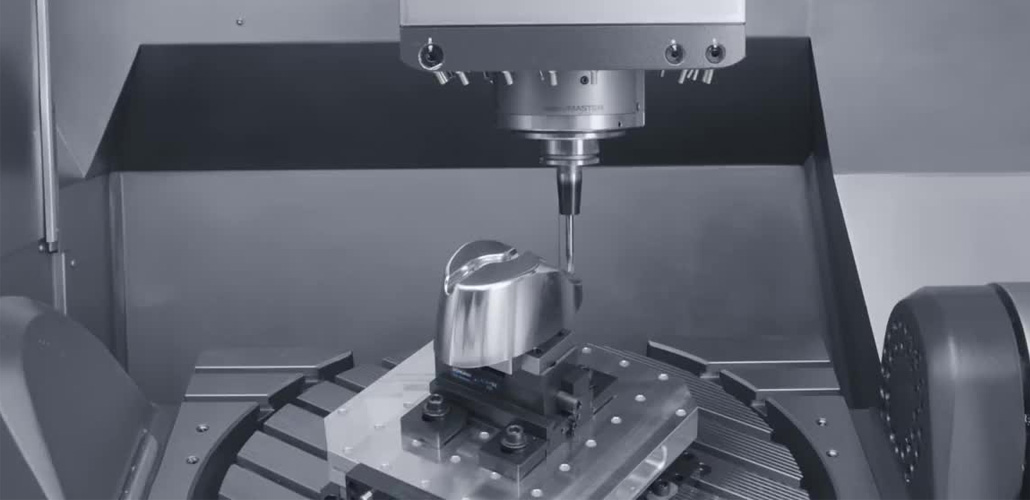

Through coordinated motion of the B-axis and C-axis, Aerospace CNC Milling enables continuous, dynamic adjustment of tool orientation in three-dimensional space. In aircraft engine blade machining, for example, the spindle tilt angle and rotational speed can be synchronized to maintain the optimal cutting angle throughout the process. This allows blade roots, blade tips, and internal cooling channels to be machined in a single setup, reducing cumulative positioning errors to within ±0.005 mm.

After adopting 5-axis machining, one aerospace manufacturer reduced turbine disk machining time by 45%, achieved a surface roughness of Ra 0.4 μm, and significantly enhanced the component’s high-temperature performance and fatigue resistance.

Why Is 5-Axis Machining Service Suited for Aluminum and Titanium Alloys

To address the common issue of tool adhesion when machining titanium alloys, 5-axis machining is often combined with high-speed cutting (spindle speeds exceeding 10,000 rpm) and minimum quantity lubrication (MQL), effectively reducing heat accumulation in the cutting zone. Advanced CAM software further optimizes toolpaths using circle-segment (barrel) finishing strategies, where the large effective radius of tapered barrel cutters maintains continuous surface contact. In this way, the step size can be increased from 0.1 mm to 2 mm.

Compared to four-axis machining, efficiency can be improved by 60%. In the machining of complex 7075 aluminum aerospace connector rings, the combination of dynamic roughing and barrel finishing increased material removal rates by 35%, reducing single-part machining time to just 10 hours.

Advantages of five-axis machining

Modern 5-axis CNC machines integrate geometric error compensation, thermal compensation, and dynamic compensation systems, enabling real-time correction of spindle thermal deformation, vibration, and load variations. In one case involving titanium orthopedic plates, a manufacturer employed a 5-axis system equipped with six-axis force feedback and in-process inspection, dynamically adjusting cutting parameters during machining.

As a result, the yield rate for complex porous structures increased from 82% to 98%, ensuring zero damage to critical medical-grade titanium materials.

Key Aerospace Applications of 5-Axis CNC Machining

5-axis machining service is now widely adopted across the aerospace and high-precision manufacturing sectors:

• Turbine Components:Machining time reduced by 45%, mirror-level surface finishes achieved, and high-temperature resistance improved by 20%.
• Aircraft Structural Parts:Deep-cavity machining efficiency increased by 40%, dynamic balance optimized, and overall weight reduced by 18%.

Conclusion

From turbine disks to orthopedic implants, from engine housings to spacecraft skins, 5-axis CNC machining is redefining the manufacturing logic of aerospace components with micron-level precision. It effectively resolves the long-standing “impossible triangle” of accuracy, efficiency, and cost, while accelerating the shift of advanced manufacturing toward high-end, intelligent, and digital production.

LVMA's Aerospace CNC Milling service is also gradually adopting AI-driven toolpath optimization and hybrid additive-subtractive manufacturing to provide the global aerospace industry with more powerful, intelligent, and competitive solutions.
