Two-Shot Injection Molding: Complete Guide to Dual-Color Plastic Manufacturing

Two-shot plastic injection molding technology revolutionizes plastics manufacturing by fusing two different materials or colors within the same injection cycle. This advanced technology enables the creation of durable, aesthetically pleasing, and highly functional products. Whether you are designing consumer electronics, automotive parts, or medical devices, understanding two-color injection molding technology can significantly improve product quality and production efficiency.

What is Two-Shot Injection Molding?

Two-shot injection molding, also known as dual-shot or 2K molding, is an innovative manufacturing process that injects two different plastic materials or colors into the same mold. This technique allows manufacturers to produce plastic components with two distinct colors, creating regular patterns or irregular marbled effects that enhance both the functionality and visual appeal of finished products.

How Two-Shot Injection Molding Works

Mixed-Color Two-Shot Molding Process

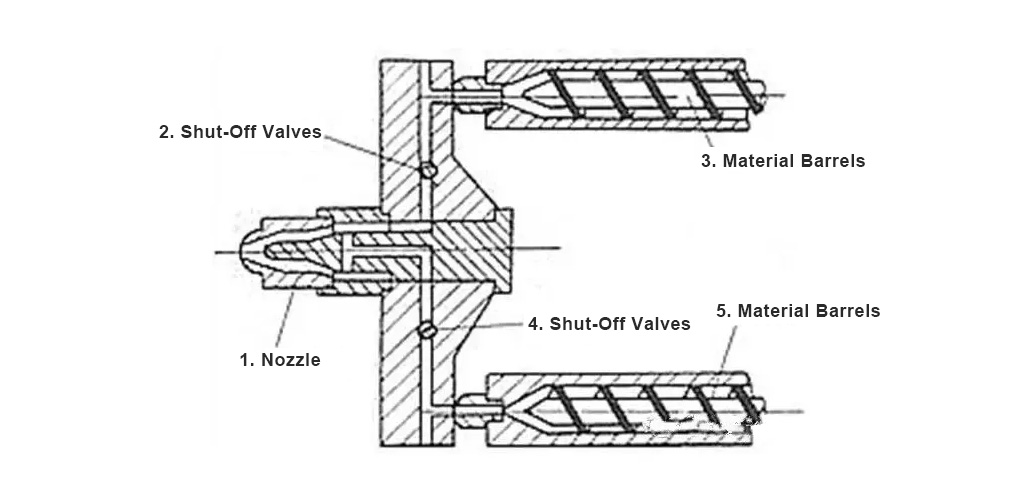

The mixed-color Two-Shot Plastic Injection Molding system features two separate material barrels, each functioning identically to standard injection molding barrels. Each barrel has its own independent channel connected to the nozzle, with shut-off valves (valves 2 and 4) installed within the nozzle passages.

During the molding process, the plastic material is plasticized in each barrel. The shut-off valves control the sequence and proportion of material entering the nozzle, which then injects the combined materials into the mold cavity. This process creates plastic products with various mixed-color effects tailored to design specifications.

Patterned Two-Shot Molding Mechanism

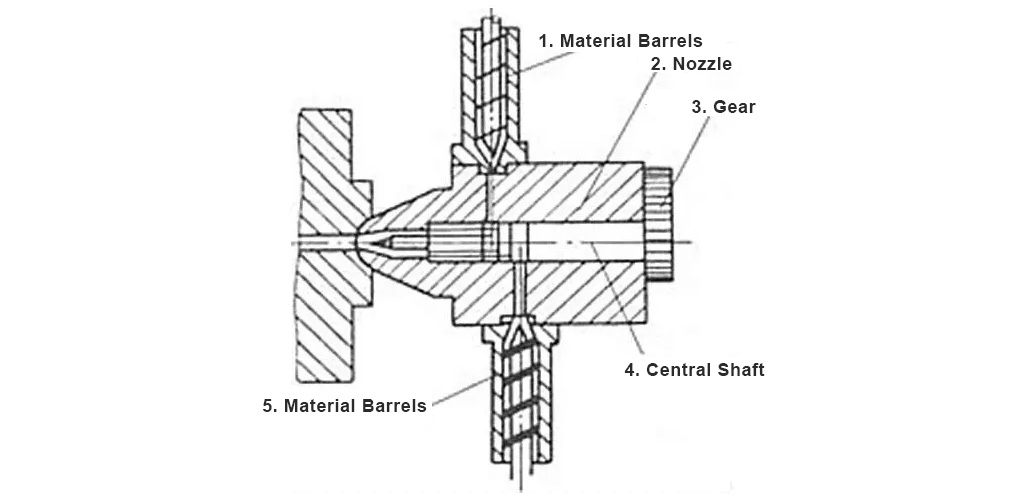

Patterned 2-Shot Plastic Injection Molding also utilizes two material barrels (1 and 5), but features a specialized nozzle design. Beyond standard nozzle functions, this configuration includes a gear mechanism (3) mounted at the rear that drives rotational movement.

During molding, barrels 1 and 5 plasticize different colored materials separately. Gear 3 rotates the central shaft (4), causing the different colored materials to alternately enter the mold cavity. This creates plastic products with radial color patterns and designs that emanate from the center outward.

Two-Shot Injection Molding Material Requirements

Material Compatibility Criteria

Compatible material pairs must satisfy two essential conditions:

• Adhesion Compatibility: The two materials must bond effectively at their interface without delamination or separation.
• Processing Compatibility: Melting points, shrinkage rates, and other processing characteristics must be compatible for successful molding.

Common material combinations include:

• Hard-Soft Combinations: First shot typically uses PC/ABS (hard), second shot uses TPU/TPE (soft), with melting points ideally differing by approximately 60°C.
• Transparent + Opaque: First shot uses opaque PC, second shot uses transparent PMMA, commonly applied in lens and decorative components.

Processing and Design Considerations

1. In hard-soft dual-shot structures, the hard plastic component should have a thickness of 0.6-0.7mm, while the soft plastic should be at least 0.4mm thick.
2. Design grooves or "overmolding" structures at contact surfaces to enhance bonding strength between materials.
3. Generally, inject the hard plastic first, then the soft plastic, to prevent deformation of the softer material.

Two-Shot Mold Design Requirements

Two-shot molds typically require:

• Core (male mold) consistency with identical specifications, while the cavity (female mold) contains two different cavity designs.
• 180-degree rotation capability with precise alignment to ensure proper mold closure.
• Comprehensive consideration of sealing strength, runner design, balanced cooling systems, and thermal management.
• In most applications, the hard component is molded first, followed by the soft or transparent component.

Conclusion

2 Shot Injection Molding Services offers manufacturers a competitive advantage through reduced assembly costs, improved product durability, and enhanced design flexibility. By mastering material compatibility, mold design, and process parameters, you can leverage this technology to create innovative, high-quality products that stand out in today's competitive marketplace.
