The Ultimate Guide to CNC Machining: 8 Basic Operating Steps

CNC machining centers are core mechanical processing equipment with strong performance and wide applications. To ensure accuracy and avoid errors, operators must master basic procedures. This article details 8 basic operating steps, suitable for beginners and experienced technicians.

Pre-Startup Preparation for CNC Machine Tools

For CNC Machined Parts Manufacturers, the preparatory work before startup is an important step to ensure the safety of the equipment and improve its accuracy. After startup, feed stop or reset, first perform machine reference zero return to establish a unified benchmark and avoid dimension deviations.

Workpiece Clamping

Workpiece clamping quality affects accuracy directly. Prior to clamping, clean and preprocess the workpiece and tools, then follow specifications for proper clamping.

• Clean the workpiece surface to remove debris and oil, then polish burrs with a file or oilstone to prevent positioning deviation.
• Use precision-ground equal-height iron; inspect code iron and nuts. Clamp difficult workpieces with a vice for reliability.
• Keep the workbench clean. Place equal-height iron at the workpiece’s four corners; add more for large-span workpieces to avoid deformation.
• Place the workpiece as required, calibrate the reference surface with a dial gauge, tighten nuts, and recheck to ensure clamping error is within limits.
• Check the workpiece’s length, width and height with a tape measure to confirm it meets drawing requirements.

Workpiece Touching

Workpiece touching determines the processing zero position (X, Y, Z axes) using a photoelectric or mechanical probe, with centering and single-side methods (centering is more common).

• Debug the probe: keep the photoelectric one stationary; set the mechanical one to 450-600 ipm.
• For X-axis zero: touch both sides of the workpiece, calculate the midpoint, set it as zero, record the coordinate in G54-G59, and recheck.
• Set the Y-axis zero position using the same method as the X-axis to ensure accuracy.

For single-side touching, offset the coordinate by the probe's radius to get zero. Record the coordinate in G54-G59 and visually recheck the zero position.

Workpiece CAM Software Programming

Programmers use CAM software (e.g., UG) to generate tool paths, conduct interference checks, generate CNC code, and transmit it to the workshop for machining.

Prepare All Tools According to the Programming Work Instruction

Install tools as instructed. Touch the height gauge with the tool, set the coordinate to zero, move it down 50mm, and reset to zero (Z-axis zero).

Record the Z-axis mechanical coordinate in G54-G59 to complete X, Y, Z zero setting. Double-check the data for accuracy.

Setting of Machining Parameters

In the custom CNC machining, the setting of spindle speed and feed speed directly affects processing efficiency and quality. The specific calculation formulas are as follows:

Spindle speed setting

N = 1000 × V / (3.14 × D)

• N: Spindle speed (rpm/min)
• V: Cutting speed (m/min)
• D: Tool diameter (mm)

Machining feed speed setting

 F = N × M × Fn

• F: Feed speed (mm/min)
• M: Number of tool edges
• Fn: Tool cutting amount (mm/rev)

Per edge cutting amount setting

Fn = Z × Fz

• Z: Number of tool edges
• Fz: Cutting amount per edge of the tool (mm/rev)

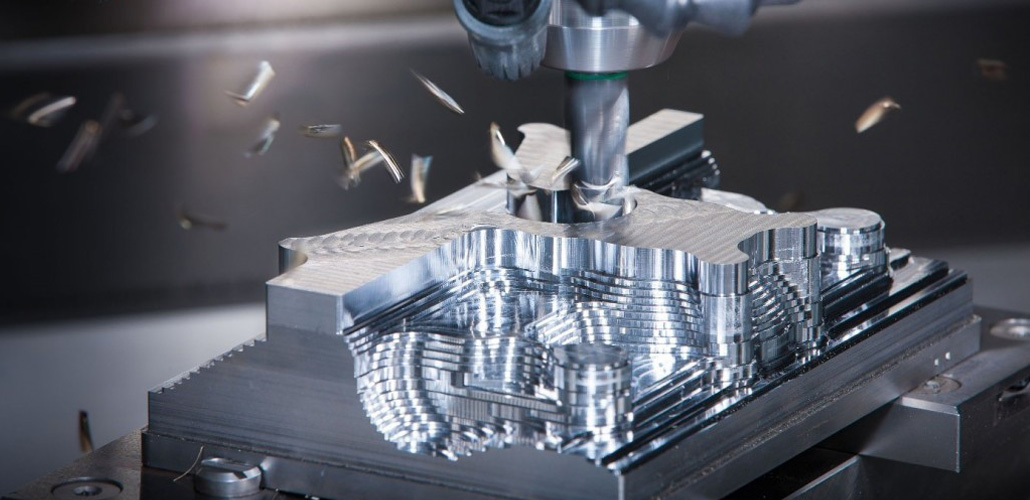

Start Machining

Check tools before starting CNC machining. Set feed speed to minimum, focus on operation, and keep hands on the stop button. Add cutting fluid after safe feeding. Stay near the control panel during rough machining. Recheck with a dial gauge after roughing; optimize parameters continuously for better results.

After machining, measure dimensions against the drawing. Report problems promptly; unload and send for inspection only after passing self-inspection.

Key points for common machining types:

• Hole machining: Position with a center drill, drill with a smaller bit, then finish drill to size.
• Boring: Position, drill small, rough bore, then finish bore with ≥0.1mm final allowance.
• Reaming: Position, drill small, then ream; control spindle speed at 70-180 rpm/min.
• DNC operation: Clamp workpiece, set zero and parameters, transmit program, and start machining.

Common machining types and key points

• Hole machining: Position with a center drill, drill with a smaller bit, then finish drill to size.
• Boring: Position, drill small, rough bore, then finish bore with ≥0.1mm final allowance.
• Reaming: Position, drill small, then ream; control spindle speed at 70-180 rpm/min.
• DNC operation: Clamp workpiece, set zero and parameters, transmit program, and start machining.

Self-Inspection Scope and Content for Processing Personnel

Before machining, read the process card to understand workpiece requirements and subsequent processing content. Check blank size before clamping; ensure workpiece placement matches the programming instruction.

Self-inspect after rough machining to adjust errors timely, focusing on the position dimensions of processed parts. Finish machining after rough inspection. Self-inspect shape/dimensions, then unload and send for special inspection if qualified.

Conclusion

This article provides a clear, step-by-step overview of the CNC machining process, covering machine preparation, workpiece clamping, zero setting, CAM programming, tool setup, parameter calculation, machining execution, and inspection. It helps operators improve machining accuracy, efficiency, and process consistency in daily CNC production.

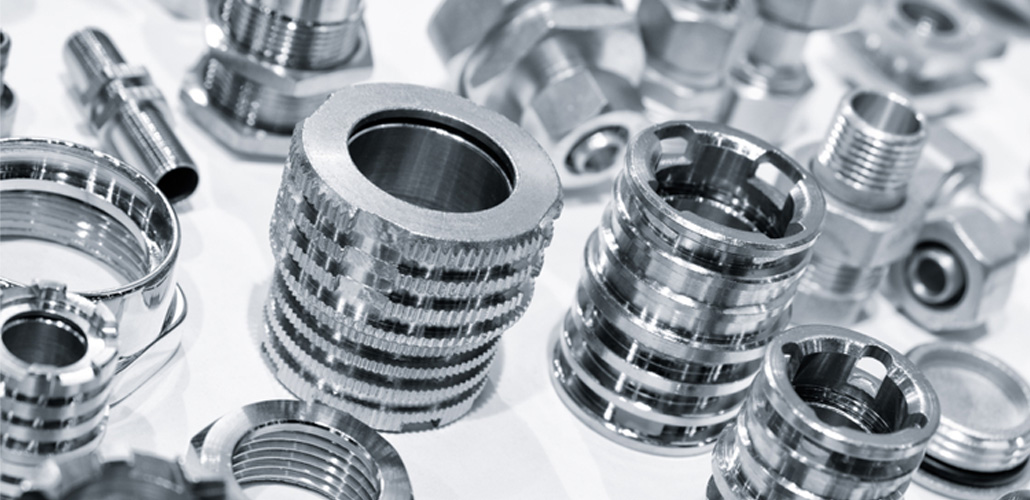

LVMA is a professional CNC Machined Parts Manufacturer specializing in high-precision custom components for global industries. With advanced CNC equipment, experienced engineers, and strict quality control, LVMA delivers reliable custom cnc machining services, stable production capacity, and consistent quality for complex machined parts.
