The Low-Volume Injection Molding Guide

Discover how Low Volume Injection Molding Services can accelerate your product development without the high costs of traditional tooling. This guide explores materials, mold types, design tips, and how Low Volume Injection Molding Companies like LVMA deliver high-quality parts fast — from prototyping to short-run production.

Getting plastic parts manufactured in small quantities has historically been an expensive headache. Traditional injection molding demands significant upfront investment in hard steel tooling, making it impractical unless you're producing tens of thousands of parts. That reality is changing fast. Advances in mold materials, digital quoting platforms, and agile manufacturing systems have made low-volume injection molding more accessible than ever — giving product teams the freedom to test, iterate, and launch without betting everything on a single tooling decision.

What Is Low-Volume Injection Molding?

Low-volume injection molding refers to producing plastic parts in quantities typically ranging from 100 to 10,000 units. It sits between early-stage 3D printing and full-scale mass production, serving teams that need real injection-molded parts — with proper materials and tolerances — but aren't yet ready to commit to high-volume steel tooling.

The process itself mirrors high-volume injection molding: plastic pellets are melted, injected into a mold cavity under pressure, cooled, and ejected as finished parts. The key difference lies in the tooling. Low-volume runs typically use softer mold materials and smaller machinery, resulting in lower upfront costs and faster turnaround times.

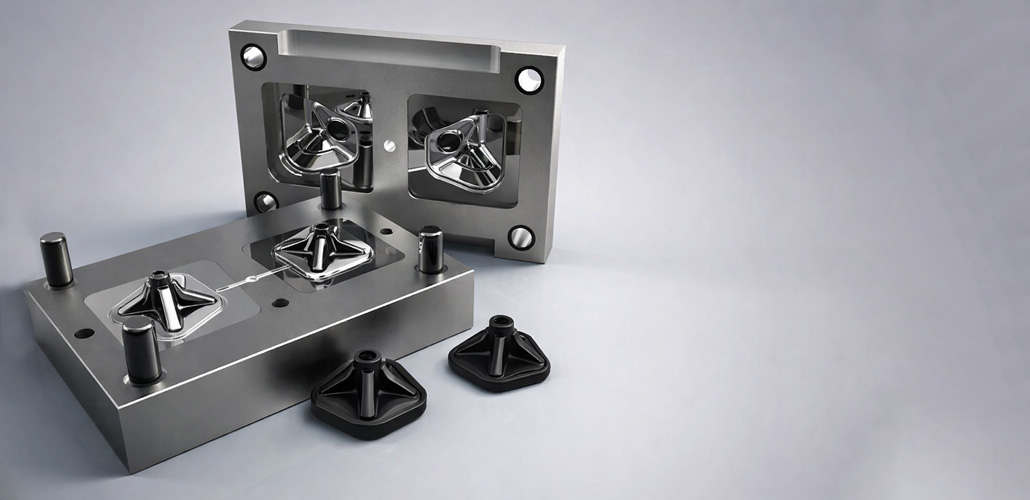

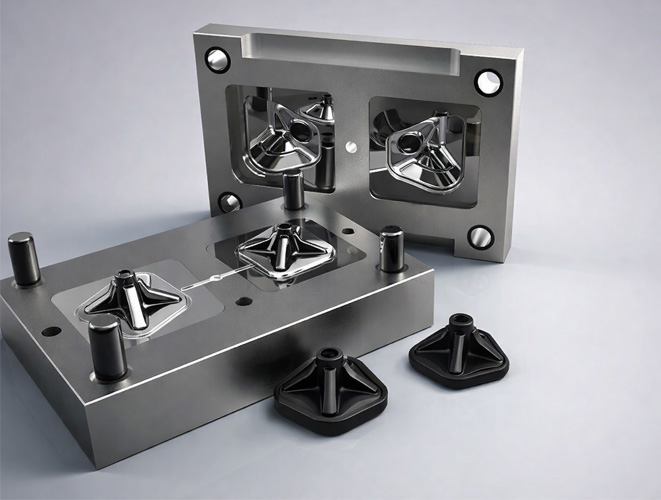

Mold Material Options: 3D Printed, Aluminum, and Steel

3D Printed Molds

For very short runs under 500 parts, 3D printed polymer molds — particularly those made with stereolithography (SLA) — offer a compelling entry point. These molds can be produced in under 24 hours at a fraction of the cost of machined tooling. They work with a wide range of thermoplastics including TPE, PP, ABS, and PC, and can be used with both desktop and industrial injection molding machines.

That said, polymer molds have real limitations. They transfer heat more slowly than metal, extending cooling time. They're also more susceptible to wear under high injection pressure, which shortens their usable lifespan compared to metal alternatives.

Aluminum Molds

Aluminum molds hit a practical sweet spot for mid-volume runs between 500 and 10,000 parts. Aluminum machines five to ten times faster than steel, reducing both lead time and tooling cost. It also conducts heat more efficiently, which supports shorter cycle times without complex cooling channel designs.

Aluminum molds typically support tolerances down to ±0.005 inches — sufficient for many functional applications. However, they wear faster when used with abrasive or corrosive resins, such as glass-filled nylon or PVC.

Steel Molds for Low-Volume Production

Contrary to the common assumption that steel is only for high-volume runs, soft and semi-hardened steels like P20 and NAK80 offer an excellent balance of cost and performance for lower-volume projects. These materials are harder than aluminum, enabling tighter tolerances (as tight as ±0.001 inches), finer surface finishes, and better resistance to abrasive materials.

Steel molds take longer to produce than aluminum, but they maintain temperature more consistently — which is critical when molding engineering-grade resins like polycarbonate. For projects requiring dimensional precision across complex assemblies, the investment in a steel low-volume mold often pays off.

Key Design Considerations

Designing well for injection molding — at any volume — requires attention to a few fundamental principles. Getting these right reduces defects, shortens lead times, and keeps part costs in check.

• Wall thickness: Keep walls between 1mm and 3.5mm for most thermoplastics. Walls that are too thick cause sink marks and warping; walls too thin risk incomplete fill and short shots.
• Draft angles: Add taper to vertical walls so parts release cleanly from the mold without drag or distortion.
• Radii on internal corners: Sharp internal corners create stress concentrations. Generous radii improve structural integrity and are easier to machine.
• Surface finish: Only specify the finish your application actually requires. High-polish finishes like SPI-A2 significantly increase mold cost.
• Gate and ejector pin placement: Locating these features correctly prevents cosmetic defects and ensures consistent ejection.

Undercuts — features that prevent straight pull from the mold — require additional mechanisms such as hand loads, sliders, or lifters. Hand loads cost less and work well for low-volume runs, as the cycle time impact is less significant at smaller quantities.

When to Use Low-Volume Injection Molding

Prototype Validation with Real Materials

3D printing is the right tool for early-stage prototyping, but it has a ceiling. 3D-printed plastic parts don't replicate the mechanical properties or surface characteristics of injection-molded equivalents. When your design is mature and you need parts for field testing, first article inspection (FAI), or beta programs, injection molding with the actual production material is the right call.

Bridge Tooling

Bridge tooling allows companies to start producing revenue-generating parts while high-volume steel tools are being built. A low-volume mold can run thousands of parts in the interim, keeping customers supplied and generating cash flow without delaying the product launch.

Short-Run and Custom Production

Not every product needs to be made in the hundreds of thousands. Specialized industrial components, medical devices, and custom end-use parts often have inherently limited demand. Low Volume Injection Molding Services make it economically viable to manufacture these parts without the overhead of high-volume tooling investment.

Choosing Among Low Volume Injection Molding Companies

Selecting the right manufacturing partner for a low-volume project is about more than price. The depth of design for manufacturability (DFM) support, tooling quality, material range, and delivery reliability all matter. Low Volume Injection Molding Companies vary significantly in how they handle these factors.

At LVMA, we've been manufacturing precision components since our production base was established over 20 years ago. Since formalizing our export trade operations in 2018, we've focused on integrating injection molding with complementary processes — CNC precision machining, cold heading forging, and stamping — to offer customers a single source for complex, multi-process parts. We work with a broad range of materials including engineering thermoplastics, copper, aluminum, zinc, and iron, serving sectors from electrical components to automotive and furniture hardware.

Our approach to low-volume projects emphasizes upfront DFM review, consistent process documentation, and tolerance control from the first shot. For clients scaling toward higher volumes, our tooling documentation and process parameters transfer seamlessly into higher-volume production planning.

Runner Systems and Process Parameters

Two runner system types are common in low-volume injection molding. Hot runner systems maintain molten plastic throughout the delivery channels, reducing material waste and pressure variation. They cost more upfront but improve consistency — valuable when part geometry is complex.

Cold runner systems are simpler and less expensive, but they generate more material waste per cycle. For low-volume projects where cycle count is modest, the cost-effectiveness of cold runners often makes them the practical choice. The decision ultimately depends on part geometry, material, and volume.

Supply Chain and Inventory Flexibility

One overlooked advantage of working with Low Volume Injection Molding Services is supply chain agility. On-demand production — without minimum order quantity (MOQ) constraints — allows teams to order parts as demand dictates rather than holding excess inventory. This approach reduces warehousing costs, limits exposure to demand volatility, and provides a buffer when large-scale tooling requires maintenance or repair.

For global product teams, having a reliable low-volume production partner also mitigates the risk of supply disruption. Components can be produced regionally or diversified across suppliers without retooling costs.

Conclusion

Low-volume injection molding bridges the gap between early prototyping and full-scale production — and it's more accessible than most product teams realize. Whether you're validating a mature design with real materials, running a limited production series, or bridging into high-volume tooling, the right mold material and manufacturing partner make all the difference.

From 3D printed polymer molds for sub-500-part runs, to aluminum tooling for mid-volume projects, to semi-hardened steel for tighter tolerances and longer tool life, each approach has its place. The key is matching your mold choice to your actual volume, timeline, and tolerance requirements.

At LVMA, our integrated production capabilities — spanning injection molding, CNC machining, and precision forming — allow us to support customers through every stage of that journey. If you're evaluating Low Volume Injection Molding Companies for an upcoming project, we'd welcome the conversation.
