Sheet Metal Fabrication Guidelines: Key Rules You Should Know

Sheet metal fabrication stands as one of the most widely used manufacturing processes, and it may appear simple at first glance. In real-world production, however, projects rarely go exactly as planned. Common challenges include bending cracks, misaligned holes, and confusing technical drawings that disrupt shop floor operations. More often than not, these costly production issues stem from poor choices made early in the sheet metal design phase.

The following steps outline the proven approach used by LVMA engineers and shop floor technicians to handle real-world projects, with a core focus on eliminating rework, reducing delays, and keeping sheet metal production running smoothly.

Selecting the Right Material for Sheet Metal Parts

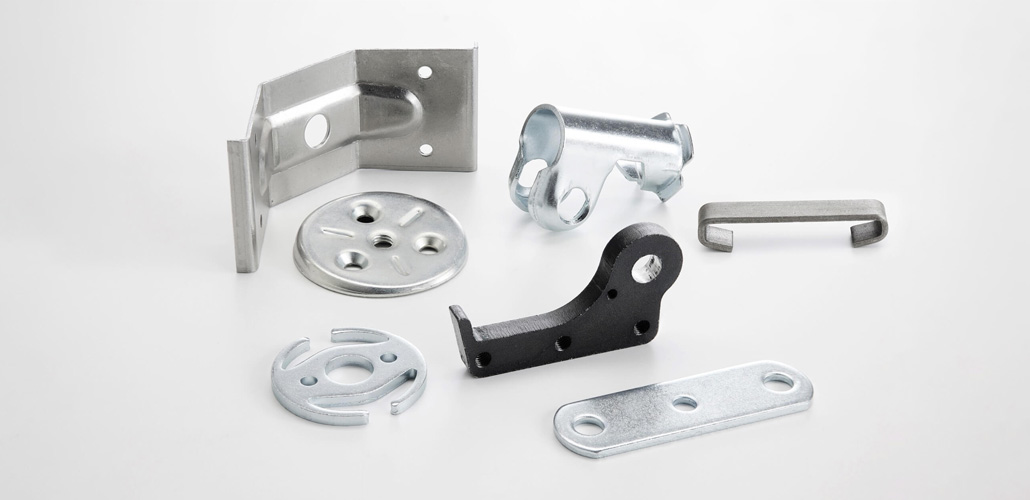

Material selection affects every decision made regarding custom sheet metal parts. Aluminum cuts easily and keeps weight down; stainless steel handles corrosion without coatings; copper is the go-to for electrical applications; titanium earns its place in aerospace where strength-to-weight ratios matter most.

One distinction worth knowing: cold-rolled steel holds tighter bend tolerances than hot-rolled. If your application demands consistency—think precision enclosures or structural brackets—cold-rolled is the safer call.

Sheet Metal Bending Rules

Most bend-related failures come down to three overlooked details:

Minimum bend radius: Keep the inside bend radius at or above the material thickness. Go tighter, and you risk cracking along the bend line.

Springback: Metal rebounds after bending. Cold-rolled materials spring back less, which makes them easier to hit target angles consistently. Factor this into your tooling setup, not just your CAD model.

Flange length: Short flanges deform under bending pressure. Give the press brake enough material to grip, or you'll see distortion at the edges.

Angle tolerance: Angle tolerance for most applications sits at ±1°. Don't tighten that unnecessarily—it adds cost without adding function.

Match Sheet Metal Tolerances with Parts

The instinct to specify tight tolerances everywhere is expensive and usually unnecessary.

Standard references like ISO 2768 cover the majority of applications. For typical sheet metal work:

• Bends: ±0.508 mm (0.020")
• Hole-to-hole spacing: ±0.127 mm (0.005")
• Angularity: ±1°

An automotive door panel doesn't need the same precision as a chassis weld joint. Reserve tight tolerances for features where they genuinely affect fit, function, or safety.

Dimples, Embossments, and Structural Features

Adding stiffness without adding material is a core sheet metal skill. Dimples and embossments do exactly that—they improve rigidity and can create clearance or ventilation without extra parts or weight.

Two rules keep these features from causing problems:

• Minimum wall thickness: 3× the material thickness
• Minimum distance from holes or bends: 3× the material thickness

Violate either, and you create stress concentrations that show up as cracks or distortion during fabrication or in service.

Requirements for Sheet Metal Fabrication Drawings

Technical drawings are where a lot of orders go sideways. A few non-negotiables:

File formats. Send 3D files in STEP format (.step or .stp). If you include 2D drawings (PDF, DWG, DXF), make sure they show the bent shape—not the unfolded flat pattern exported directly from CAD.

Laser marking: If you need part marking or silkscreen, the drawing needs clear outlines, hole positions called out explicitly, and text rendered in double-line format at 0.2mm line width.

Hole spacing: Follow minimum distance rules relative to material thickness. Holes too close to each other or to edges create tooling problems and weaken the sheet metal part.

Key Design Considerations for Sheet Metal Drawings

CNC press brakes and fiber laser cutters have transformed what's achievable in sheet metal part. Fiber lasers handle complex cutouts with tight tolerances and minimal waste. CNC bending ensures repeatable angles across a production run.

But equipment can only work with what the design gives it. A well-designed part running on basic equipment will outperform a poorly designed part on the best machines.

Start Your Custom Sheet Metal Project Today

Sheet metal fabrication rewards upfront discipline. Material selection, bend geometry, tolerance callouts, feature placement, and drawing quality—these aren't bureaucratic checkboxes. They're the difference between parts that work and parts that need rework.

If your designs consistently encounter production issues, then solutions should typically be developed during the design phase. Feel free to contact LVMA anytime, we're happy to provide sheet metal solutions.
