Plastic CNC Machining: Guide to Material Feature and Cutting Method

Engineering plastics are polymer-based materials composed of high–molecular-weight compounds, typically with a relative molecular weight above 5,000. Although their chemical composition mainly includes carbon (C), hydrogen (H), oxygen (O), nitrogen (N), and sulfur (S), their long-chain molecular structure gives them unique mechanical and thermal properties. Plastics are produced using resin as the base material, combined with various additives to enhance performance.

Understanding Plastic CNC Milling requires attention to their thermal sensitivity, elastic behavior, and chip formation characteristics.

Processing Characteristics of Engineering Plastics

Engineering plastics have extremely low thermal conductivity—only about 0.3% of that of metals—and a much higher linear expansion coefficient (2–20 times that of metals). During machining, most cutting heat concentrates at the tool edge. Because heat dissipates slowly within plastic materials, localized overheating can easily occur, leading to deformation, discoloration, melting, or even burning.

Their elastic modulus is only about 1/16 to 1/10 that of metals. Excessive cutting force or clamping pressure can cause significant elastic deformation, affecting dimensional accuracy. Therefore:

• Cutting edges must be very sharp
• Clamping force should be minimized
• Cutting force should remain moderate

Although plastics are relatively easy to machine due to their lower hardness and strength, improper parameter selection may quickly damage surface quality.

Selection of Milling Cutters

Because of the low strength and heat resistance of plastics, tool geometry plays a critical role.

Recommended features include:

• Large rake angle (25°–30°) to reduce cutting force and temperature
• Larger clearance angle (18°–20°) to minimize friction
• Two-flute end mills for better chip evacuation

Tool materials commonly used include TiN-coated high-speed steel and K-type carbide (such as YG6, YG8). For mass production, diamond-coated tools offer superior wear resistance and longer service life.

When cutting plastic sheets, slitting saw cutters with fewer teeth and smooth, wide chip grooves are preferred to ensure efficient chip removal.

Cutting Parameters for Plastic Milling

Since plastics soften easily under high temperatures, relatively low cutting speeds are recommended to prevent chip adhesion. At the same time, due to their lower material strength, larger feed rates and moderate depths of cut can be applied to improve efficiency while reducing friction time.

The key objective in plastic milling operations is balancing cutting speed and feed rate to control heat while maintaining productivity.

Practical Milling Methods

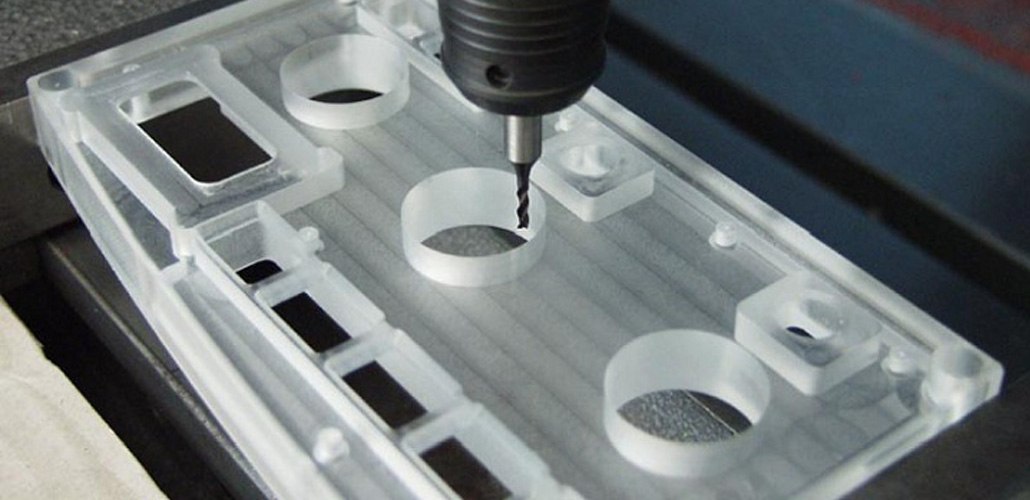

For Plastic CNC Milling Parts, especially thin-walled components, multi-point light clamping should be used to prevent deformation. Dedicated fixtures are preferable to general vises.

When milling thin sheets (1–15 mm thick):

• Keep clamps close to the machining edge
• Use smaller diameter cutters
• Limit radial depth of cut
• Avoid excessive feed speed

Climb milling (down milling) is strongly recommended, particularly when machining edges or contours. It helps reduce chipping and edge breakage.

For face milling, it is advisable to move from the outer edge toward the center using circular tool paths. Feed rate should be reduced near the end of the cut to avoid sudden fracture and surface defects.

For highly ductile plastics such as PTFE, extremely sharp tools and smaller feed per tooth (especially near finishing) are required to minimize burr formation.

Cooling and Chip Control

During high-speed machining, plastic chips may partially melt and adhere to the cutting edge. To prevent chip clogging and unstable cutting, emulsified coolant should be used to reduce temperature and improve chip evacuation.

Conclusion

Plastic CNC Milling differs significantly from metal machining. Temperature control, sharp tool geometry, proper clamping, and optimized cutting parameters are essential to achieving high dimensional accuracy and surface quality. By carefully managing heat and deformation, manufacturers can ensure stable and efficient production of precision plastic components.
