Injection Molding Design Guide: Structural Strength

In my last article, I covered why avoiding acute angles matters in plastic part design — sharp corners are stress risers that quietly undermine your part's integrity. Today, I want to go deeper into two areas that I find engineers struggle with most: how to actually build strength into a plastic part and how to keep cosmetic defects from ruining an otherwise solid design.

If you're serious about design for manufacturing injection molding part, structural integrity are what distinguishes parts that successfully pass through production from those that fail.

Injection Molding Designing for Structural Strength

Add Ribs, Not Wall Thickness

The first instinct when a part isn't strong enough is to thicken the wall. I get it — it feels like the obvious fix. But in injection molding, it's usually the wrong one.

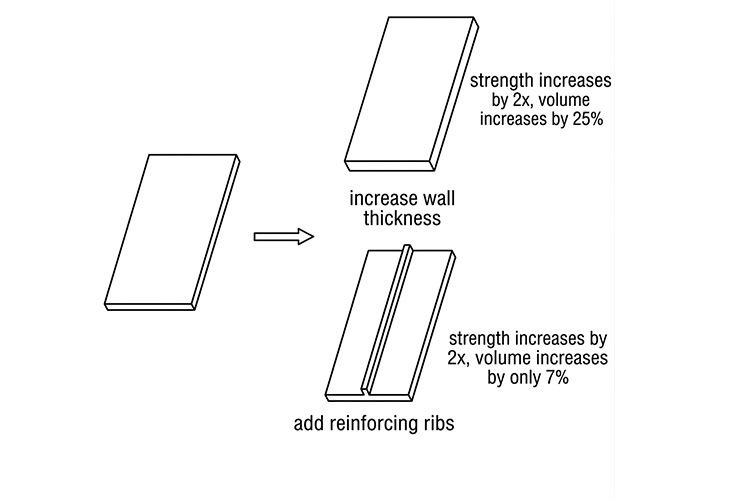

Thicker walls mean more material, longer cycle times, and a much higher risk of sink marks and voids. The smarter move is to add ribs. To double a part's stiffness, increasing wall thickness requires about 25% more material volume. Adding ribs achieves the same result with only 7% more material. That's a significant efficiency difference — and it's why proper rib design is a cornerstone of any serious injection molding design guide.

One important caveat: ribs aren't cosmetically invisible. Any rib you add will cause some degree of surface shrinkage on the opposite face. If appearance is critical, you may need to weigh thickening the wall against adding ribs on a case-by-case basis.

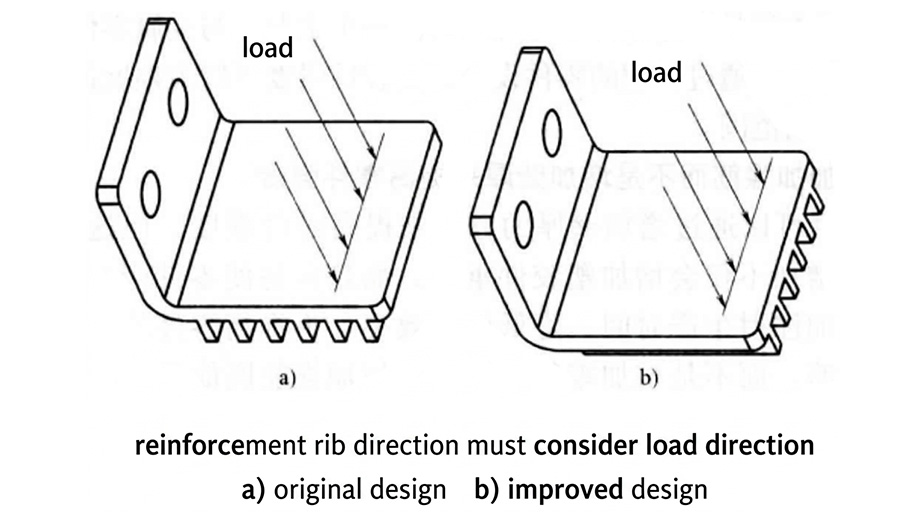

Rib Direction Must Match Load Direction

Ribs only strengthen a part in one direction — the direction they resist. If your rib orientation doesn't align with the applied load, it contributes almost nothing structurally.

[图3-47: 加强筋方向与载荷方向的关系示意图]

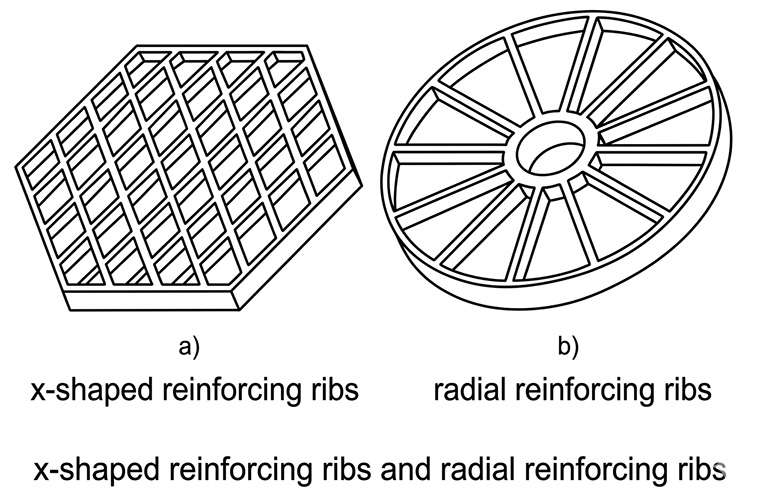

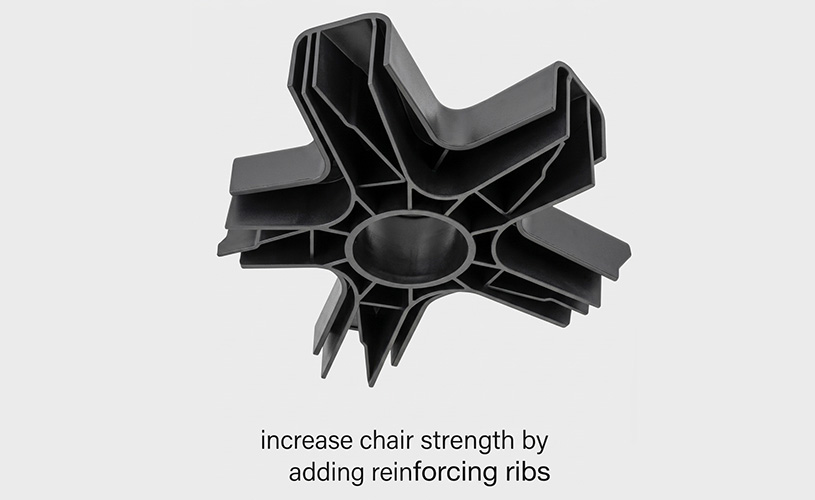

For parts that see multi-directional or torsional loads, X-pattern or radial rib layouts are worth considering. Look at the underside of a plastic stool — that crossed rib pattern isn't decorative, it's doing real structural work.

Multiple Smaller Ribs Beat One Large Rib

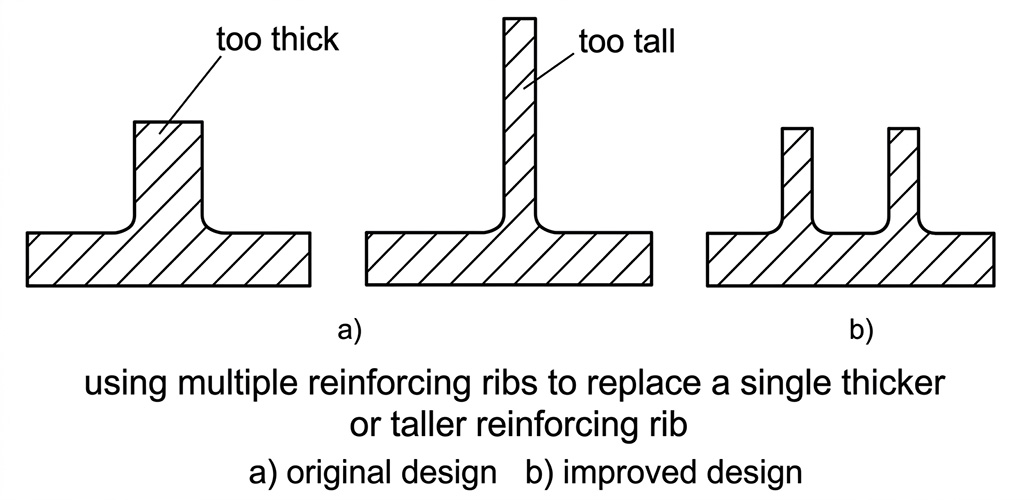

When you need more strength, resist the urge to make a single rib taller or thicker. A rib that's too tall risks short shots at the tip; one that's too thick risks sinking on the show surface. Instead, split it into two or three smaller ribs. You get better strength distribution, cleaner surfaces, and fewer molding headaches.

Cross-Section Profiles Add Stiffness Without Adding Thickness

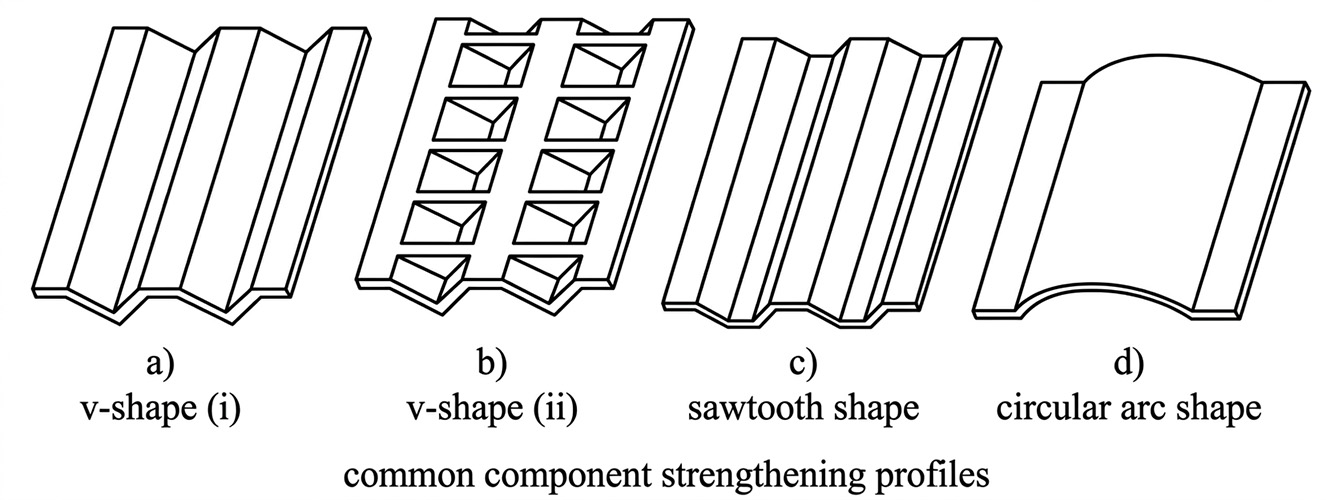

Designing corrugated, sawtooth, or arc-profile cross-sections into a part is another effective way to add rigidity. The tradeoff is that these profiles sacrifice flat surface area — so they won't work everywhere, but in structural panels or enclosures they can be very effective.

Add Sidewalls and Optimize Their Profile

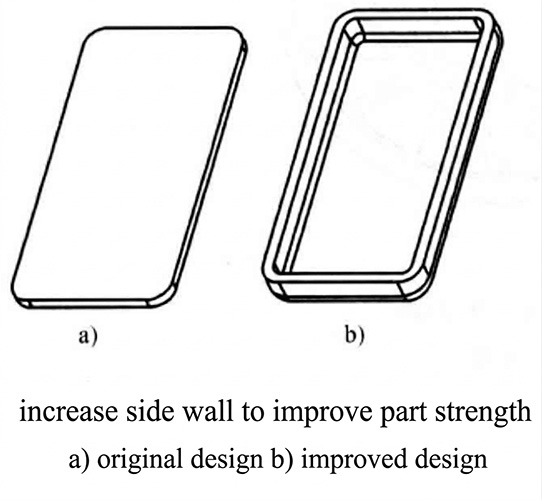

Flat plastic panels are inherently weak. If your design allows it, adding perimeter sidewalls dramatically improves stiffness.

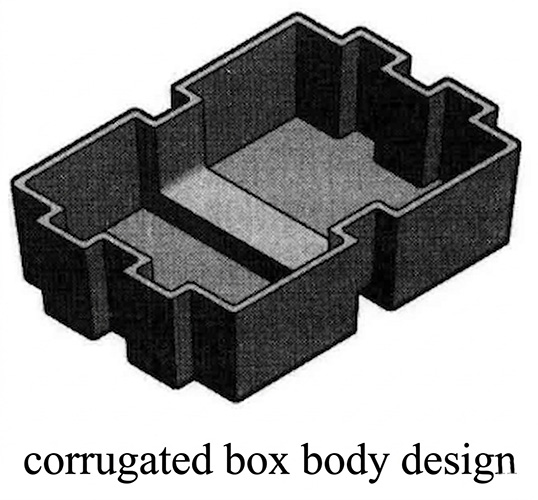

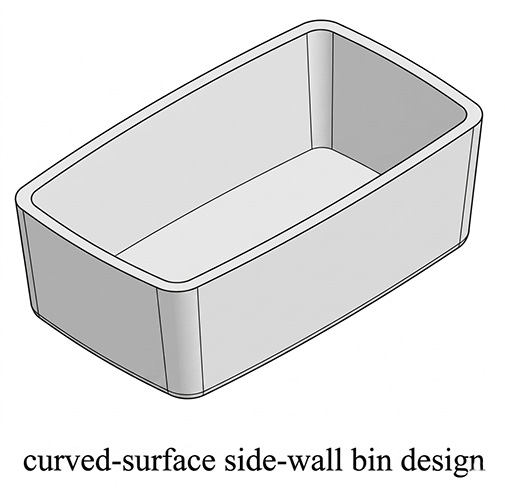

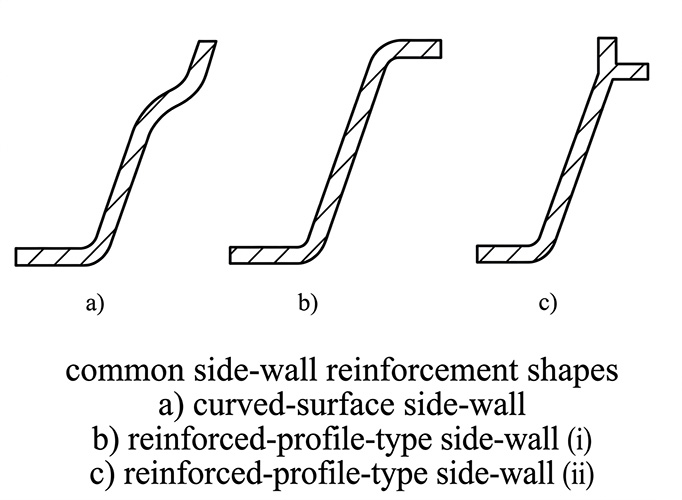

Better yet, curved sidewalls or corrugated sidewall profiles outperform simple vertical walls. I've seen corrugated box designs handle surprisingly heavy loads precisely because of this principle.

Eliminate Stress Concentrations

Stress concentrations are silent failure points. They occur at:

• Sharp internal corners
• Abrupt wall thickness changes
• Holes, slots, and cutouts
• Metal insert interfaces

Under impact loading especially, these are where cracks initiate. Follow the radius and wall transition guidelines from earlier sections of this design guide — they exist for this reason.

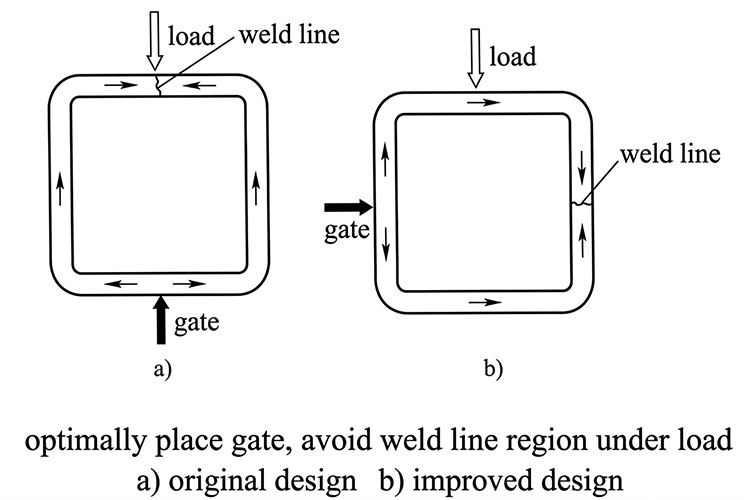

Gate Position Controls Weld Line Location

Weld lines form wherever two flow fronts meet — around holes, at thickness changes, with multiple gates. They are among the weakest zones in any molded part. The key insight is this: you have some control over where weld lines land through gate positioning.

In practice, I always ask mold suppliers for a Moldflow analysis report before cutting steel. Seeing the predicted weld line locations lets you confirm they're away from load-bearing zones. If you're in an early production run, you can also ask the molder to do a short-shot trial — deliberately underfilling the mold to visually locate where weld lines are forming before you commit to the final gate design.

Other Strength Considerations

A few additional factors worth keeping in mind:

• Glass fiber reinforcement improves strength, but only along the fiber orientation — and higher GF content can make parts more brittle. With materials like glass-filled PP, a part might pass a stiffness test but crack under impact where an unfilled grade would merely deform. "Stronger" isn't always "better" depending on your test criteria.
• Plastic parts resist compressive loads better than tensile loads — design with this in mind.
• Under tensile loading, keep cross-sections consistent to distribute stress evenly.
• Avoid hoop stress at cylindrical features and inserts — this is a common cracking failure mode.
• Under impact loading, eliminate notches and stress risers from the load path.

Conclusion

We have explored how to enhance the strength of injection-molded parts by optimizing their design. In the next article, Next, I will explore an issue that is equally critical from a practical standpoint: how to avoid cosmetic defects in injection molding.
