Injection Molding Design Guide: Concepts and Draft Angles

Draft angle refers to a compensatory angle incorporated into the side walls of a part—oriented in the direction of mold release—during the mold design process. Its purpose is to facilitate the smooth extraction of the product from the mold cavity. In this article, I will outline the key design considerations regarding draft angles.

If you're coming from a metal machining background, injection molding requires a real mindset shift. This guide walks through the core principle I always come back to, along with the draft angle rules that make or break a plastic part.

What is injection molding ？

After much deliberation, I've come to believe that for newcomers or those coming from outside the industry, this is the most important concept to address first. If your background is purely in metalworking, you'll need to consciously reframe how you think about part design. The logic that applies to machined metal components simply does not carry over to plastic injection molded parts.

More importantly, don't try to push injection molding to its absolute limits by designing parts that are fundamentally impossible to produce. This is a trap I've seen engineers fall into repeatedly.

Some people see that kind of over-engineered complexity as innovation, and they'll push suppliers to manufacture it regardless. But here's the reality: if you can afford that level of tooling and process cost, so can your competitors. Your design will be reverse-engineered and replicated quickly. The effort rarely pays off.

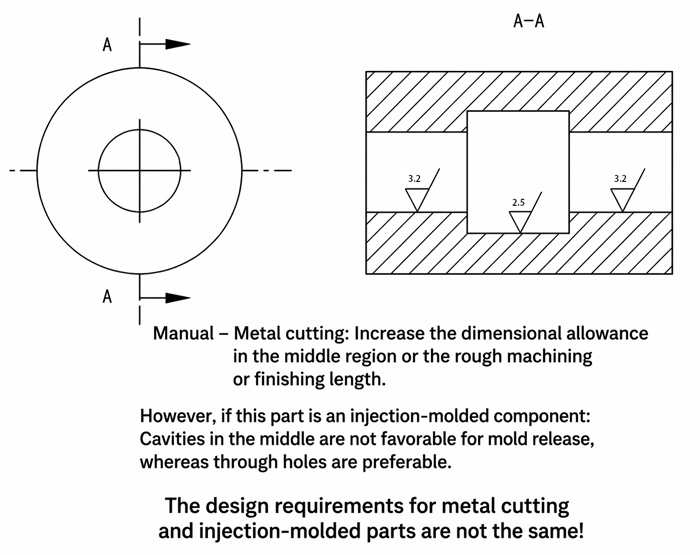

My core principle for plastic part design is this: designing an injection molded part is, fundamentally, designing a shell that can be ejected from its mold. When that idea guides every decision, the design process becomes much clearer.

The part must be able to release from the mold. Everything else flows from that constraint, including wall thickness, ribs, bosses, and surface texture. This is the foundation of Design Of Injection Molded Plastic Parts, and it's what separates a manufacturable design from an expensive problem.

What Is a Draft Angle and Why Does It Matter

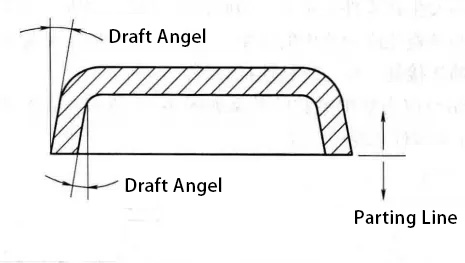

As plastic transitions from a molten state to a solid, it shrinks. This shrinkage causes the part to grip tightly around the mold core and cavity. Without adequate draft angles, pulling the part out cleanly becomes difficult, and you risk scratching or warping the surface on ejection.

Any surface that runs parallel to the direction of mold opening needs a draft angle. This is not optional. It is a basic requirement of the injection molding process.

10 Factors That Determine the Right Draft Angle

• General starting point: Unless there is a specific functional requirement, a draft angle of 1° to 2° is a reasonable default. This is a broad guideline. Always validate against the specific design context and refer to your figures.

• Material shrinkage rate: High-shrinkage materials require larger draft angles. More shrinkage means more grip on the tool, so you need more angle to release cleanly.
• Dimensional precision requirements: High-precision features can use smaller draft angles where dimensional tolerance is critical.
• Core side vs. cavity side: The draft angle on the core (male) side is generally smaller than on the cavity (female) side. This helps ensure the part stays with the ejector side of the tool during mold opening.
• Wall thickness: Thicker walls mean more shrinkage, so increase the draft angle accordingly.
• Textured and complex surfaces: The deeper and more pronounced the surface texture (such as leather grain or stipple), the more draft you need to avoid dragging and tearing during ejection. The texture specification directly determines the minimum draft requirement.
• Glass-fiber reinforced plastics: GFRP materials tend to be more abrasive and stiffer, so use larger draft angles to protect both the part surface and the tool.
• Functional interfaces between moving parts: When two parts have a relative movement relationship, such as a sliding button through a panel, the draft angle direction and magnitude at the mating interface need careful coordination. Misalignment will prevent the parts from working as intended.

Figure 3-28: Button and panel cross-section showing aligned draft angles[Insert cross-section diagram of a consumer electronics button-and-panel assembly, illustrating how aligning the draft angles of both parts improves fit and function]

For example, consider a button on a consumer electronics panel whose function is to trigger an internal switch. The optimized approach is to align the draft angles of both the panel cutout and the button body. When the angles are mismatched, the button either binds during actuation or develops unacceptable play over time.

1. Zero draft is possible, but costly.Some flat surfaces genuinely cannot have draft due to functional requirements. In those cases, the mold requires a side-action sliding core mechanism. This adds mechanical complexity to the tool and increases both tooling cost and lead time significantly.
2. When in doubt, go bigger.Wherever the design and aesthetics allow, maximize the draft angle. Insufficient draft increases the risk of surface damage during ejection, demands a higher level of tool polishing, and often requires a more complex ejector system. All of these factors drive up mold cost.

Practical Draft Angle Reference Values

As a starting reference, not a hard rule: interior surfaces ~0.5°, exterior surfaces ~1°, textured or grained surfaces ~3°.

My personal recommendation is this: as the structural engineer, try to define draft angles on all surfaces yourself before going to the mold maker. For any surface you are unsure about, default to 0.5° and negotiate from there. At minimum, ensure that textured surfaces and critical structural features have their draft angles explicitly called out in the model. In practice, a significant part of structural design work ends up being collaborative negotiation with the tooling team, so get comfortable with that reality early.

Whether you're working on a consumer product enclosure or an industrial component, applying proper draft principles is what separates a design that tools up smoothly from one that causes costly rework. For projects requiring tight tolerances across high-volume runs, working with experienced partners in Customized Precision Plastic Injection Molding makes a measurable difference. They can flag draft issues early and help optimize the design for their specific tooling capabilities.

Summary

Designing injection molded parts starts with one constraint: the part must release from the mold. Draft angles are the most fundamental expression of that requirement. Material shrinkage, surface texture, wall thickness, and functional interfaces all influence how much draft is needed. Getting it right early prevents expensive tooling revisions later. For demanding applications, partnering with specialists in Customized Precision Plastic Injection Molding helps ensure your designs are both manufacturable and cost-effective from day one.

In upcoming articles, I will share key insights regarding snap-fit ​​structures and part wall thickness design. If you would like to learn more about injection molding, please visit LVMA injection molding services or contact LVMA directly; we would be happy to assist you.
