Injection Molding Design Guide: Avoid Acute Angles

In my previous article, I covered Snap-fit and Part Wall Thickness — two of the most critical parameters in injection molding design.In this article, I will discuss the common—but easily overlooked—problem of sharp angles in plastic parts.

Whether you are working with injection molded plastic parts manufacturers on a new product or refining an existing design, understanding how to handle sharp corners is essential to producing parts that are both visually defect-free and structurally sound.

Why Acute Angles Are Problematic in Injection Molding

When designing plastic components, designers should steer clear of sharp corners on both interior and exterior surfaces. Sharp corners are responsible for two major manufacturing and structural issues that compromise part quality and service life.

Flow obstruction: Molten plastic material cannot circulate smoothly around sharp corner structures during injection molding. This uneven material flow commonly results in manufacturing defects including incomplete filling, surface burn marks and flow streaks on finished parts.

Stress concentration: Sharp corners act as structural weak spots on plastic parts. When exposed to impact force or repeated fatigue stress, components are far more likely to develop cracks or suffer structural failure at these corner positions.

The solution to these issues is straightforward: apply rounded fillet radii to all sharp corner features. For injection-molded plastic products, fillet treatment is not an optional design upgrade. Instead, it is a fundamental design standard to guarantee stable production quality and long-term structural durability of parts.

3D Design & Tooling Reminder: Injection molds are fabricated directly based on 3D CAD design files. Any sharp corners retained in the digital model will be fully replicated on the finished mold. It is essential for design engineers to complete fillet optimization in 3D models before mold manufacturing kickoff, to avoid defective tooling and unqualified finished products.

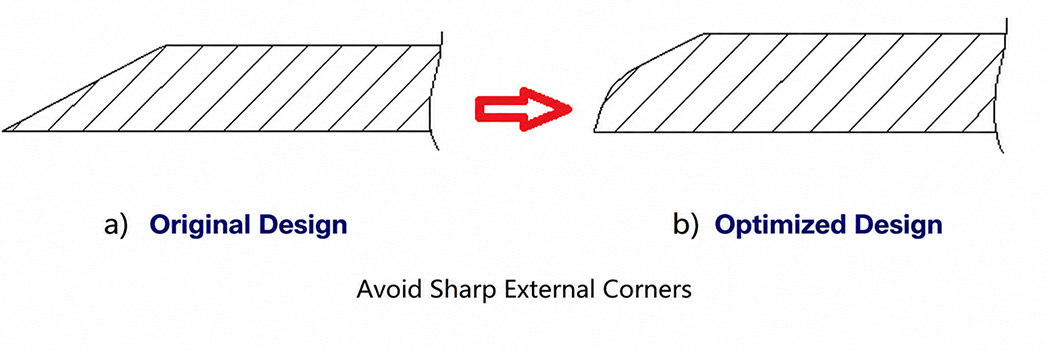

Avoid Sharp Corners on the External Surface of the Part (Except at Parting Lines)

As a general rule, all external edges of a plastic part should be rounded with an appropriate radius.

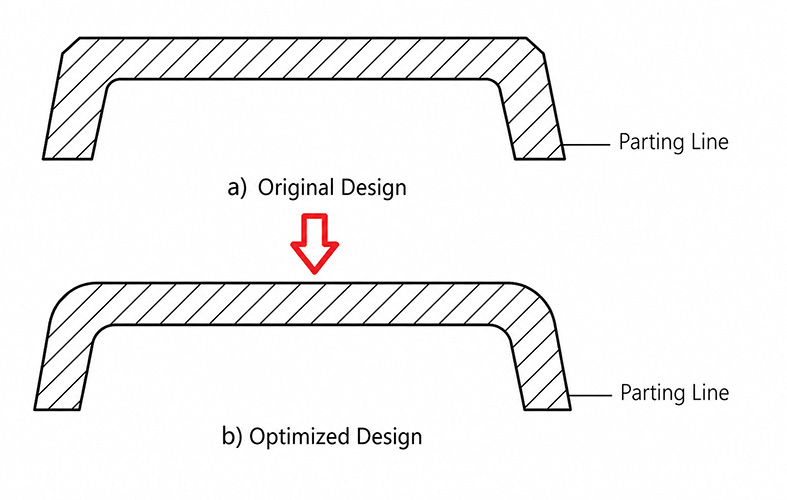

However, there is one important exception: the parting line. Adding a radius at the parting line complicates the mold structure, increases tooling cost, and can create a visible step (mismatch) on the part surface that negatively affects appearance. At the parting line, a sharp (90°) corner is actually preferred.

Additionally, if a flat land of approximately 1.5 mm is added around gate and parting line areas, flash and gate remnants can be removed much more cleanly during post-processing — without damaging the surrounding part geometry.

Avoid Sharp Corners in the Direction of Melt Flow

Sharp corners that face the direction of melt flow are particularly damaging to part quality. As molten plastic flows through the cavity, any sharp corner it encounters can cause:

• Air traps (trapped gas)— leading to burn marks and surface voids on the finished part.
• Localized overheating— causing plastic degradation and discoloration at the sharp corner.
• Residual internal stress— reducing the long-term strength and dimensional stability of the part.

By redesigning sharp corners into smooth radii or tapered transitions aligned with the flow direction, molten plastic travels through the cavity with minimal resistance, producing parts with better surface finish and fewer internal defects. This is a critical consideration for high quality injection molding production.

Avoid Sharp Corners at Wall Junctions

Stress concentration is one of the leading causes of plastic part failure, and it most commonly occurs at wall junctions — where the main wall meets a side wall, a rib, or a boss. Sharp internal corners at these junctions dramatically amplify local stress under load.

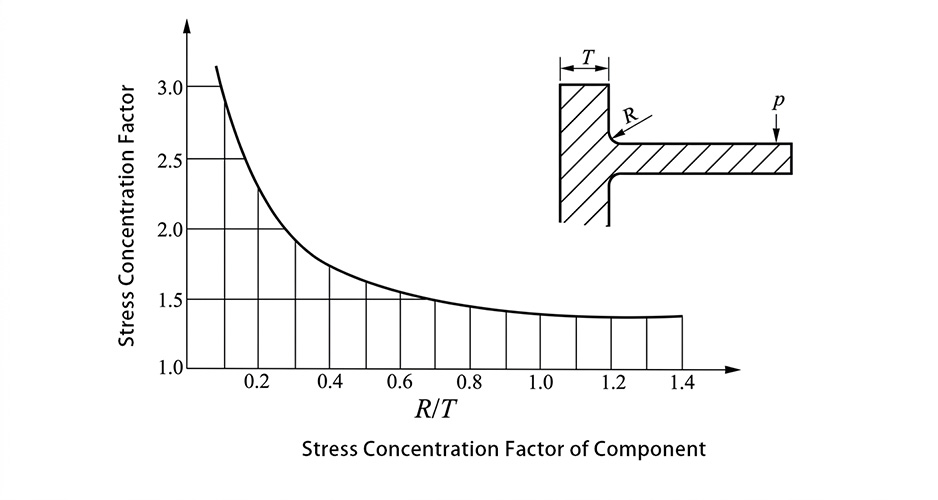

The relationship between internal corner radius and stress concentration factor is well established:

• When R < 0.3T, stress rises sharply — the part is highly vulnerable to cracking.
• When R > 0.8T, stress concentration is essentially eliminated.

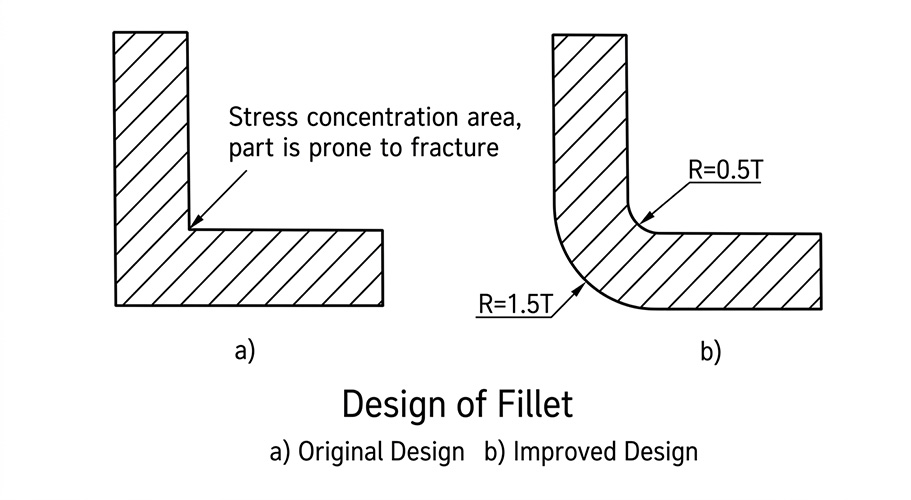

Recommended Fillet Values at Wall Junctions

As a practical guideline for the design of injection molded plastic parts:

• Internal radius (R):5T (minimum 0.3T, maximum 0.8T)
• External radius (r):5T (= R + T, maintaining uniform wall thickness)

where T is the nominal wall thickness of the part.

This combination maintains uniform wall thickness through the junction — preventing sink marks — while effectively reducing stress concentration.

Caution: Do not make fillets excessively large. An oversized radius increases local wall thickness, which can cause sink marks on the opposite surface.

Fillets Also Protect the Mold Electrode During EDM Machining

There is another often-overlooked reason to add fillets in plastic part design: protecting the mold itself.

Electrical Discharge Machining (EDM) is a standard process in mold manufacturing, especially for complex cavity geometries. In EDM, a copper or graphite electrode is used to erode the mold steel. Sharp corners, edges, and protruding tips on the electrode wear significantly faster than flat or rounded surfaces during discharge.

As a result, experienced mold engineers often request that part designers add fillets proactively — because if the 3D model contains sharp corners, the mold shop will add a minimum radius of R0.2 themselves anyway. Building fillets into the design from the start gives the designer control over the geometry and prevents unintended deviations during tooling.

Figure 7: Sharp electrode edges wear faster during EDM — fillets on the part design reduce electrode wear and extend mold life.

This is a detail that distinguishes experienced designers and professional injection molded plastic parts manufacturers from those who treat filleting as an afterthought.

Practical Filleting Workflow in 3D Modeling

Given that external corners, flow-direction corners, and wall junctions all require fillets, the conclusion is clear: every edge on a plastic part model should carry a fillet. Parting line edges can be removed later by the mold engineer if needed.

Recommended Starting Fillet Value: R0.5

For the first pass of filleting on a new plastic part model, R0.5 is a good starting value for most edges. From there, critical edges (such as wall junctions) can be adjusted to meet the 0.5T rule, and visible external edges can be updated to designer-specified values such as R1.0 or R2.0.

Filleting Sequence

Apply fillets in stages — do not attempt to fillet all edges in a single operation. A recommended workflow:

Step 1 — Critical edges first: Apply edge fillets to structurally important edges (wall junctions, rib bases, boss roots) using the 0.5T formula.

Step 2 — Secondary edges: Apply edge fillets to non-critical external edges.

Step 3 — Remaining edges: Use face fillets to handle any remaining geometry that edge fillets cannot resolve.

Note: Use face fillets sparingly — they are harder to control, harder to modify, and can produce unexpected geometry if not applied carefully.

By breaking the filleting process into multiple separate operations, each fillet set remains independently editable. A single all-in-one fillet operation is difficult to troubleshoot or modify when design changes occur.

Final Optimization Pass

Once all fillets are applied at the default R0.5, review the model against the guidelines in this article and adjust values where needed:

• Increase wall-junction fillets to R = 0.5T where T > 1.0 mm.
• Apply larger, visually prominent external fillets (R1.0, R2.0, etc.) to high-visibility edges.
• Confirm that no fillet creates a locally thick section that would cause sink marks.

Following this workflow is one of the most effective habits a designer can develop for high quality injection molding outcomes — and it costs nothing beyond a few minutes of careful modeling.

Summary

Design Rule	Requirement	Reason
External corners	Add radius; sharp corner at parting line only	Simplify mold; avoid mismatch at parting line
Melt flow direction	Eliminate sharp corners facing flow	Prevent air traps, burn marks, and stress
Wall junctions	R = 0.5T (range: 0.3T – 0.8T)	Minimize stress concentration
External radius at junction	r = 1.5T	Maintain uniform wall thickness
Mold electrode protection	Fillets reduce EDM electrode wear	Extend mold life and improve accuracy
Filleting workflow	R0.5 first pass; adjust by function	Maintain model editability and control

Sharp corners cause more problems than most people expect. Once you understand how they affect flow, strength, and even the mold itself, adding fillets becomes second nature in every design you do. In the next article, I will discuss how to improve the strength of plastic parts — covering rib design and structural optimization techniques.
