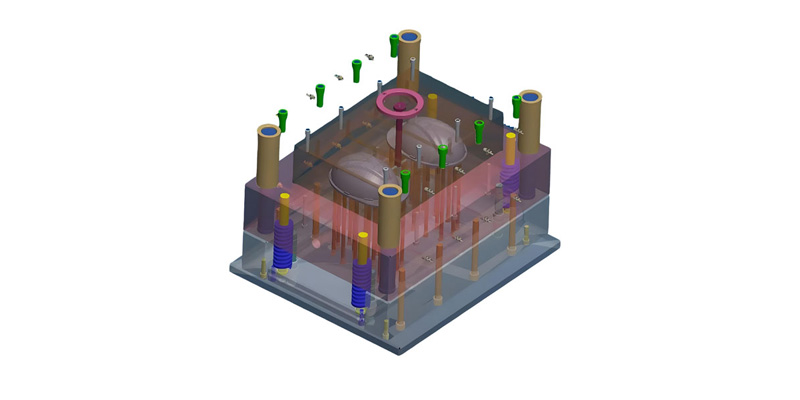

Injection Molding Design Guide

In the mold manufacturing field, establishing the right mold design workflow and ensuring first-time accuracy are essential for both quality and production efficiency. A well-structured approach not only boosts productivity but also accelerates a company’s progress toward standardization and intelligent manufacturing—strengthening overall competitiveness in the injection molding industry.

Today, we’ll walk through the complete mold design process. We hope this guide is helpful to anyone working with injection molds.

Preliminary Product Handling

When you first receive a product model, avoid rushing into parting. The first step is always a careful pre-evaluation of the design. Many beginners immediately attempt to create the split line, which often leads to structural conflicts and rework.

Instead, examine the entire structure—confirm tolerances, draft angles, steps, and any areas that may affect design for injection molding. After this, the parting line, structure, and gate locations naturally become clearer. These details should be verified with the customer before moving forward.

Identifying Product Issues & Understanding Customer Requirements

A structural review does not mean mold design can begin immediately.

To avoid repeated revisions, it is essential to thoroughly analyze the client's needs.The injection machine’s tonnage and model determine the sprue bushing diameter, locating ring size, ejector pattern, and even mold base dimensions. If these details are not confirmed, a perfectly designed mold may still be unusable on the customer’s machine.

Material properties must also be clarified. Shrinkage varies by grade and modification level—never rely on assumptions. This is vital for accuracy and assembly quality.

It also helps to understand how the product will be assembled and used so you can judge which drafts may be adjusted and which undercuts can be simplified in plastic mold design for better manufacturability.

Core Principle of Mold Design: Simplify Complex Structures

The essence of mold engineering is simplifying complexity.

Some designers use overly complicated mechanisms to show skill, but truly effective plastic injection mould design is stable, reliable, and straightforward. Mold designers are responsible not only for execution but also for structural optimization.

If the product design has issues—insufficient clearance, poor draft, unreasonable features—it’s the mold designer’s responsibility to identify and improve it early, preventing downstream problems.

Planning Waterlines & Customer Standards Ahead of Time

Before starting the detailed design, clarify all customer standards:

• – Date stamps or steel inserts?
• – Vent pins or vent grooves?
• – Specific requirements for screws, ejectors, or identification marks?

These decisions affect ejector layout, cooling channels, and overall structure. Missing these early leads to major rework later.

A well-planned cooling system greatly improves part stability and extends the life of injection moulds.

Parting Surface Design & Using UG Effectively

Parting is one of the most critical and rewarding steps in part molding.

Key principles to follow:

• – Keep parting surfaces simple.
• – Use extrude/stretch solutions before complex surfacing.
• – Follow the natural shape of the product for easier machining.
• – Avoid tiny insert areas unless necessary.

In UG (NX), understanding how and when to use each command matters more than the command itself. Skilled designers think through the process instead of relying on software shortcuts.

Always consider manufacturability: polishing, spotting, assembly space, and toolmaker workflow.

Slider & Lifter Structure Design

Slider Design

Sliders rely heavily on trigonometric movement.

Guide pin angles should not be too steep—keeping them below 25° is ideal. The guide pins should be as robust as possible to ensure stability over long cycles.

Different slider configurations—front sliders, internal core pulls, hydraulic cores—serve the same purpose: achieving reliable undercut release while maintaining smooth mold movement within a complete mold design.

Lifter Design

Lifters perform best at moderate angles. A typical lifter angle is around 15°, while 20° is workable but may reduce mold lifespan.

All slider and lifter mechanisms must be validated with motion simulation to ensure smooth operation and long-term durability.

These mechanisms depend on both trigonometric understanding and practical engineering experience, especially in the design of injection mold parts.

Mold Structure Layout & Insert Design

Choosing between a two-plate mold, three-plate mold, or hot runner system depends on the product’s characteristics.

Insert design should simplify machining, reduce material waste, improve venting, and support better cooling. Thin or high-wear areas should be isolated as inserts for easier replacement. Insert layout must also balance structural strength and manufacturability in professional mold design work.

Ejector System & Cooling Layout

Once inserts are defined, standard components can be arranged.

General guidelines:

• – Maintain symmetry and balanced force distribution.
• – Plan ejectors first, then cooling channels.
• – Ejector pins should be placed where holding force is highest—near ribs, bosses, and strong structural areas.
• – Cooling must be balanced with structural support to prevent hot spots.

A well-balanced ejector and cooling layout is a hallmark of a mature designer working in the injection molding industry.

Final Checks Before Releasing the Design

Before the design is finalized, complete the following checks:

• – Draft analysis to ensure no overlooked undercuts
• – Interference checks for all moving components
• – Mold opening simulation, even for simple tools
• – Feasibility checks for machining and assembly—especially for complicated areas such as tunnel sliders

Effective checking avoids the costs of repeated modifications during the process and accelerates the mold design process.

Conclusion

Mold design is a delicate balance.A perfect mechanism may raise costs; a simplified structure may reduce strength or mold life. There is no absolute “best”—only what fits the product and production goals.

Once you achieve that balance, your mold design is successful.

Remember: another designer’s style may not suit your workflow. As long as you follow sound principles and a clear process, you can produce efficient, reliable, and professional results in plastic mold design.
