Injection Molding: A Complete Guide to Types, Advantages, and Application

Injection molding is a widely used core technology in plastic processing, covering multiple fields such as automotive, electronics, medical, and home furnishings. It is highly favored for its advantages of high-efficiency mass production, precise molding, and the ability to create complex shapes. This Injection Molding Guide provides an in-depth understanding of its processes, tools, advantages, disadvantages, and emerging trends, unlocking a professional and practical guide.

What Is Injection Molding?

Injection molding is one of the most popular ways to make plastic products. Here's how it works in simple terms: first, plastic gets melted down, then it's squirted into a custom-shaped tool called a mold. Once the plastic cools and hardens, it pops out looking exactly like the inside of the mold. This method is awesome for making lots of identical parts quickly—even ones with weird or complicated shapes.

You'll find injection-molded stuff everywhere—car parts, home gadgets, phones, medical tools, toys, and even food packaging. Wondering why it's so widely used? It's fast, makes precise parts, and works great when you need to make hundreds or thousands of the same thing.

Key Steps in the Injection Molding Process

• Melting the Plastic (Plasticization): Small plastic pellets (they look like tiny beads) go into a cylinder, where they're heated up until they turn into a smooth, runny liquid—kind of like melted candle wax.
• Injecting the Melt: A big screw inside the machine pushes this melted plastic really fast through a small opening (called a nozzle) and into a tightly closed mold.
• Holding the Pressure: The machine keeps pushing on the plastic while it's in the mold. That's important because plastic shrinks a little as it cools—this extra pressure fills in any gaps so the part comes out perfect.
• Cooling Down: The mold is cooled (usually with water or another cooling fluid) so the melted plastic hardens into a solid part.
• Taking Out the Part (Ejection): The mold opens, and small pins push the finished plastic part out.
• Trimming and Finishing: Most parts need a little clean-up after coming out of the mold. Workers (or machines) cut off little bits of extra plastic—like the thin "strings" or edges that seep out around the mold (called "flash" or "sprues"). Sometimes they also polish the part to make it smooth or paint it to look nicer.

Important Process Settings

• Temperature– This covers how hot the cylinder, nozzle, and mold get. If it's too hot or too cold, the melted plastic won't flow right, and the final part might look bad or be weak. Temperature is the most influential factor in Industrial Injection Molding Custom Part Service.
• Then there's Pressure– Two types matter here: the pressure used to shoot the plastic into the mold, and the pressure held while it cools. These control how fast the mold fills up and how solid the part is (no holes or soft spots).
• Finally, Time– How long it takes to inject the plastic, hold the pressure, and let the part cool. If you rush the cooling time, the part might warp or break when it's ejected. If you wait too long, you're wasting time and slowing down production.

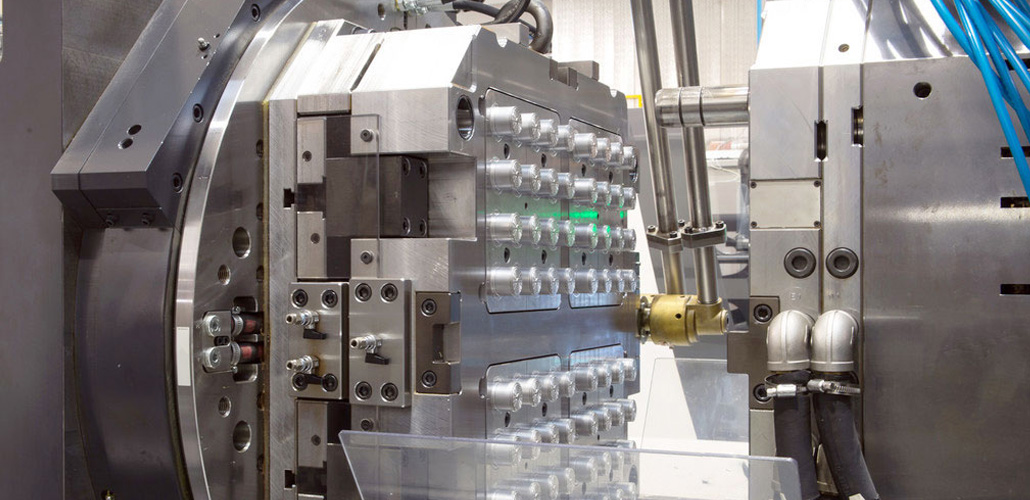

Tools and Equipment for Injection Molding

The star of the show is the injection molding machine, but it can't do the job alone. You need a few other tools to keep the production line running smoothly and make sure the parts turn out right.

Injection Molding Machine

Think of this machine as the "heart" of the whole process—it's what takes plain plastic pellets and turns them into the finished products you use every day.

• Parts: It has a part that melts the plastic, a clamp that holds the mold tight (so plastic doesn't leak out), heating and cooling systems, a motor to power everything, controls (either hydraulic or electric) to set the settings, and a strong frame to hold all these parts together.
• Job: Its main job is simple: heat the plastic until it's melted, shoot it under high pressure into the mold, wait for it to cool and harden, then open the mold and push the finished part out.

Other Important Equipment

Mold

A mold is a custom-made tool, usually made of strong steel that's cut with super precision. It's shaped exactly like the product you want—imagine a cookie cutter, but for plastic. The mold is what decides what the final part looks like and how big it is. For Injection Molding Thermoset Materials, the mold directly determines the quality of its products, so a reasonable mold design is crucial.

Material Handling Tools

These tools help get the plastic ready to go into the machine. Dryers remove moisture from the plastic pellets (moisture can make parts have holes), loaders move the plastic to the machine automatically (so workers don't have to carry it), and color mixers blend different colors or types of plastic to get the right look or texture.

Finishing Tools

These are the tools that finish the job. Chillers help cool the molds or parts faster (speeding up production), degating machines cut off the extra plastic bits from the part, and inspection tools check if the parts are the right size and don't have any flaws (like cracks or dents).

Pros of Injection Molding

• Fast Production: The whole cycle (from melting plastic to ejecting the part) is quick—sometimes just a few seconds. Speed ​​is especially crucial in Inexpensive Injection Molding. That makes it perfect for when you need to make thousands of the same part, like plastic bottle caps or toy pieces.
• Precise: It makes parts with super accurate sizes and smooth surfaces. This is important for things that need to fit together perfectly, like phone cases or car parts. This is also why Industrial Custom Parts prefers to use injection molding services.
• Flexible Design: Unlike some other methods, injection molding can make parts with really complex shapes—think of the tiny, detailed parts inside a toy or the thin walls of a plastic cup. Other ways just can't do that.
• Many Material Options: It works with all kinds of plastics—from the common ones used in water bottles to heat-resistant plastics used in car engines, and even composite materials that mix plastic with other materials for extra strength.
• Easy Automation: You can pair this machine with robots to do most of the work—like loading plastic, taking out parts, or trimming extra plastic. That means fewer workers are needed, which saves money.

Cons of Injection Molding

• Expensive Start-Up: Designing and making a mold is really costly—sometimes tens of thousands of dollars. That's a big problem if you only need a small number of parts, like 100 custom phone cases, or if the part is super complex with lots of tiny details.
• Material Limits: It works great with most common plastics, but some special materials are tricky. For example, certain high-temperature plastics (that don't melt easily) or rubber-like materials can be hard to process without special equipment.
• Defect Risks: If the settings (temperature, pressure, speed) aren't just right, the parts can turn out bad. They might bend (called warping), have dents (sink marks), holes inside, or not fill the mold all the way (short shots).

Where Injection Molding Is Used

• Automotive Industry: Lots of car parts are made this way—like the plastic housing around your car's headlights, the dashboard you touch when driving, the trim inside the doors, bumpers, and even small parts inside the engine.
• Electronics Industry: Your phone case, the outer shell of your laptop, the charging port on your tablet, the buttons on your remote control, and the frame around your TV screen (bezel) are all probably injection-molded.
• Home Appliances: Think about the plastic parts on your TV, the front panel of your air conditioner, the shelves inside your refrigerator, and the plastic components in your washing machine or dishwasher.
• Medical Devices: It's used to make single-use medical supplies like syringes, test tubes, and vials (the small bottles for medicine). It also makes durable medical tools that need to be precise and easy to clean.
• Toys Industry: Most plastic toys are made Inexpensive Injection Molding—from action figures and dolls to building blocks and toy cars. It's perfect for making the complex shapes and tiny details that make toys fun.

New Trends in Injection Molding

• Multi-Material/Color Molding: New techniques let workers inject two or more different materials or colors in one cycle. For example, you can make a toothbrush with a hard plastic handle and a soft rubber grip, or a toy with multiple colors without having to paint it. This is called overmolding or two-shot molding.
• 3D Printing Integration: Now people are using 3D printers to make quick, cheap molds or parts of molds. This is great for small batches of custom parts (like personalized phone cases) because it cuts down the time and money needed to make a traditional steel mold.
• Eco-Friendly Materials: More and more companies are using sustainable plastics. These include biodegradable plastics (that break down naturally in the environment) and recycled plastics made from old bottles or containers.
• Smart Manufacturing (Industry 4.0): Injection molding is getting “smarter” with technology like IoT (Internet of Things), data analysis, and AI. These tools help workers keep an eye on the process, predict when the machine might break down (so they can fix it before it stops working), and make the whole process more efficient.

Conclusion

Injection molding is a flexible and useful manufacturing method that's always getting better. If you understand the basics—how it works, the tools it uses, its good and bad points, and where it's used—you can really take advantage of its abilities.

If you are looking for a reliable injection molding manufacturer, you can try to learn about LVMA's injection molding services. Our website lists which thermoplastics and thermosetting plastics we support, and we will do our best to provide you with reliable services.
