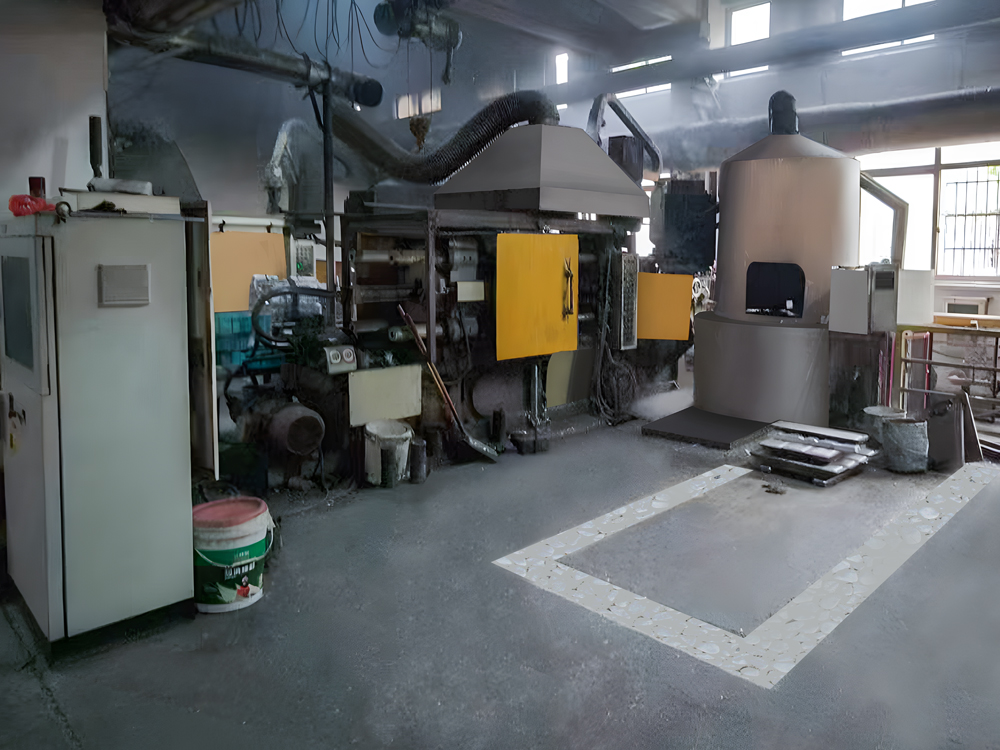

Die-Casting-Services

Die Casting

● Fastest molding in 5 seconds
● Cost reduced by 50%
● 98% yield rate
Get Quote
Certification ISO 9001:2015

Die Casting Method

Hot-Chamber-Die-Casting

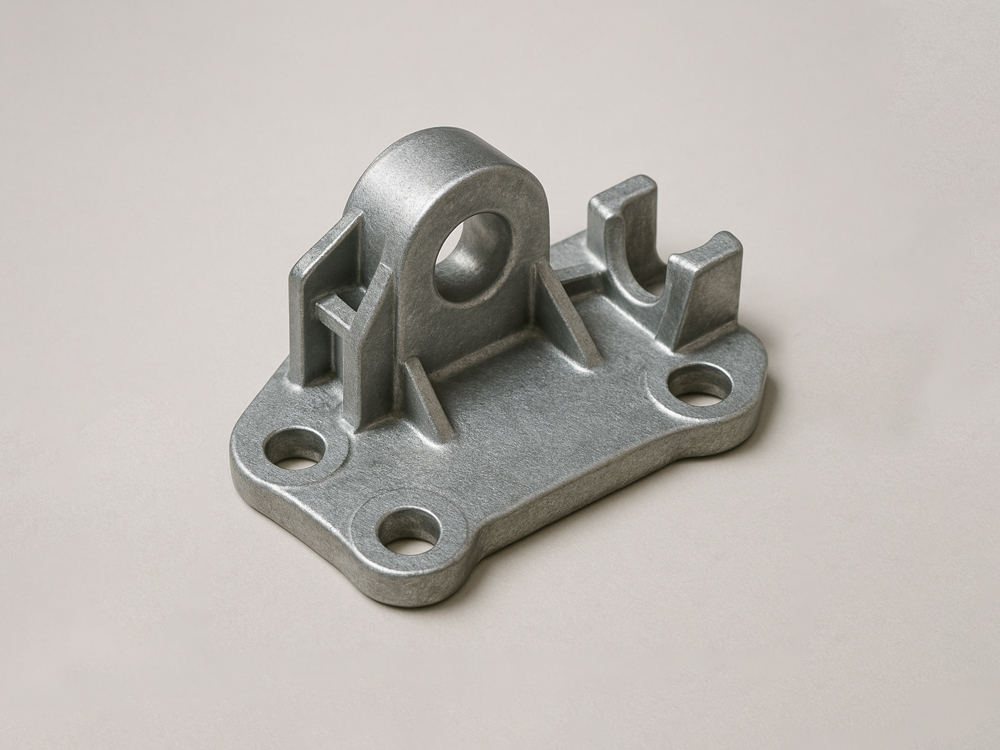

Hot Chamber Die Casting

Melting point < 450 ℃
Applicable materials: Zinc
The die casting chamber and die casting punch of the machine are immersed in the molten metal, which is then directly injected into the mold through the gooseneck tube. The molten metal is contained within an internal closed channel to minimizing contact with the outside environment, thereby reducing oxidation loss, and ensuring the purity of molten metal. Its simple structure allows it to be used in combination with an automated robotic arm to achieve highly automated production, an integrated smelting and injection system, and an extremely short molding cycle (10-30 s).
Cold-Chamber-Die-Casting

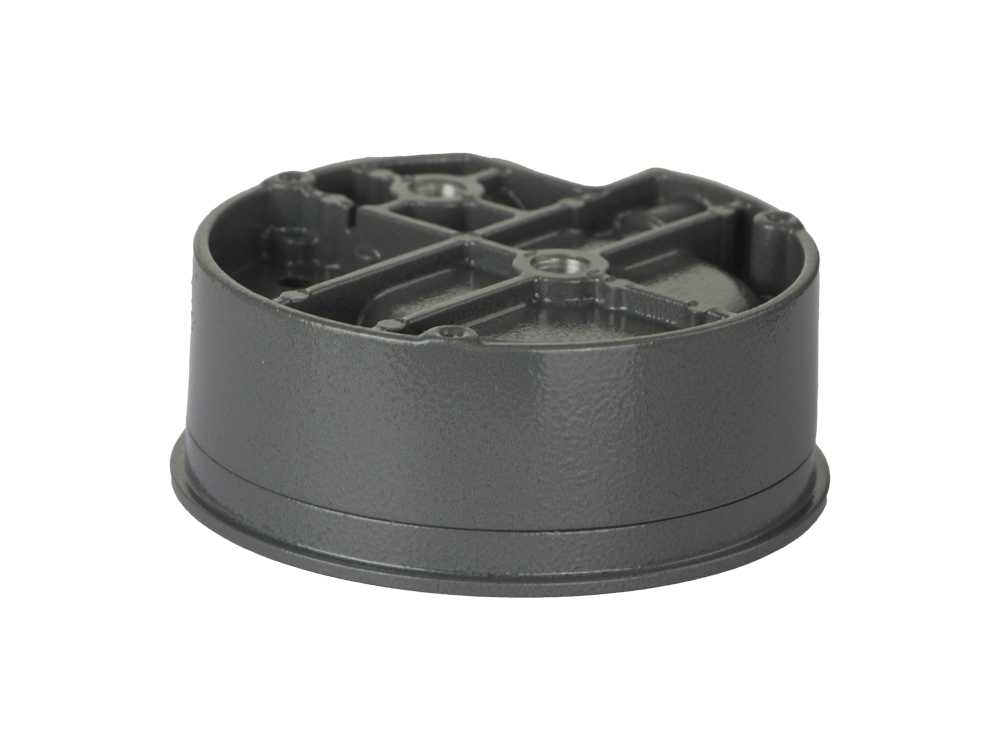

Cold Chamber Die Casting

Melting point > 600 ℃
Applicable materials: Aluminum, Magnesium
Cold chamber die casting involves melting metal in a separate furnace, then injecting the liquid metal into the injection chamber using a scoop, and finally, forcing the molten metal into the mold through the injection rod. The injection pressure can range from 70 to 150 MPa, which is suitable for processing large and complex parts on automobiles and motorcycles.

Die Casting Materials

Aluminum
Magnesium
Zinc

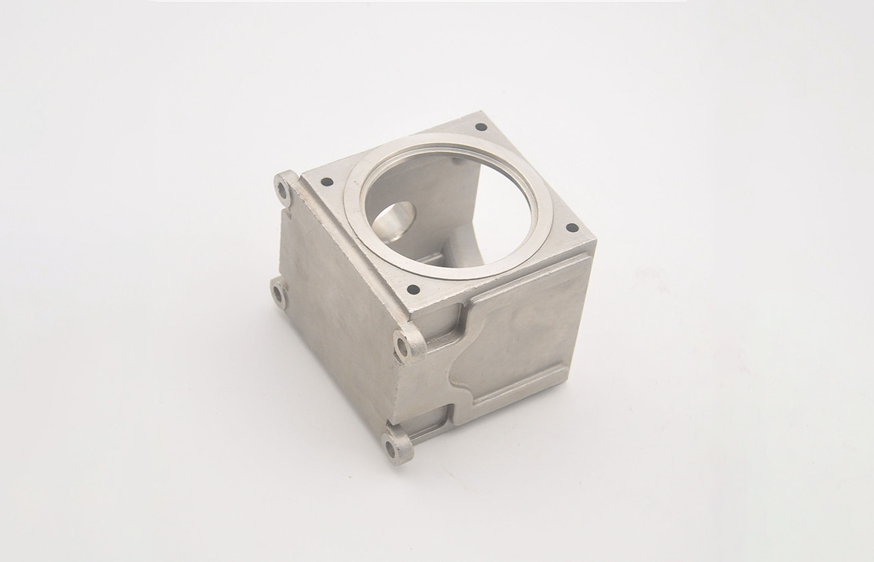

Aluminum

Aluminum is a lightweight, corrosion-resistant metal known for its excellent strength-to-weight ratio and thermal conductivity. It is widely used in electrical housings, heat sinks, enclosures, and structural components. Aluminum is easy to machine, weld, and extrude, making it ideal for applications in electronics, transportation, and industrial equipment where durability and efficiency are essential.

Processing Time:
As fast as 3 days
Alloys:
A360, A380, A383 (ADC12), K-Alloy, B390, etc.
Finishing Options:
Alodine, Anodizing Types II, III, Media Blasting, Nickel Plating, Powder Coating, Tumble Polishing.
aluminum
Supporting 20+ custom metal material options.
Get Instant Quote

About the Mold

Our team of mold experts has more than 40 years of experience and has provided precise solutions for hundreds of customers. We provide mold-making services in a variety of materials, suitable for die casting and injection molding, and can meet all your mold requirements. We aim to solve problems for our customers through professional services. Here are the various molds we have prepared for you
Mold Material Applicable Metal Service Life (Module Times) Dimensional accuracy (IT grade) Surface Roughness (Ra)
H13(Hot working die steel) Aluminum, Magnesium, Zinc alloy 30,000 - 150,000 IT11 - IT12 0.8 - 1.6 μm(Unprocessed)

8407

 Aluminum, Magnesium, Copper alloy 50,000 - 200,000 (Lifespan of copper alloy die casting is 50,000 - 100,000) IT10 - IT11 0.6 - 1.2 μm(After Processing)
W302 Aluminum, Magnesium alloys (Complex parts) 80,000 - 250,000 (Thin-walled parts can reach 150,000 - 250,000) IT10 - IT11 0.4 - 1.0 μm（After Polishing)）
S45C(Carbon Steel) Zinc Alloy 10,000 - 30,000 IT13 - IT14 1.6 - 3.2 μm
YG8(Carbide) Aluminum, Magnesium alloy (partial) 200,000 - 500,000 IT9 - IT10 0.1 - 0.3 μm(Mirror Polished)
ADC6(Aluminum Alloy) Zinc Alloy 2,000 - 30,000 IT12 - IT13 1.6 - 3.2 μm
Get Instant Quote
  • About the Mold (2)

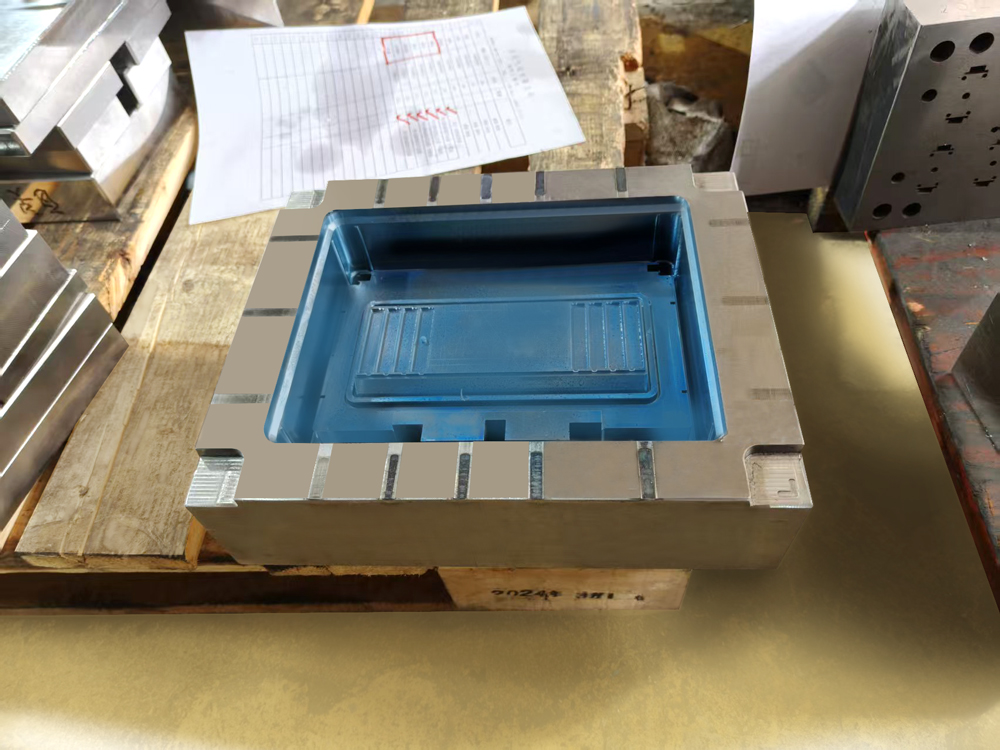

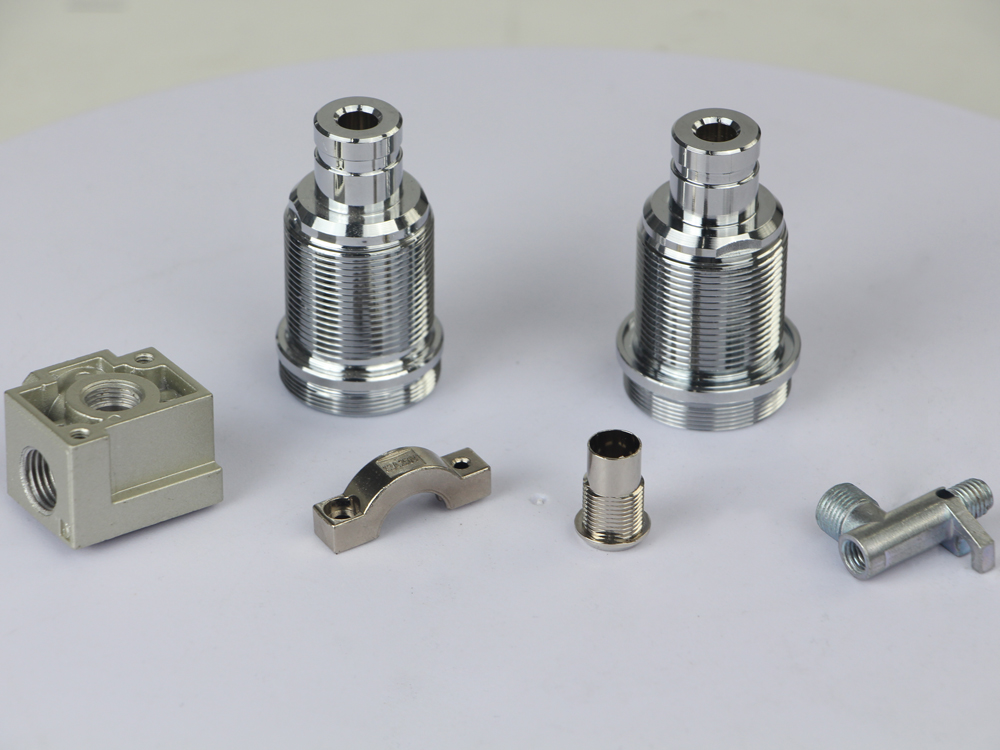

  • About the Mold (1)
We provide the following three flexible solutions for mold costs:
1. Based on the actual requirements of the project's early preparation, you first bear the mold R&D, design and production costs to lay the foundation for the smooth progress of the project.
2. LVMA will negotiate with you on a reasonable way to share the development costs based on the actual purchase volume. This will ensure that the cost structure of both parties is more flexible and optimised.
3. Formulate a purchase volume agreement. Upon the achievement of the cooperation goals agreed upon by both parties, the mold fees collected in the early stage will be fully refunded according to the agreement.

Advantages of Die Casting

Smooth Surface

After die casting, the surface is relatively smooth and can usually reach Ra1.6-3.2μm after processing.

High Production Efficiency

The production efficiency of cold chamber die casting is 80 pieces/hour, and the production efficiency of hot chamber die casting can reach 1200 pieces/hour

Material Utilization

Through high-pressure injection molding, no secondary processing is required, and waste materials can be recycled, with a material utilization rate of more than 90%

Scale Benefits

The service life of the casting mold is tens of thousands of times, and batch processing can spread the mold cost.

Available Surface Treatment Processes

lvma

    • Sandblasting/Shot Blasting

    • Description
      Efficiently clean and texture surfaces with abrasive blasting.
    • Cleaning Standards
      Sa1, Sa2, Sa2.5, Sa3

    • Oxidation of Anode

    • Description
      Electrolytic process forms durable, dyeable oxide layer on aluminum.
    • Thickness
      Type II Anodizing: 8–20 μm
      Type III Anodizing: 30–150 μm

    • Spray Paint

    • Description
      Spray-applied paint shields surfaces from corrosion while enhancing their appearance.
    • Standard
      ISO2409 Grade 0/1/2

    • Electroplating

    • Description
      Depositing metal coatings to provide corrosion resistance (anti-rust protection) and enhance aesthetic appeal.
    • Salt spray test requirements
      Usually 24-48 hours, up to 72 hours according to the requirements.

Frequently Asked Questions

  • How long does it take to deliver die-cast products?

    Usually 20 days for die-cast products delivery including 12 days for mold production.

  • Do the materials you use comply with the RoHS standard? Can you provide a report?

  • Which die-casting process is suitable for me?

  • What is the minimum order quantity (MOQ)? Is there a discount for mass production?
