Custom SECC Sheet Metal Patrol Robot Transmission Module Mounting Plate

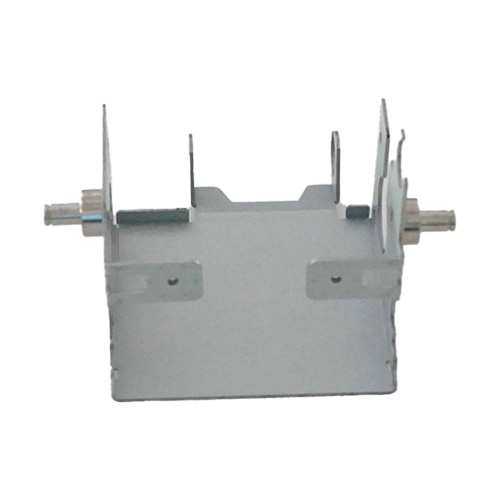

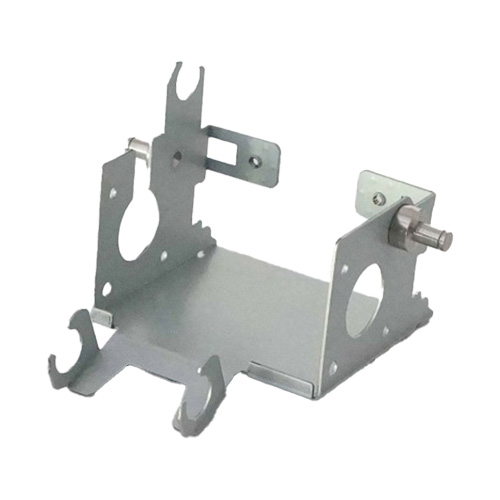

What is Patrol Robot Transmission Module Mounting Plate
Patrol robots transmission module mounting plate is specifically designed to secure the transmission module. It is manufactured using SECC material via a stamping process.
This stamped mounting plate effectively resolves issues associated with the robot's transmission module, such as cumbersome assembly procedures and high iteration costs. A reliable and stable transmission module directly determines the robot's operational endurance and overall operational reliability.
What is Patrol Robot Transmission Module Mounting Plate
| Product Size | 105*70*80mm | Expand Size | 194.6*116.1*1.5mm |
|---|---|---|---|
| Material | SECC | Material Thickness | 1.5mm |
| Product Weight | 130.8g | Processing Difficulty | Simple |
| Size Tolerance | ±0.01mm | Angle Tolerance | ±0.3° |
What is Patrol Robot Transmission Module Mounting Plate
| Serial Number | Process | Equipment / Tonnage | Process Description & Precautions |
|---|---|---|---|
| 1 | Progressive Blanking | 160 Tons | Product outline and locating holes are punched in one operation to ensure dimensional accuracy and controlled burr height. |
| 2 | Piercing & Forming | 160 Tons | Functional holes and partial forming features are completed in the same stage. Tool alignment and punch precision are critical. |
| 3 | Tapping | M3 x 2 | Two threaded holes are tapped. Thread quality and hole tolerance are controlled within ±0.01 mm. |
| 4 | L-Bending | 200 Tons | Main bending process forms the bracket profile. Bending angle and springback are carefully monitored. |
| 5 | Final Forming | 200 Tons | Secondary bending and shape correction are performed to meet final geometry requirements. |
| 6 | PEM Fastener Insertion | Auxiliary Process | Press-fit nuts or studs are installed according to assembly requirements. |
| 7 | Surface Cleaning | Auxiliary Process | Degreasing and cleaning remove oil, dust, and stamping residue before inspection. |
| 8 | Quality Inspection | Auxiliary Process | Full inspection of dimensions, thread quality, bend angle, and surface appearance. Nonconforming parts are removed. |
| 9 | Packaging | Auxiliary Process | Custom protective packaging is used to prevent scratches and deformation during transport. |
Why Choose Us?
Rapid Delivery, Guaranteed Production Capacity
Backed by a professional production team of over 500 members, with scheduling and coordination expertly managed by our mechanical engineers.
Precision-Fit Assembly
Components feature multiple pre-drilled holes and tapped threads, ensuring perfect compatibility with robotic transmission structures—eliminating the need for secondary processing and allowing for immediate, plug-and-play installation.
Batch Customization
We employ a large-scale customized production model. This enables rapid iteration of product structures, effectively minimizing the costs associated with batch updates and helping you maintain a competitive edge in the robotics market.
Dedicated 1-on-1 Engineering Support
From design reviews and mass production oversight to after-sales support, a dedicated engineer provides personalized, one-on-one service throughout the entire process—ensuring consistent, controllable quality at every stage and nipping potential risks in the bud.
High-Strength, Corrosion-Resistant Structure
Our components boast superior tensile strength, enhanced by specialized anti-corrosion surface treatments. Combining moderate hardness with excellent toughness, they ensure stable operation in complex outdoor environments—withstanding the multiple challenges posed by temperature fluctuations and vibration.
Precision Stamping Process: High Dimensional Consistency
Leveraging advanced metal stamping technology, we achieve exceptional dimensional consistency. Our inspection capabilities reach a precision of 0.01 inches, ensuring stable tolerances across every production batch.
Factory Display

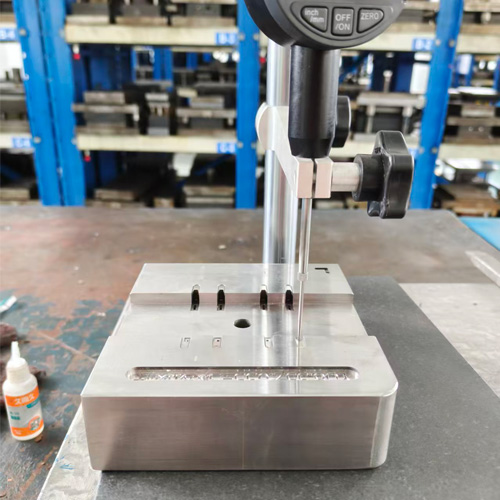

Stamping Mold

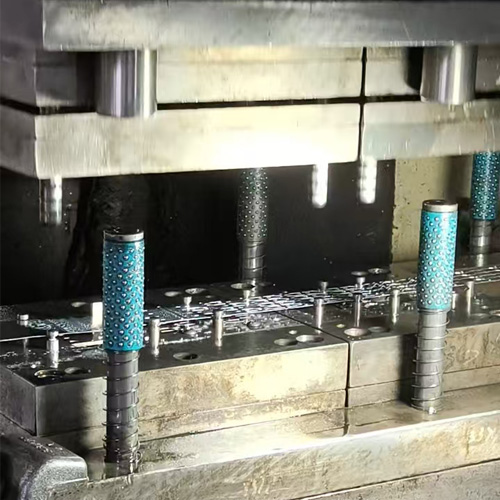

Stamping Machining

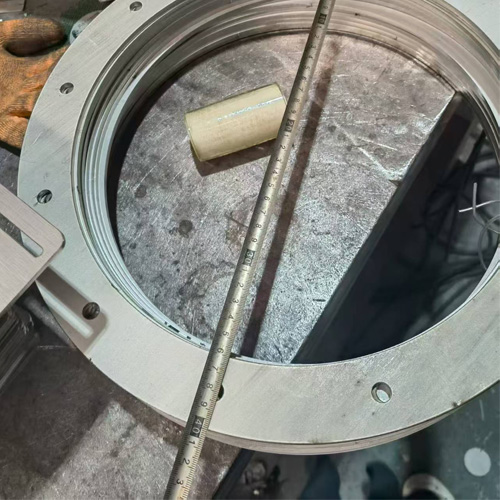

Dimension Testing

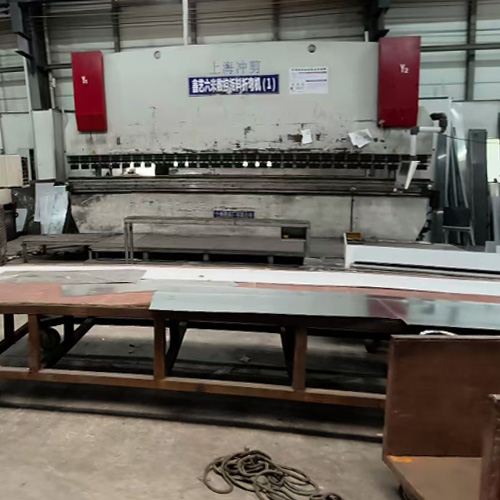

6m Bending Machine

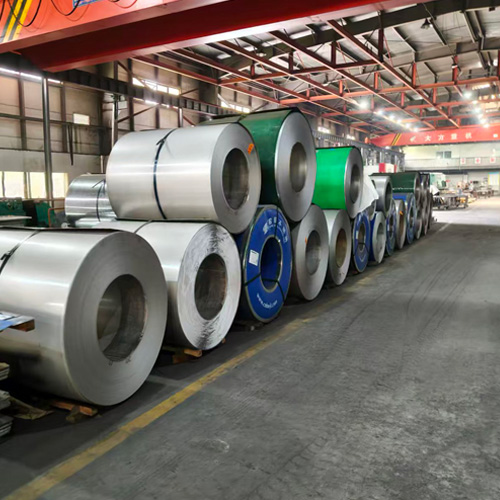

Raw Material Steel Coil

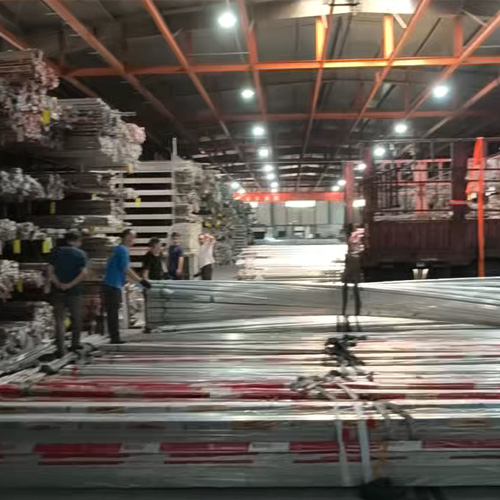

Seamless square pipe warehouse

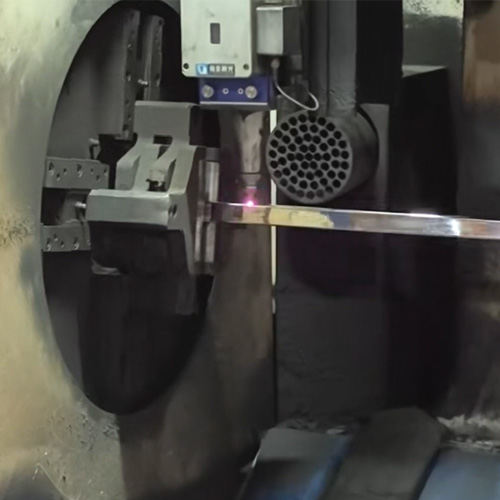

laser tube cutting machine

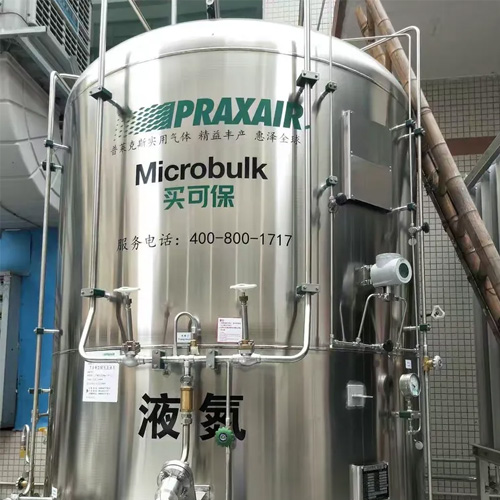

Auxiliary gas storage equipment

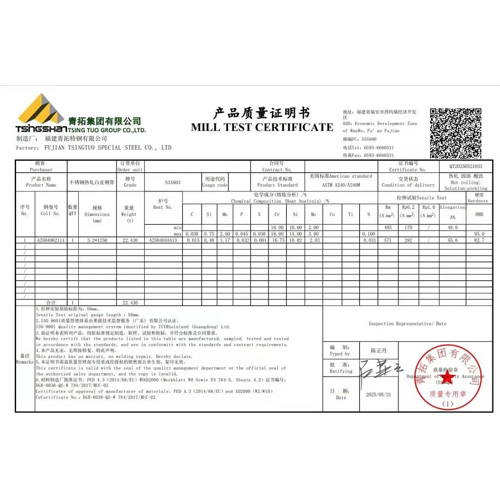

MTC material test certificated
