Sheet Metal Hemming:What It Is, How It Works, and Where It's Used

Sheet metal hemming plays a vital role in metalworking, widely used to enhance the structural strength and appearance of products. By precisely curling the edge of metal sheet, hemming not only enhances the product's mechanical properties but also effectively prevents potential injuries from sharp edges.

This article will delve into the fundamental principles, common applications, and operational techniques of sheet metal hemming, while also analyzing the unique advantages of this process in enhancing the appearance and functionality of metal products. By understanding the different types of hemming methods, you will gain a clearer understanding of how this process can add value to products and improve production efficiency.

What is Sheet Metal Hemming?

Sheet metal hemming involves bending the edges of sheet metal to create smooth, rounded corners or closed edges. This process is typically performed using a hemming or folding machine, which precisely controls the angle and radius of the hem to ensure the desired structural strength and aesthetic. During hemming, the edge of the sheet metal is gradually compressed and bent, avoiding the sharp edges associated with direct cutting.

By curling the edge of a metal sheet, you can avoid sharp edges, improving the durability and impact resistance of the product. In addition, curling can also improve the appearance of the product, giving it a smooth edge and higher visual appeal, which is especially important in products that require a refined appearance.

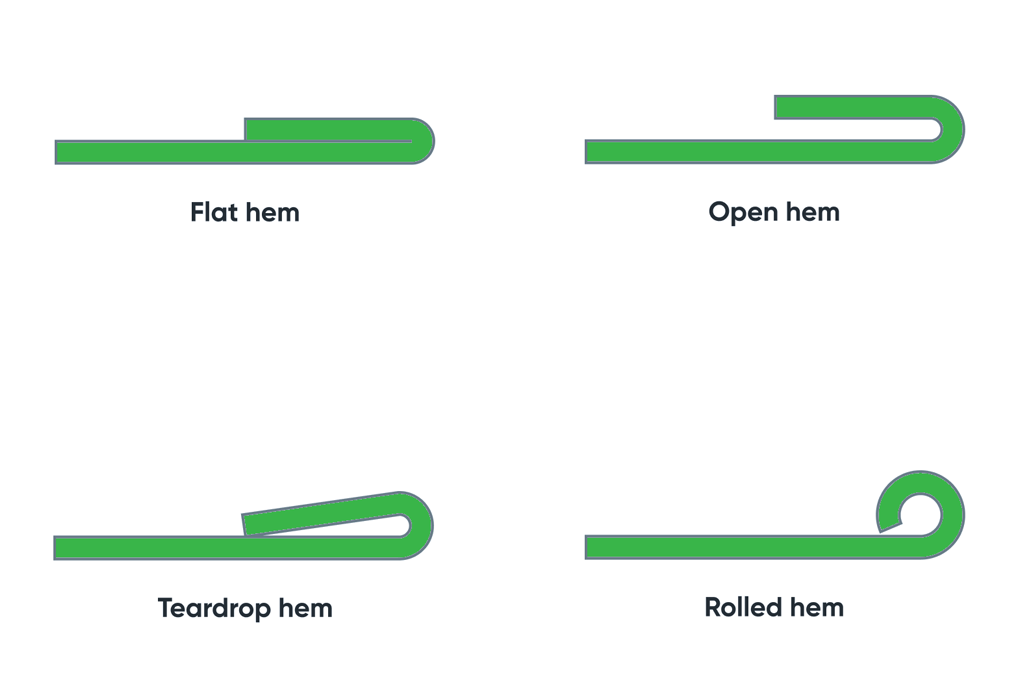

Types of Sheet Metal Hems

1. Open Hem

Open hem is the simplest type of hem and is commonly used for handheld, contact-sensitive parts. It is achieved by curling the sheet edge to form a 30-45° open bead, inserting a suitable shim into the bead, and then flattening the material. Common standard gaps for open hems include .060, .090, .125, .187, and .250 inches.

The main advantages of open hem are its ease of use and suitability for applications where strength is not a priority.

2. Closed Hem

Closed hem is a hem method that completely wraps around the sheet edge. It is often used for parts requiring high strength or precision. By folding the edge back to form a tight, closed structure, closed hem offers increased strength and durability. Closed hem is ideal for materials between 0.040 and 0.125 inches.

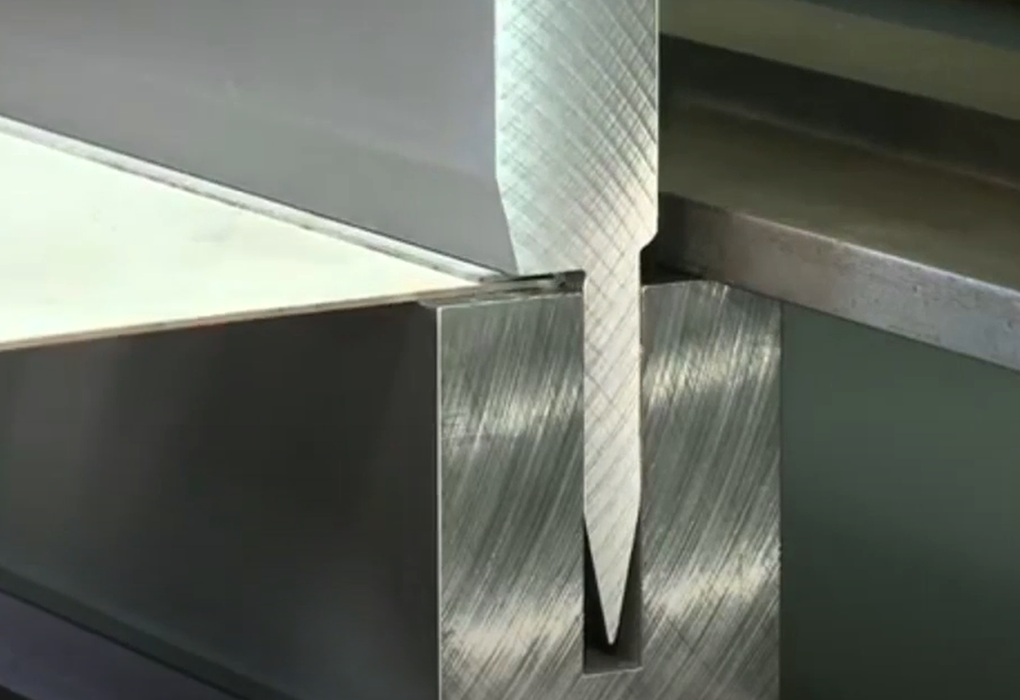

3. Teardrop Hem

Teardrop hem is a process where the material is first rolled to a 90° angle, then rolled into a teardrop shape using a sheet metal hemming tool. This hem features a gradual curve and is often used for parts requiring high aesthetics and workmanship.

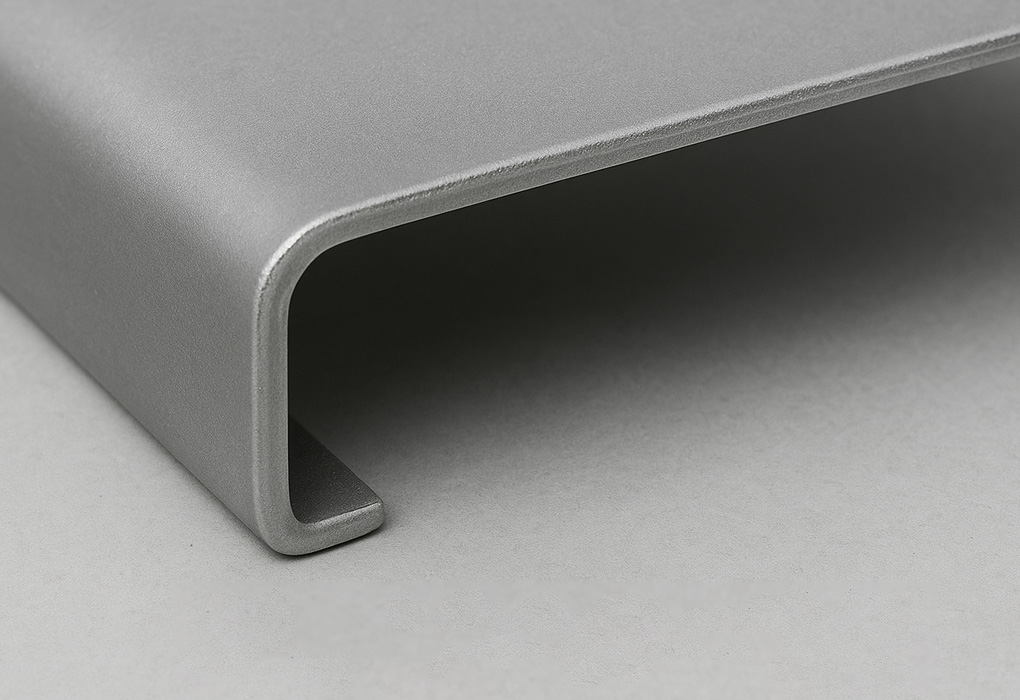

4. Rolled Hems

Rolled hems is a process where the edge of a metal sheet is gradually rolled into a round or curved shape using rollers, often forming rolled hem flanges. It is commonly used for thin sheet metal processing. Rolled hems produce very smooth edges, reduce sharp corners, and improve product safety.

Different Hemming Processes

1. Die Hemming Process

Die Hemming is a hemming process that precisely folds the edge of a metal sheet using a die. First, the edge of the metal sheet is pre-bent to a specific angle, typically 90° to 180°. The die then wraps the edge around the edge to create a closed edge structure. Die Hemming achieves high-quality hemming results in a short time and is suitable for sheet metal thicknesses ranging from 0.5mm to 2.0mm.

The advantages of die hemming lie in its high precision and consistency, ensuring that every part in mass production meets the same standards. Due to the customizable die, die hemming requires a high initial investment, but it is suitable for mass production, especially for high-volume production, and offers long-term cost-effectiveness.

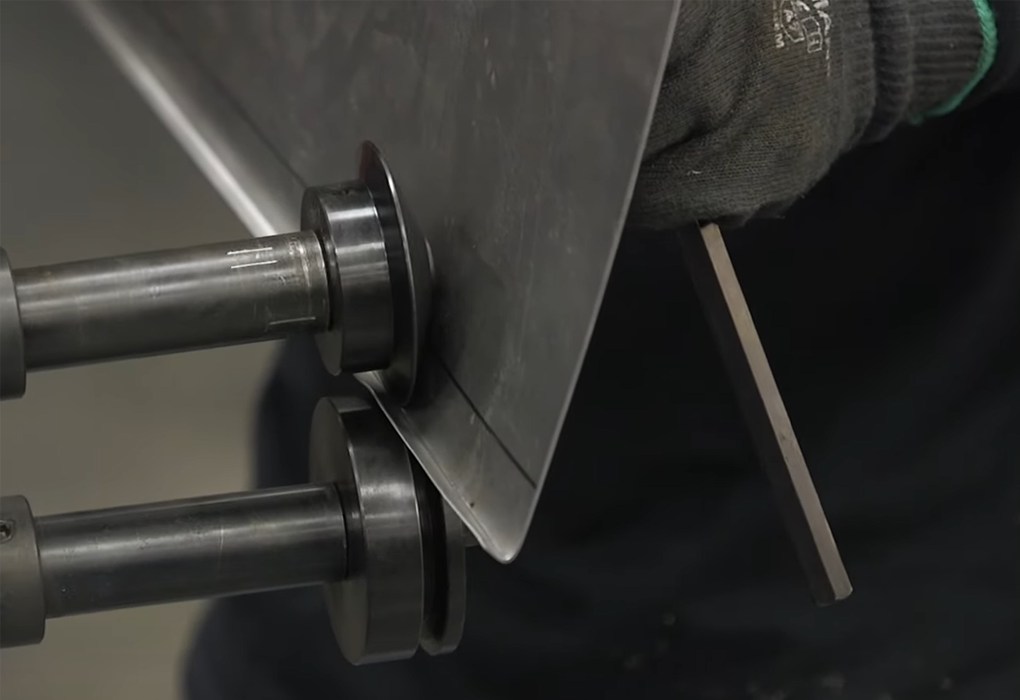

2. Roller Hemming Process

The Roller Hemming process uses rollers to gradually bend the edge of a metal sheet, creating a rounded or smooth edge. The core step of the hemming process involves gradually bending the edge of the metal sheet over multiple rollers to achieve the desired shape and strength. This process typically bends the metal edge to 90° to 180°, but the angle and radius can sometimes be adjusted depending on actual needs. The width of the hem typically ranges from 3mm to 6mm, depending on the thickness of the sheet and product requirements.

A significant advantage of the hemming process is its efficiency, enabling the hemming operation to be completed in a relatively short time. Compared to other hemming processes, hemming does not require complex flatten, resulting in a lower initial investment and making it suitable for small to medium-volume production.

Advantages of Sheet Metal Hemming

Improve Structural Strength

Crimping strengthens the edges of metal parts, especially in thin sheet metal. It effectively distributes stress and prevents edge cracking or deformation.

Improve Appearance

Crimping creates smoother, more rounded edges, eliminating sharp edges. This not only enhances the product's appearance but also improves safety by preventing scratches and other hazards.

Increases Durability

After crimping, the edges of metal sheets are more resistant to external impact and corrosion, extending the product's service life.

Reduces Stress Concentration

Crimping creates a more even distribution of stress along the edges of metal parts, reducing stress concentrations associated with traditional cutting and improving the fatigue resistance of metal parts.

Limitations of Sheet Metal Hemming

Possible Surface Damage

In some cases, the hemming process may cause scratches or minor damage to the metal surface, affecting the final appearance of the part.

Risk of Deformation

During the hemming process, especially at large angles, the metal may undergo slight deformation, affecting the overall structure and accuracy of the part.

Limited Applicable Metal Thickness

Not all hemming processes are suitable for thick metals. Some processes, such as roller hemming, are more suitable for thin sheet metal and may require additional steps when processing thicker metals.

Conclusion

Sheet metal hemming is a simple yet essential technique in metal fabrication. By folding the edge of sheet metal into forms such as open hem, closed hem, teardrop hem, or rolled hem, it not only eliminates sharp edges and enhances safety, but also increases strength, stability, and design flexibility. This process is widely applied in industries such as automotive, appliances, and construction, where both durability and appearance matter.

In summary, hemming provides manufacturers with a reliable and cost-effective solution for achieving precision, safety, and aesthetics in sheet metal components.
