Washer Types Explained: Sizes, Materials, Standards

Bolts are widely employed across countless industries as fundamental fastening elements. These compact yet robust components, commonly manufactured from materials such as alloy steel, stainless steel, or brass, serve as connectors that hold structures firmly in place. They not only provide mechanical strength and stability but also ensure reliable performance under various loads and environmental conditions.

In many cases, selecting the right washer types for bolts is equally important, as washers help distribute pressure and prevent damage to the connected surfaces.

This article will explore the functions of different types of washers, their uses, and standard sizes. After reading this article, we believe you'll have a better understanding of washers and how to choose the right one for you.

What is a Washer?

A washer is a thin, disc-shaped component typically used with screws, bolts, or nuts. Common materials include carbon steel, stainless steel, copper, aluminum, nylon, and PTFE. There are various types of washers designed for specific applications. During the tightening process, washers distribute the pressure of threaded fasteners on contact surfaces, preventing localized stress on wood, metal sheets, or plastic parts.

They also prevent fasteners from loosening due to vibration, reduce friction and wear between metal parts, and enhance insulation and corrosion resistance. Therefore, washers are crucial components for achieving reliable connections and extending service life in areas such as automotive engines, mechanical equipment, electrical devices, furniture assembly, and building structures.

Beyond load distribution, washers serve additional purposes such as spacing, sealing, and absorbing vibrations. They can also act as protective barriers against moisture, corrosion, or loosening caused by movement. Due to these functions, washers are considered vital in both everyday applications and industrial engineering systems.

Purpose of a Washer

Load Distribution

When bolts or nuts are tightened, washers enlarge the contact area and distribute the load more evenly. This prevents excessive localized stress, which could otherwise leave marks or damage the workpiece surface. This function is especially important for soft materials or coated surfaces.

Anti-Loosening

In environments with continuous vibration or sudden shock, fasteners tend to loosen because the repeated micro-movements gradually reduce clamping force, while impact loads can momentarily overcome friction between the threads and the washer surface. Spring washers, lock washers, and similar types increase friction or apply elastic preload to effectively resist loosening, ensuring long-term stability of the connection.

Surface Protection

The edge of a metal fastener can easily press directly against the workpiece surface, causing scratches, indentations, and even localized plastic deformation. Washers prevent direct friction or scratching, thereby protecting the integrity and appearance of the material surface.

Sealing

Washers made of rubber, copper, nylon, and similar materials serve as seals, preventing leakage of liquids, gases, or dust through the gaps of fasteners. They are commonly used in piping connections, hydraulic, and pneumatic systems.

Spacing and Adjustment

Washers can also act as spacers to adjust clearances, compensate for dimensional tolerances, or ensure precise positioning during assembly, thereby improving overall assembly accuracy.

Positioning

Specially designed washers, such as wave washers and toothed lock washers, not only provide elasticity or anti-loosening properties but also assist in positioning and limiting movement during assembly, ensuring parts remain stable in place.

Damping and Cushioning

Washers made of rubber or other elastic materials are typically used to absorb shock and vibration, providing effective damping and cushioning for fastened parts. They can also prevent equipment from being damaged in dynamic environments and reduce noise levels.

Isolation and Insulation

Some washers made from non-conductive materials such as plastic, nylon, or ceramics provide electrical insulation, preventing current conduction. Metal washers can also serve as isolators between dissimilar metals, reducing the risk of galvanic corrosion.

Different Types of Washers

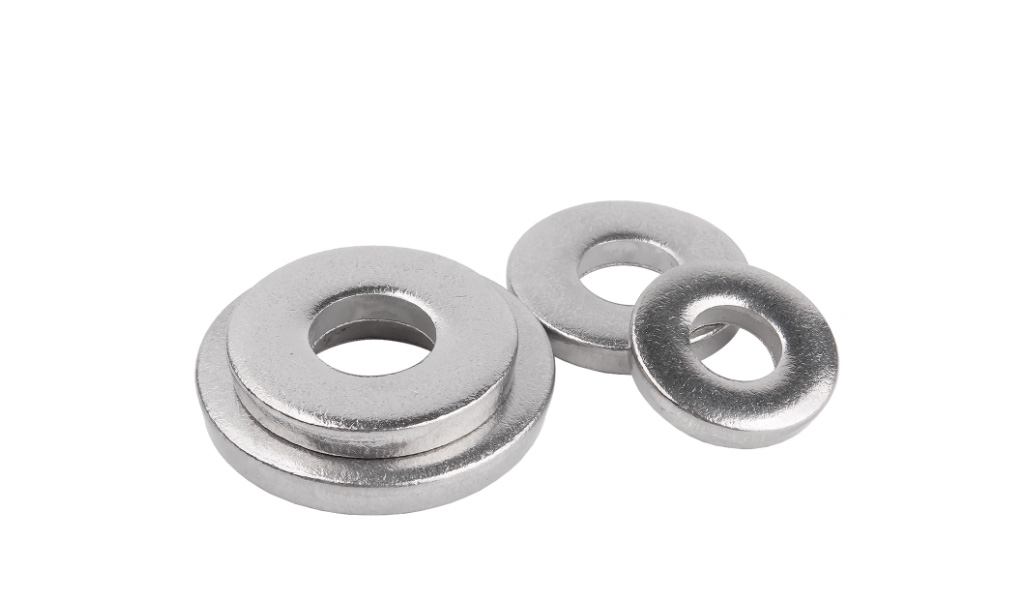

1.Plain / Flat Washers

Plain Washer / Flat Washer

The most common washer type, designed to distribute the load of bolts and nuts and protect the workpiece surface from damage. Frequently used in machinery, automotive parts, and construction joints.

Torque Washer

Features small prongs or tabs that bite into the surface to prevent bolt rotation, often used with wood or softer materials.

Fender Washer

Has a larger outer diameter than standard flat washers, providing greater load distribution on thin or oversized-hole materials. Commonly applied in automotive bodywork, sheet metal assemblies, or pipe supports.

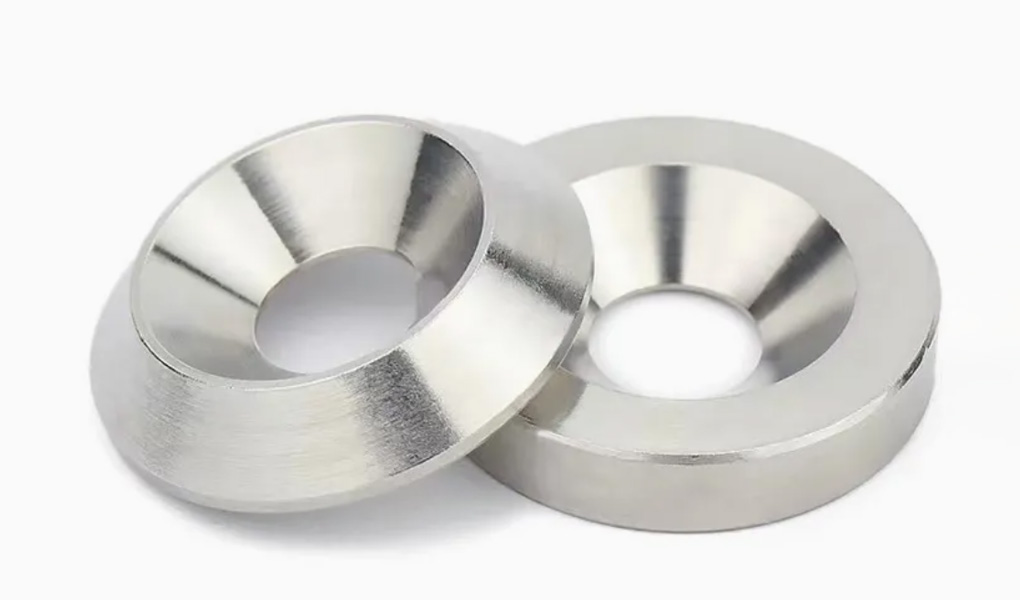

Finishing / Countersunk Washer

Designed with an angled or decorative surface so that countersunk screws sit flush, commonly used in furniture and visible assemblies.

Shoulder Washer

A shoulder washer is a special washer with an extended sleeve or "shoulder". It is not just a flat spacer, but has a three-dimensional raised structure. Widely applied in electronics and electrical assemblies.

C-Washer

Shaped like the letter "C," this washer allows for quick installation or removal without fully disassembling the bolt. A C washer on a 1/4 inch round pin is a common example of this design.

2. Spring Washers

Belleville / Conical Washer

Cone- or dish-shaped, capable of delivering high spring force in a small space, ideal for heavy load applications such as heavy machinery, railway vehicles, and wind turbines.

Dome Spring Washer

Dome-shaped, providing both an aesthetic finish and spring action, used where cushioning is required.

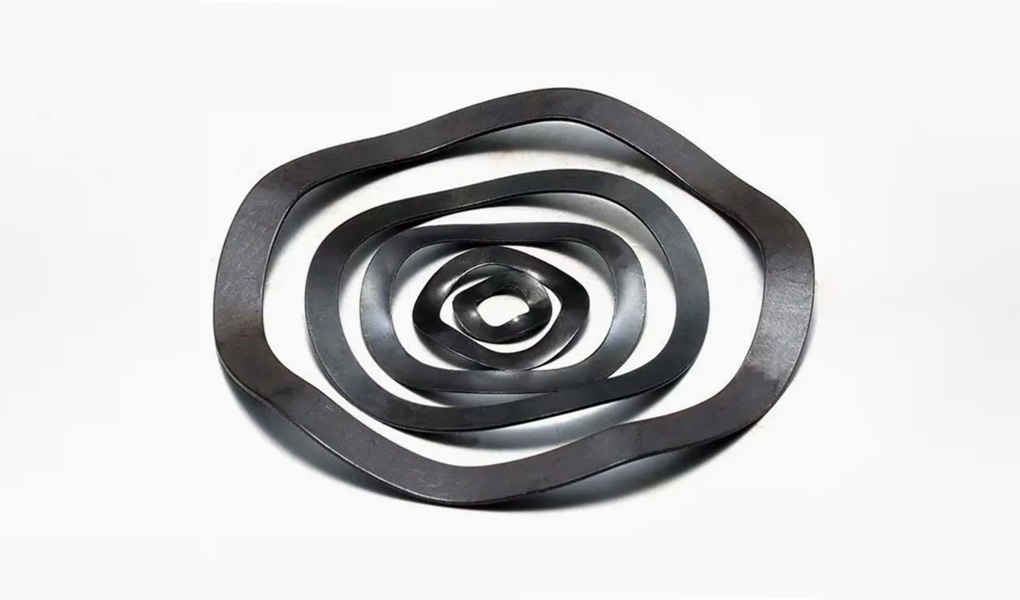

Wave Spring Washer

Wave-shaped, designed to offer spring pressure within a limited deflection range, often used to compensate for assembly gaps. Commonly found in small motors, bearing preload, and precision electronic devices.

Finger Spring Washer

Features multiple “finger-like” projections, used to absorb vibration and provide cushioning in motors or bearings.

Crescent Spring Washer

Crescent-shaped, offering light spring support under relatively low loads, often used in light machinery or household appliances.

3.Lock Washers

Split Lock Washer

A split and twisted ring that digs into the surface when tightened, increasing friction to resist loosening.

External Tooth Lock Washer

Teeth are located on the inner edge, suitable for confined spaces or when the outer surface appearance must be preserved.

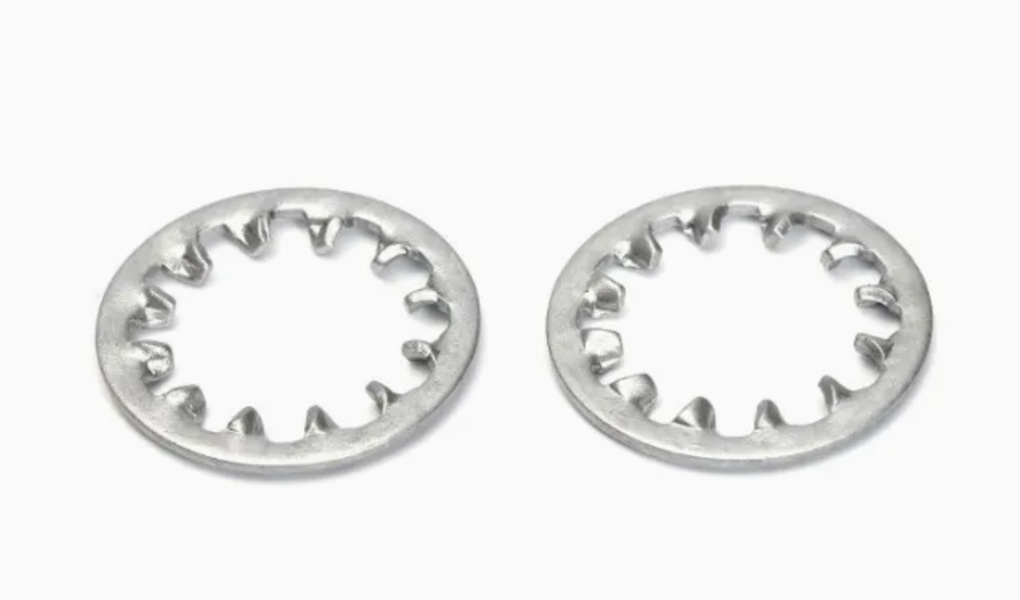

Internal Tooth Lock Washer

Teeth around the outer edge bite into the surface, providing strong resistance to loosening.

4.Specialized Washers

Top Hat Washer

Shaped like a top hat, used for spacing, positioning, and insulation, often in electronics.

Keyed Washer

Designed with a key slot or tab that fits into a groove, preventing the washer and nut from rotating. This design is one of the common nut washer types used to ensure secure fastening.

Insulating Shoulder Washer

Combines a shoulder shape with insulating properties, commonly used in electrical applications to isolate screws from conductive parts.

Gaskets

Broadly categorized as sealing washers, made from materials such as rubber, paper, or graphite, used to prevent leakage of fluids or gases.

Size Chart of Different Washers

Rubber and Nylon Washers

Rubber and nylon washers excel at flexibility and insulation. They effectively absorb vibration and impact, provide excellent sealing properties, and prevent the leakage of liquids, gases, or dust. They are commonly used in pipe joints, hydraulic systems, and mechanical equipment. Depending on the formulation, NBR rubber is oil-resistant, EPDM is weather-resistant and UV-resistant, and silicone can withstand high temperatures, adapting to a variety of operating environments.

Nylon washers are lightweight and wear-resistant, offering excellent electrical insulation and chemical stability. They are commonly used in electronic and electrical equipment to prevent direct contact between metal parts, which can cause wear or short circuits. Their low coefficient of friction also reduces binding during assembly, extending the life of fasteners and workpieces.

Metal Washers

Metal washers are known for their strength and durability and are the most common choice. There are various types of washers for different applications. Carbon steel washers are economical and practical, suitable for applications that withstand high loads but do not require high corrosion protection. Stainless steel washers offer a balance of strength and corrosion resistance. 316 stainless steel, in particular, performs well in salt spray and chemically corrosive environments, making it ideal for outdoor or marine environments. Copper and brass washers are relatively soft and offer excellent electrical and thermal conductivity, making them commonly used for electrical and pipe sealing. Aluminum washers are lightweight and corrosion-resistant, making them ideal for aviation, transportation, and precision assembly applications.

Plastic Washers

Plastic washers are primarily made of engineering plastics, most commonly PTFE. These materials offer extremely low friction, excellent chemical resistance, and high-temperature resistance, making them widely used in chemical processing, pump and valve systems, and other environments requiring anti-sticking and anti-corrosion properties. PTFE also maintains excellent electrical insulation, eliminating the risk of electrical conductivity.

Compared to metal, plastic washers are lightweight, rust-resistant, and avoid the risk of galvanic corrosion caused by direct metal-to-metal contact. They are ideal for specialized applications requiring high stability, chemical resistance, or insulation.

Size Chart of Different Washers

The most common washer types are SAE and USS. SAE washers have a smaller outer diameter and are thinner, suitable for general loads; USS washers have a larger outer diameter and are thicker, designed to distribute greater pressure for heavy-duty applications. Below is the washer types chart:

SAE Flat Washer

USS Flat Washer

How to Choose the Right Washer?

When choosing the right gasket for your product, keep the following in mind:

1. Spacing and Fit

When selecting a washer, it’s important to consider how it affects spacing and assembly precision. The thickness and dimensions of the washer can help fill gaps, compensate for small misalignments, and ensure that bolts and nuts sit flush. Choosing the right size ensures a stable and level assembly, preventing undue stress on the fastened components.

2. Operating Environment

The environment in which the washer will be used plays a critical role in material selection. If the assembly is exposed to high temperatures, moisture, chemicals, or UV radiation, the washer material must withstand these conditions. Metal washers provide strength in high-temperature and high-load settings, while rubber or nylon washers excel in wet or electrically insulating environments.

3. Bolt or Thread Size Matching

A washer must match the size of the bolt or screw it accompanies. Different washer types for bolts are designed to provide proper fit, load distribution, and reliability. The inner diameter should be slightly larger than the bolt to allow easy installation but not so large that it reduces load distribution. Properly matching the washer to the fastener ensures effective pressure spread and contributes to the overall stability and safety of the joint.

4. Sealing Requirements

Sometimes, a washer is needed not just for load distribution but also for sealing purposes. If preventing leakage of water, oil, or gas is important, choose a washer made of flexible, sealing-capable materials such as rubber, silicone, or PTFE. These washers can deform slightly under pressure, filling gaps and creating a tight seal that protects the assembly from contaminants and leakage.

Conclusion

Washers may appear to be small and simple components, yet they play an essential role in fastening systems across industries. By distributing loads, preventing surface damage, and enhancing stability, washers ensure safety and durability in countless applications. With a wide range of types and materials—such as metal, rubber, nylon, and plastic—engineers and manufacturers can select the most suitable washer for specific environments and performance needs. Not sure what kind of washer you need? Contact LVMA today.
