Types of CNC Machines: A Complete Guide for Select CNC Machines

CNC machine tools are the most commonly used equipment in subtractive machining, which processes materials by automatically controlling the tool's path through a computer. When you need custom parts manufactured, understanding the different types of CNC machines available can help you make informed decisions about your project. Each CNC machine type offers unique capabilities, and choosing the right one is crucial for achieving optimal results in terms of quality, cost, and delivery time.

What is CNC Machining?

CNC, which stands for Computer Numerical Control, is a manufacturing technology that automatically completes subtractive processing through computer digital instructions. This technology enables the production of complex parts with exceptional precision and repeatability. CNC machines can work with various materials including metals, plastics, composites, and ceramics, making them versatile solutions for custom part manufacturing.

CNC machining takes a digital design (CAD file) and converts it into machine instructions (G-code). The CNC machine then follows these instructions to process the raw material into the desired end product by cutting, drilling, milling or other operations.

CNC Milling Machines

CNC milling machines use rotating cutting tools to remove material from a stationary workpiece. These versatile machines can create complex 3D shapes, slots, holes, and intricate surface features.

CNC milling is divided into horizontal milling machines and vertical milling machines. The spindle of a horizontal milling machine is horizontal, and the cutting tool cuts the workpiece from the side. The spindle of a vertical milling machine is arranged in a vertical direction, and the tool cuts the workpiece from top to bottom.

Applications: Prototyping, small to medium batch production, parts requiring multiple features like holes, pockets, and contours.

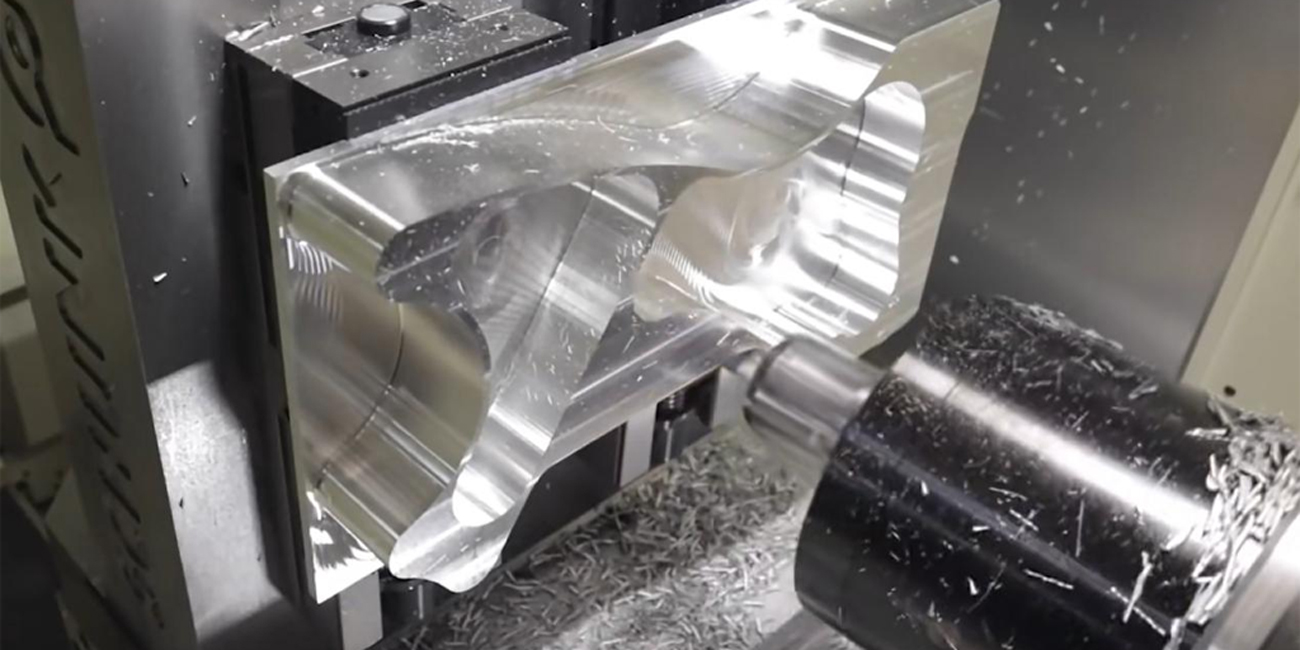

CNC Milling Machine

CNC Turning (Lathe) Machines

CNC Turning is when a machine controls the rotation of a workpiece while a tool removes material to form a cylindrical part. CNC Lathes excel at producing shafts, pins, bushings, and any part with rotational symmetry. CNC Turning provides an excellent surface finish and can achieve tight diameter and length tolerances.

Applications: Cylindrical parts, Shafts, Rods, Bushings, Threading operations, High-volume production of round components.

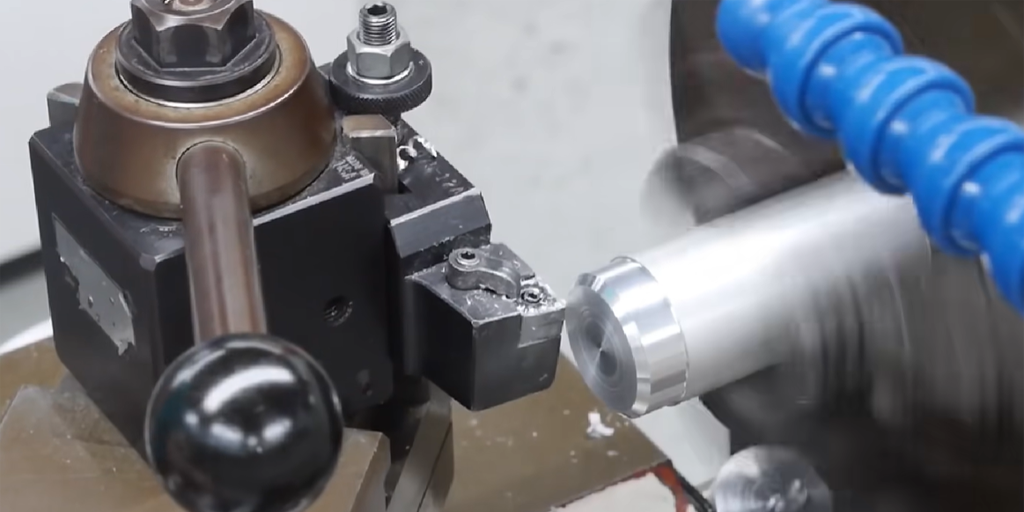

CNC Turning Machine

CNC Tuning Milling Compound Machines

Turn-Mill centers combine the capabilities of both milling and turning operations in a single machine. These advanced systems can perform multiple operations without requiring part transfers, reducing setup time and improving accuracy. They're ideal for complex parts that require both rotational and non-rotational features.

Applications: Complex parts requiring both turning and milling operations, reduced setup times, improved accuracy through single-setup machining.

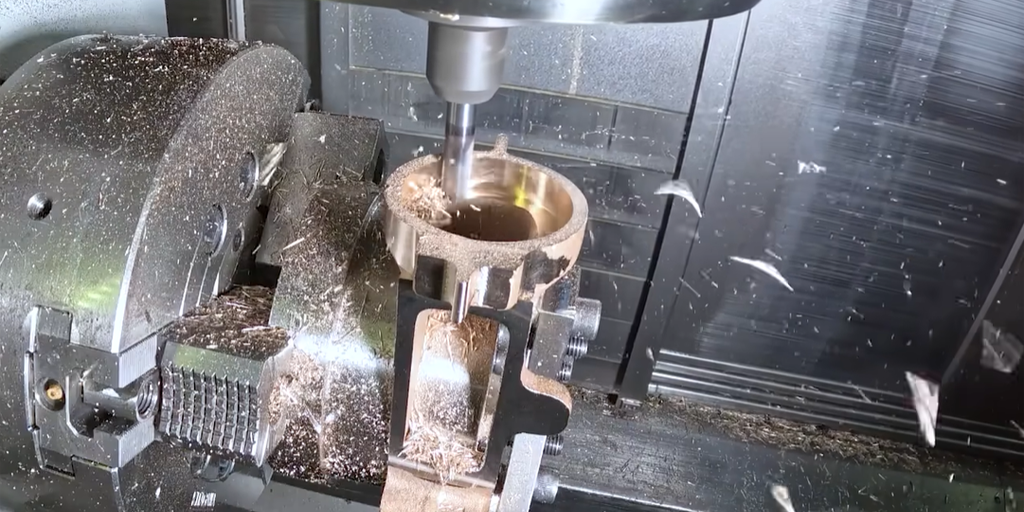

Turn-Mill Combination Machine

CNC Engraving

CNC Engraving machines are designed for creating detailed surface patterns, text, logos, and decorative elements. They use small cutting tools or specialized engraving bits to create precise marks on various materials. These machines are perfect for personalization, branding, and adding functional markings to parts.

Applications: Decorative elements, logos, serial numbers, personalized items, fine detail work, jewelry making.

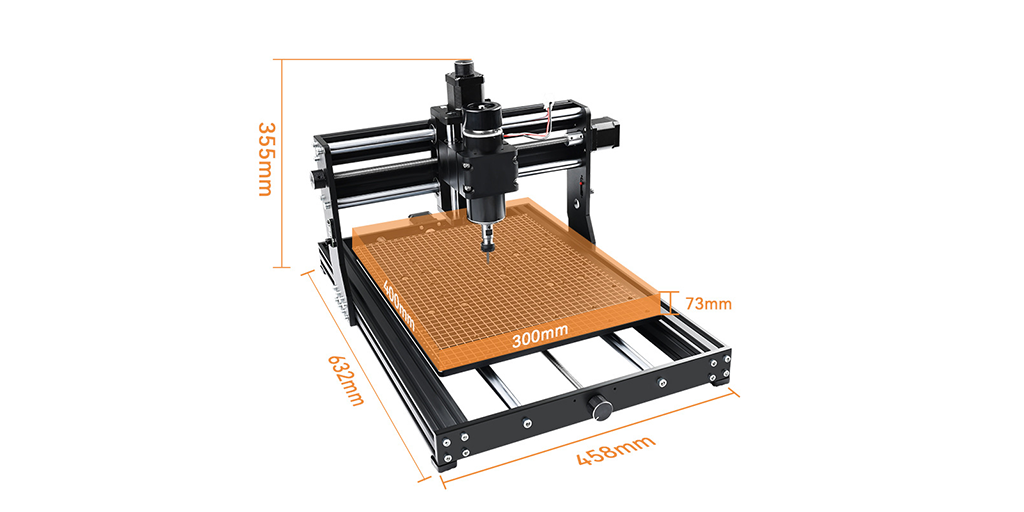

CNC Engraving Machine

CNC Plasma Cutting

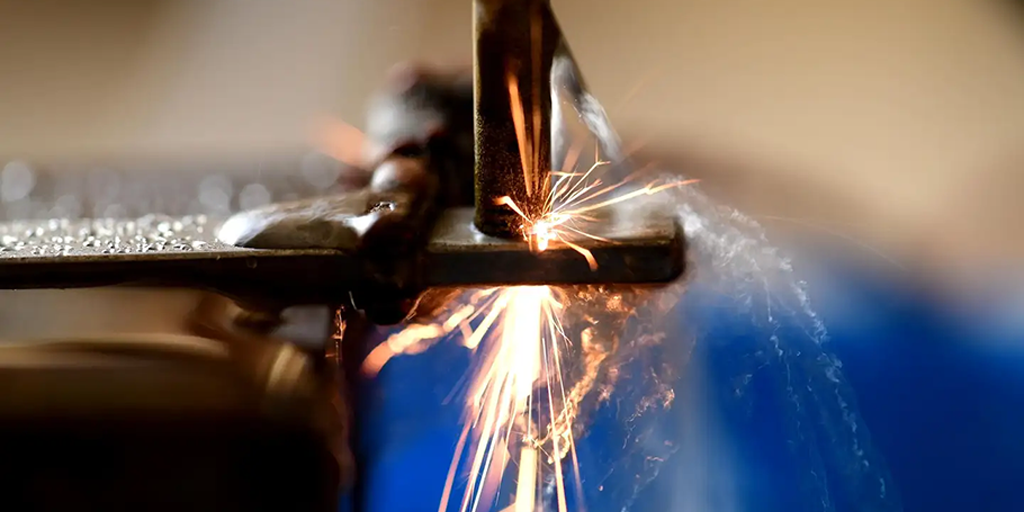

CNC Plasma Cutters use an electrically charged gas jet to cut through electrically conductive materials. They're particularly effective for cutting thick metal sheets and plates quickly and cost-effectively. Plasma cutting offers good edge quality and can handle various thicknesses of steel, aluminum, and other metals.

Applications: Thick metal cutting, large sheet metal parts, structural components, quick prototyping of flat metal parts.

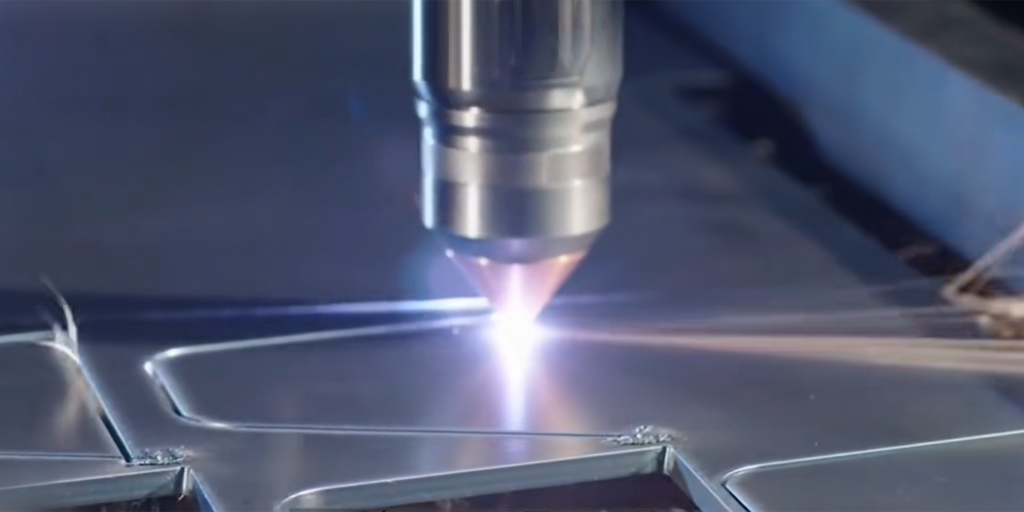

CNC Plasma Cutting

CNC Laser Cutting

CNC Laser Cutting uses a focused laser beam to cut or engrave materials with exceptional precision. Laser cutters can work with metals, plastics, wood, fabric, and other materials. They provide excellent edge quality, minimal heat-affected zones, and can create extremely intricate patterns and small features.

Applications: Thin to medium thickness materials, intricate patterns, fine details, clean edge finishes, non-metallic materials.

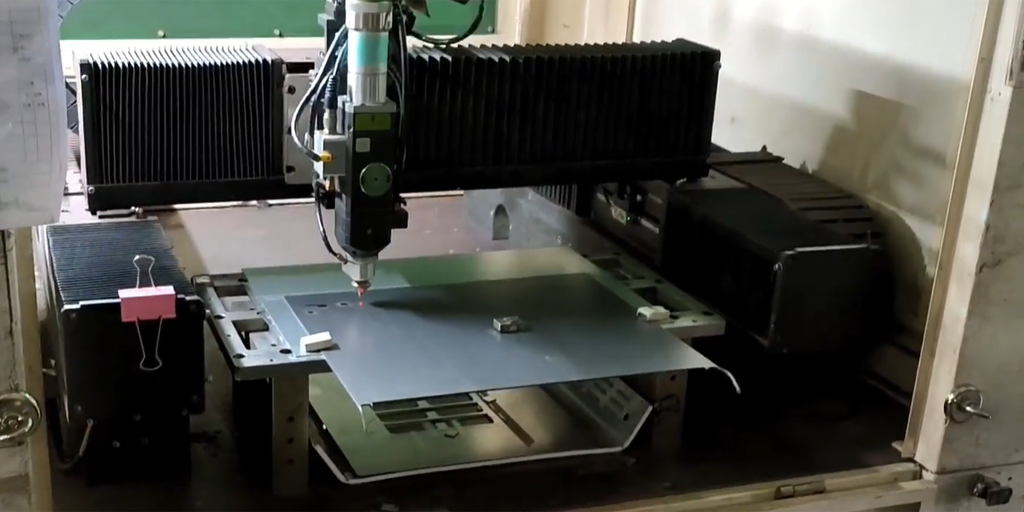

CNC Laser Cutting

CNC EDM (Electrical Discharge Machining)

EDM uses electrical discharges to remove material from conductive workpieces. This process is particularly valuable for creating complex internal cavities, sharp corners, and working with extremely hard materials that are difficult to machine conventionally. Wire EDM and sinker EDM are the two main types.

Applications: Hard materials, complex internal geometries, sharp internal corners, tool and die making, precision molds.

CNC Laser Cutting

CNC Waterjet Cutting

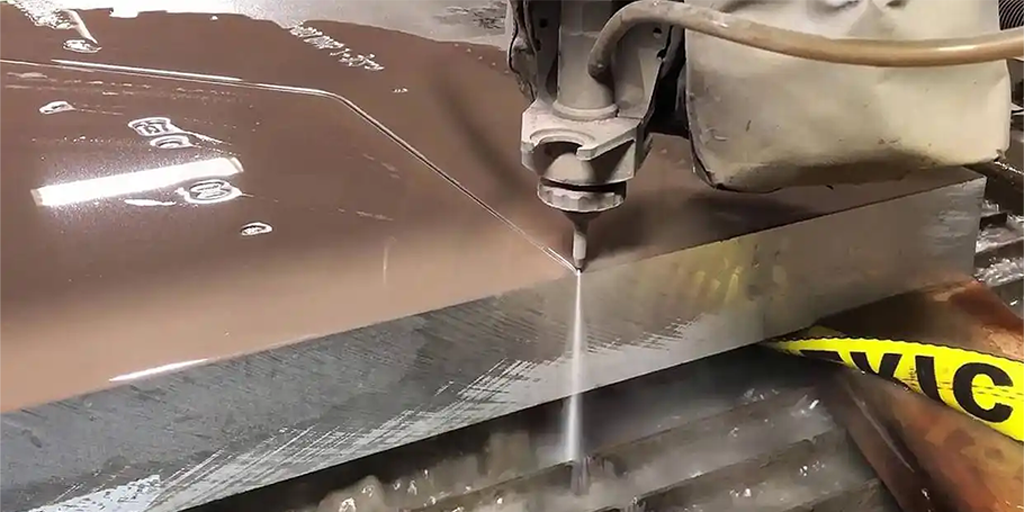

Waterjet Cutting uses a high-pressure stream of water, often mixed with abrasive particles, to cut through materials. This cold-cutting process doesn't introduce heat, making it ideal for materials sensitive to thermal effects. Waterjet can cut virtually any material and achieve excellent edge quality.

Applications: Thick materials, heat-sensitive materials, exotic alloys, stone, glass, composites, parts requiring no heat-affected zone.

CNC Waterjet Cutting

CNC Grinding

CNC Grinding machines provide superior surface finishes and can achieve extremely tight tolerances. They use abrasive wheels to remove small amounts of material, making them ideal for finishing operations and working with hardened materials. Surface grinders, cylindrical grinders, and centerless grinders are common types.

Applications: Superior surface finishes, tight tolerances, hardened materials, finishing operations, precision components.

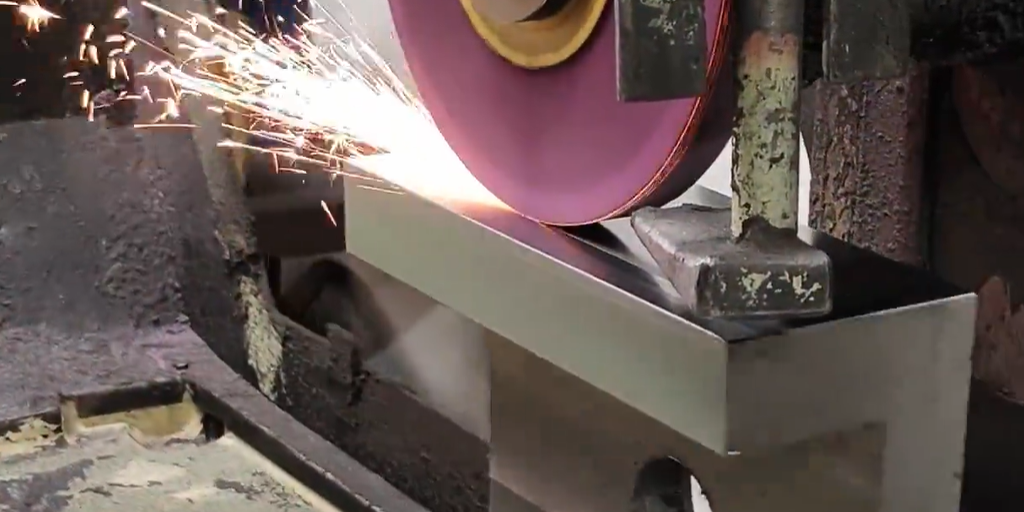

CNC Grinding Machine

CNC Drilling

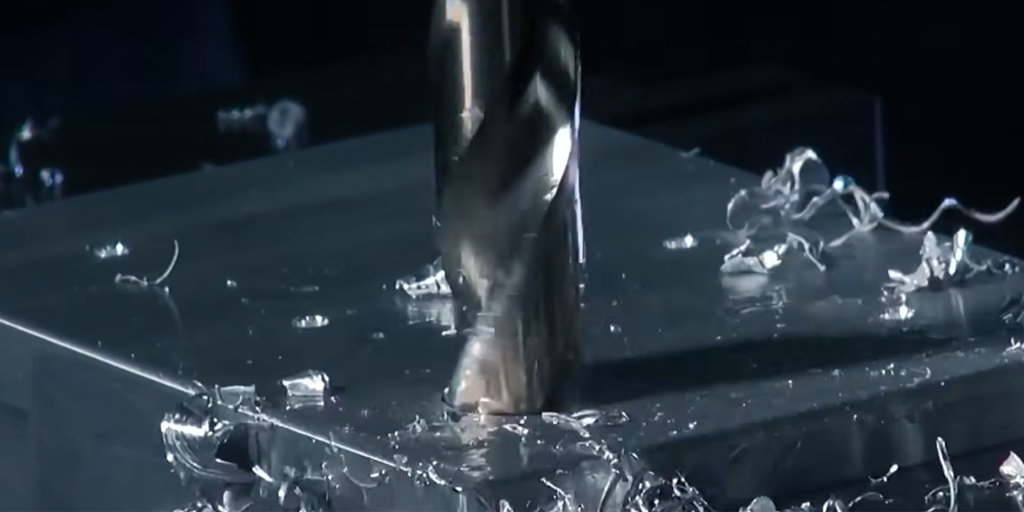

Specialized CNC Drilling machines are designed for high-speed, high-accuracy hole making. They can create multiple holes simultaneously and maintain consistent hole quality across large production runs. These machines often feature automatic tool changers and coolant systems.

Applications: High-volume hole production, PCB manufacturing, consistent hole quality, multiple hole patterns.

CNC Grinding Machine

Multi-Axis CNC Machines

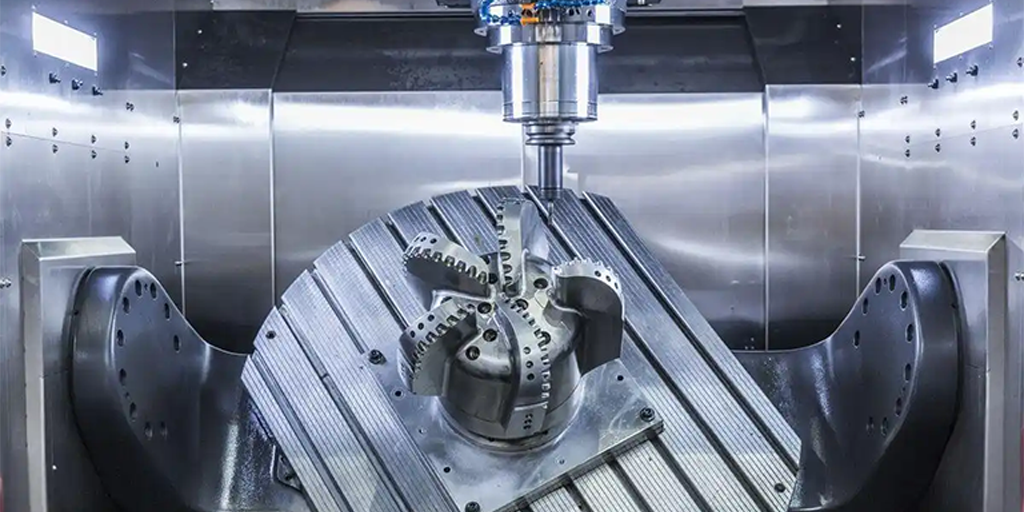

Multi-axis CNC machines (4-axis, 5-axis, and beyond) provide additional rotational capabilities, allowing the cutting tool to approach the workpiece from multiple angles. This capability enables the creation of complex geometries in fewer setups, improving accuracy and reducing production time.

Applications: Complex 3D geometries, aerospace components, medical implants, turbine blades, sculptural elements.

Multi-Axis CNC Machine

CNC 3D Printing (Additive Manufacturing)

CNC-controlled 3D printers build parts layer by layer from digital files. While technically additive rather than subtractive manufacturing, modern industrial 3D printers offer CNC-level precision and can work with metals, plastics, ceramics, and composite materials.

Applications: Complex internal geometries, rapid prototyping, low-volume production, lightweight structures, customized parts.

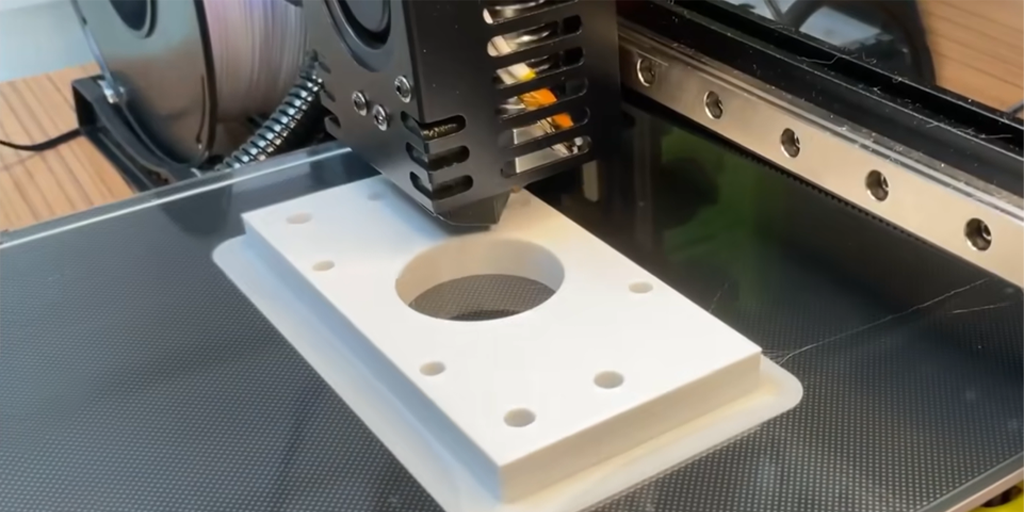

CNC 3D Printing

How to Choose the Best CNC Machine Type?

Selecting the optimal CNC machine type depends on several key factors:

Material Requirements: Consider the material you're working with. Metals typically require milling, turning, or EDM, while plastics might be better suited for laser cutting or 3D printing.

Part Geometry: Simple cylindrical parts favor turning, while complex 3D shapes require milling or multi-axis machining. Flat parts with intricate patterns are ideal for laser or waterjet cutting.

Tolerance Requirements: Grinding and EDM offer the tightest tolerances, while plasma cutting provides looser tolerances but faster cutting speeds.

Production Volume: High-volume production might favor turning or dedicated drilling machines, while prototyping often uses milling or 3D printing.

Budget Considerations: Consider both machine time costs and material waste. Waterjet and laser cutting minimize waste, while traditional machining might be more cost-effective for simple geometries.

Surface Finish Requirements: Grinding provides the best surface finishes, while some processes like plasma cutting may require secondary finishing operations.

Timeline: Some processes like 3D printing or laser cutting can deliver parts quickly, while others like EDM might take longer but offer superior precision.

The key to successful custom part manufacturing lies in matching your specific requirements with the most appropriate CNC technology. Working with experienced manufacturers who understand these different processes can help ensure you get the best results for your project while optimizing cost, quality, and delivery time.
