Roughing vs Finishing: Understanding the Two Critical Phases of Machining Success

2025-07-08

In the world of machining, the transformation of raw materials into precision components requires a systematic approach that balances efficiency with accuracy. The machining process is typically divided into two fundamental stages: roughing and finishing operations. Each stage serves a distinct purpose in the manufacturing workflow, with roughing focusing on rapid material removal and finishing emphasizing precision and surface quality.

Understanding the differences between these two approaches is crucial for optimizing production processes, selecting appropriate tooling, and achieving desired part specifications.

What is Rough Machining?

Roughing, also known as rough machining or rough cutting, is the initial stage of the machining process and is a machining method that removes as much material as possible in the shortest possible time. The main goal of roughing is to machine the raw material into a shape that is very close to the final part geometry and to leave a predetermined allowance for subsequent finishing operations.

The process prioritizes material removal rate over surface quality and dimensional accuracy and uses aggressive cutting parameters to achieve high productivity.

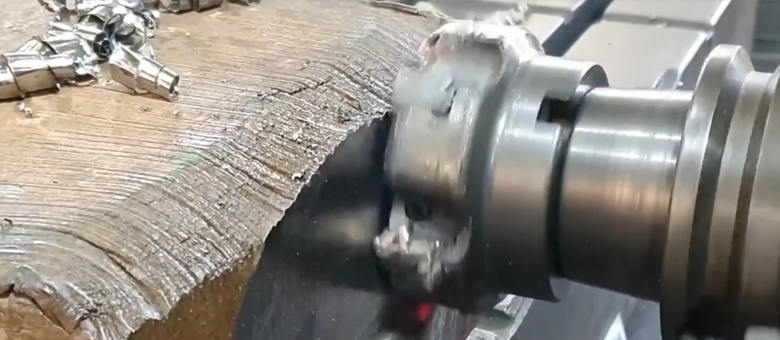

CNC rough in machining

What is Finishing in Machining?

Finishing Machining is the final stage of machining where precision, surface quality, and dimensional accuracy take precedence over material removal rates. The primary purpose of finishing is to bring a workpiece to final dimensions, within specified tolerances, while achieving the desired surface finish. Finishing removes a relatively small amount of material left after roughing, typically ranging from a few thousandths to a few hundredths of an inch.

Tools used for finishing machining are typically sharper, more precise, and designed to achieve a superior surface finish than roughing tools. These tools often have special geometries, coatings, or materials to enhance their ability to machine smooth surfaces and hold tight tolerances.

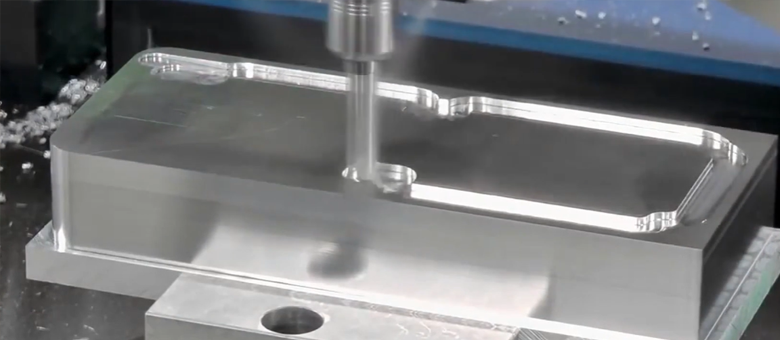

CNC finishing in machining

The Difference Between Rough Machining and Finishing

This table outlines the fundamental differences between roughing and finishing operations in CNC machining, comparing their primary objectives, cutting parameters, and expected results to help optimize your machining strategy.

	Roughing	Finishing
Objective	Rapidly remove bulk material and form rough shape	Improve surface quality and achieve high accuracy
Feed Rate & Cutting Depth	High feed rate, deep cuts	Low feed rate, shallow cuts
Material Removal Rate (MRR)	High	Low
Surface Finish	Rough surface, visible tool marks	Smooth surface, fine finish
Dimensional Accuracy & Tolerance	Low accuracy, loose tolerances	High accuracy, tight tolerances
Tool Type/Cutting Tool	Roughing tools (e.g., large diameter end mills)	Finishing tools (e.g., ball nose, fine-tooth)
Cost	Lower per minute cost, but higher total material removal	Higher per minute cost, but lower removal volume
