Die Casting Pros & Cons: What You Need to Know

Die casting is a widely used metal forming process, often used for the production of large quantities of metal parts. From automotive components to consumer electronics, it plays a key role in modern manufacturing. Understanding its benefits and limitations is essential before deciding if it fits your product development needs.

While die casting offers speed, consistency, and cost-effectiveness for large-scale production, it also presents challenges, such as high tooling costs and limited material flexibility. This article explores the die casting process, its key advantages and disadvantages, and aims to help you make a more informed decision when choosing a manufacturing method.

What Is Die Casting?

Die casting is a metal casting process. It involves pouring molten metal into a steel mold, the metal is then cooled and solidified to form the final shape. These dies are precision-machined to produce complex shapes with excellent dimensional accuracy and smooth surfaces. Once the metal solidifies, the mold opens and ejects the finished part, ready for further processing or use.

There are several types of die casting processes, including hot chamber die casting, cold chamber die casting, vacuum die casting, and squeeze die casting. Each method is suited to different materials, part sizes, and performance requirements. The choice of process depends on factors like alloy type, production speed, and cost-efficiency.

Hot-chamber die casting machines are ideal for processing low-melting-point metals like zinc and magnesium. Because the metal is melted inside the die casting machine, cycle times are short and efficiency is high. Cold chamber die casting machines are used for processing higher-melting-point metals like aluminum. In cold-chamber die casting machines, molten metal is automatically poured into the die casting chamber, making them suitable for high-strength applications.

Applications of Die Casting

Automotive

Die casting is widely used in the automotive sector to produce complex, high-strength metal parts in large volumes. It supports lightweight design and high production efficiency.

Example products:

• Engine blocks
• Transmission housings
• Alloy wheels

Electronics & Communication

Die casting is ideal for manufacturing precise, heat-dissipating, and durable enclosures and components for electronic devices.

Example products:

• Smartphone metal frames
• Heat sink bases
• Signal amplifier housings

Aerospace

Die casting is applied in the aerospace field for non-structural parts that require lightweight and precision manufacturing.

Example products:

• Navigation instrument casings
• Internal brackets
• Control panel covers

Types of Die Casting

Die casting is mainly divided into cold chamber and hot chamber processes. These two methods play a vital role in modern manufacturing, each suited to specific materials and production needs. Understanding their differences is essential for selecting the right process to ensure quality, efficiency, and cost control.

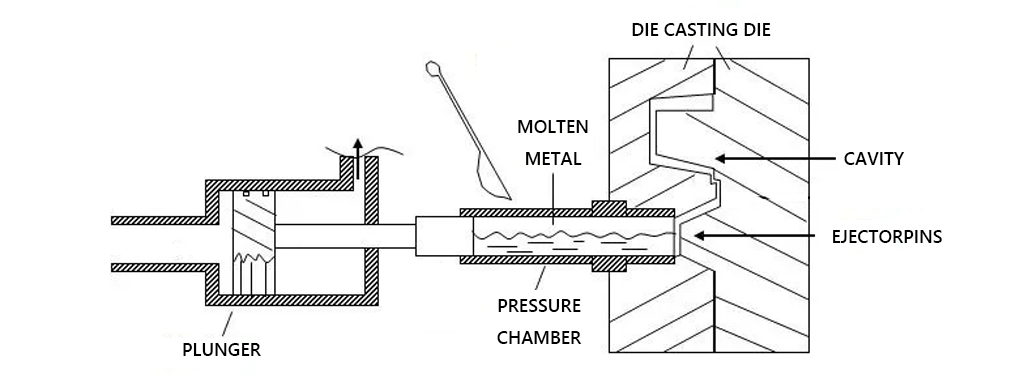

Cold Chamber Die Casting

Cold chamber die casting is ideal for high-melting-point metals such as aluminum and copper. Molten metal is poured into an injection chamber and then forced into a die under high pressure.

This process is suitable for metals with relatively high melting points. Aluminum alloys, with melting points of approximately 463°C (865°F) and reaching temperatures as high as 671°C (1240°F), are typical candidates for cold chamber die casting.

Cold chamber die casting produces dense, strong parts with excellent mechanical properties, making it suitable for large or complex components. Auto parts, engine housings, and structural components requiring durability and precision are manufactured through cold chamber die casting.

Hot Chamber Die Casting

Hot chamber die casting is best for low-melting-point alloys like zinc, lead, and magnesium. The injection system is immersed in molten metal, allowing for faster cycles.

It offers high efficiency and excellent surface finish, making it ideal for small, high-volume production parts.

Typical products include consumer electronics, hardware fittings, and decorative components with fine details.

Die Casting Steps

1. Mold Development

The molds used in die casting are precisely designed metal dies whose geometry perfectly matches the final product. Engineers use CAD/CAM and CFD (computational fluid dynamics) to perform detailed simulations, including internal friction, flow rate, and heat dissipation during pouring.

After the digital simulations are verified, the technical drawings and process parameters (including tolerances and machine capacity) are handed over to an experienced mold maker. These experts use CNC machining technology to manufacture the mold and conduct a trial run to verify performance. In addition to the cavity, the mold also includes runners, a cooling system, and an ejector mechanism.

Mold design is the most critical step in die casting. Excellent mold design can reduce material waste and deformation and improve productivity.

2. Mold Setup and Adjustment

The mold consists of two parts: the movable mold and the fixed mold. The fixed mold is attached to the machine and remains stationary. The movable mold is removable and can be disassembled to remove the casting.

Before production begins, there are still some preparatory steps to take place.

Before machining, the mold needs to be cleaned and preheated, and the mold surface needs to be coated with a release agent and an insulating coating. The purpose of the lubricant is to regulate the mold temperature and the friction during demolding.

3. Molten Metal Injection

During this stage, the molten alloy is injected into the mold cavity. There are two main techniques:

Gravity die casting is a die casting method in which molten metal flows from the gate into the mold by its own weight. Gravity die casting ffers better mechanical strength,low porosity.

High-pressure die casting, in which the molten metal is forced into the mold at pressures ranging from 100 to 1,800 bar (1,400 to 26,000 psi).

High-pressure casting methods ensure better mold filling, enable the production of thin-walled and complex shapes, provide better surface finish and dimensional consistency, and generally reduce the need for secondary machining.

4. Solidification and Cooling

The metal passes through the gate, completely fills die casting die cavity, and begins to cool and solidify. Controlling the cooling rate is crucial to achieving the desired internal structure and preventing thermal stresses or defects.

Uniform cooling helps minimize surface defects, porosity, or internal cracks, ensuring that the final casting meets quality standards.

5. Casting Ejection

After the part solidifies, the mold opens and the casting is removed. This process can be automated or manual, depending on the scale of production.

Ejector pins built into the mold eject the casting in a controlled manner, minimizing potential damage and speeding up production cycles.

6. Post-Casting Finishing

After ejection, excess material may remain in the casting, such as from sprues, runners, or flash. This material is typically trimmed off and recycled by remelting.

Advantage of Die Casting

One-Step Formation of Complex Shapes

Die casting allows for precise, one-step formation of complex geometries, including thin walls, fine ribs, and intricate internal structures—eliminating the need for welding or assembly and ensuring structural integrity.

Fast Mass Production

With short cycle times and high automation, die casting is ideal for medium to high-volume production. Each casting cycle can take just seconds, enabling rapid output without compromising consistency.

Cost-Effective Manufacturing

Although initial tooling costs can be high, the low per-unit cost in mass production makes die casting highly economical. Minimal need for secondary machining also contributes to overall cost savings.

Smooth Surface Finish

Die cast parts feature excellent surface smoothness and fine detail, often requiring little to no additional finishing. This reduces the need for polishing, painting, or plating in many applications.

Limitations of Die Casting

High Initial Investment

Die casting requires significant upfront costs for mould (tooling) design and manufacturing. This makes it more suitable for large-volume production, as the tooling cost must be amortized over many parts to be cost-effective.

Limitations on Part Size

Die casting is generally not suitable for very large components due to machine tonnage limits and mould size constraints. It works best for small to medium-sized parts where high precision and repeatability are required.

Conclusion

Die casting is a highly efficient manufacturing method that can easily produce complex, high-precision parts. It offers advantages such as faster production times, greater dimensional accuracy, and superior surface quality. Aluminum die casting has become a key process in lightweight design, particularly in the automotive sector, helping to reduce overall weight without sacrificing durability.
