Designing Metal Assemblies: Welding, Fastening, and Assembly Methods Explained

Metal assemblies are the result of joining sheet metal components to create durable and functional products or sub assemblies. This process goes beyond simply connecting parts—it ensures structural integrity, precise alignment, and consist performance across production runs. From automotive chassis to electronic enclosures, sheet metal assembly plays a crucial role in industries where reliability and quality are non-negotiable.

In this guide, we will explore the most common assembly methods, essential design for assembly principles, and common pitfalls to avoid. By understanding these key aspects, engineers and designers can create serviceable metal assemblies that meet performance requirements while remaining cost-effective and efficient.

Joining Methods for Metal Assemblies

Welding

Welding is a thermal joining process that permanently fuses metal parts, forming strong, durable bonds. It is widely used in sheet metal assembly and structural applications where alignment and load-bearing capacity are essential. Welding enables engineers to create seamless, rigid connections that are critical in automotive, aerospace, and industrial machinery.

MIG Welding

Welding is a thermal joining process that permanently fuses metal parts, forming strong, durable bonds. It is widely used in sheet metal assembly and structural applications where alignment and load-bearing capacity are essential. Welding enables engineers to create seamless, rigid connections that are critical in automotive, aerospace, and industrial machinery.

TIG Welding

TIG welding employs a non-consumable electrode to produce precise, clean welds. It is ideal for thin materials or applications where appearance and tight tolerances are critical, such as aerospace components, architectural metalwork, or high-end electronics housings.

Spot Welding

Spot welding is a fast, localized joining method, commonly used for overlapping metal sheets in serviceable metal assemblies. Its automation capability makes it ideal for industries requiring speed, consistency, and repeatable production.

Advantages: High strength, permanent joints, minimal added weight.

Limitations: Heat distortion in thin materials, requires skilled operators, difficult to disassemble.

Typical Applications: Automotive chassis, electronic enclosures, structural frames.

Fasteners

Bolts

Bolts are threaded fasteners that clamp two or more sheet metal components together, providing strong, serviceable joints. They allow easy disassembly for maintenance or upgrades, making them ideal for modular designs in industrial equipment, robotics, or structural assemblies. Proper torque and material selection ensure reliable long-term performance.

Screws

Screws are versatile fasteners commonly used in sheet metal assembly to join panels and brackets. They provide flexibility in installation and removal, especially in electronic housings or machinery panels. Screws are suitable for components that may need periodic maintenance or replacement.

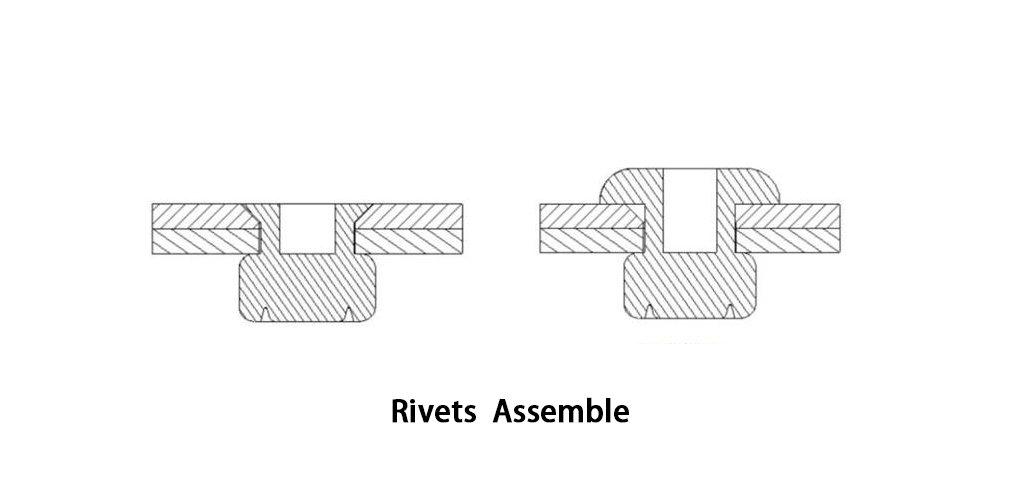

Rivets

Rivets create permanent, vibration-resistant joints by deforming the tail end after insertion. They are widely used in automotive bodies, aircraft skins, and appliance manufacturing. Rivets are particularly effective in applications where serviceability is not required but strong, lightweight connections are essential.

PEM Fasteners

PEM self-clinching fasteners are pressed into sheet metal to form strong, permanent threads. They are excellent for thin metals that cannot be tapped conventionally, enabling robust mechanical fastening in electronic enclosures, server racks, and other precision assemblies.

Advantages: Serviceable, no heat-affected zones, compatible with dissimilar metals.

Limitations: Increased part count, potential loosening under vibration, precise hole alignment required.

Maintenance Notes: Use lock washers or thread-locking adhesives to prevent loosening in high-vibration environments.

Adhesives & Bonding

Adhesive bonding joins metals without heat, distributing stress evenly across the surfaces. It is especially useful for joining sheet metal with composites or when lightweight assemblies are required.

Adhesives

Adhesives bond metal parts using epoxies or structural glues, creating continuous joints that evenly distribute stress. Adhesive bonding is particularly useful when joining sheet metal to composites or plastics, providing vibration damping, corrosion protection, and smooth surfaces without fasteners. Careful surface preparation and curing are critical for performance.

Structural Adhesives

Structural adhesives are used in load-bearing metal assemblies where a strong, permanent bond is needed. They allow joining of dissimilar metals or hybrid materials, reducing weight and eliminating heat distortion. Common applications include aerospace panels, automotive subassemblies, and electronic housings.

Requirements: Careful surface cleaning and preparation are essential.

Limitations: Curing time can increase assembly cycle time; temperature resistance may be limited.

Applications: Aerospace panels, electronic housings, vibration-sensitive assemblies.

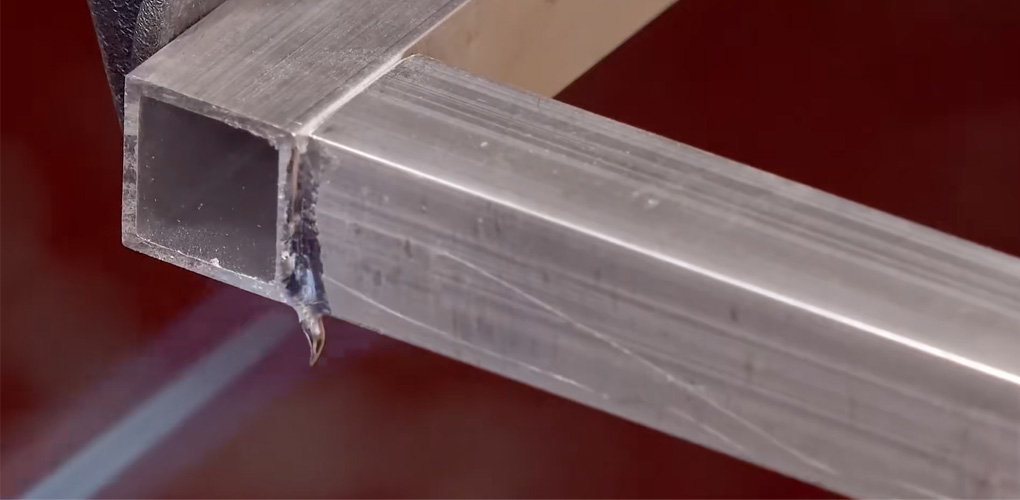

Brazing & Soldering

Brazing and soldering join metals using a molten filler without melting the base parts, minimizing heat distortion. These methods are commonly used for electronics or fluid-handling systems.

Brazing

Brazing joins metals by melting a filler metal above 450°C without melting the base metals. It creates precise, strong joints with minimal thermal distortion, making it ideal for metal assemblies in HVAC, plumbing, and structural tubing.

Soldering

Soldering occurs below 450°C and is primarily used in electronic or fluid systems. It provides reliable, low-thermal-stress connections for delicate components, including circuit boards, heat exchangers, and small mechanical assemblies.

Advantages: Low thermal impact, precise joints, compatible with delicate components.

Limitations: Lower mechanical strength than welding, may require flux and cleaning.

Applications: Heat exchangers, circuit boards, plumbing or fluid fittings.

Mechanical Features

Mechanical features use the geometry of components themselves to create precise connections without extra hardware. This approach enhances assembly speed and accuracy in sheet metal assembly.

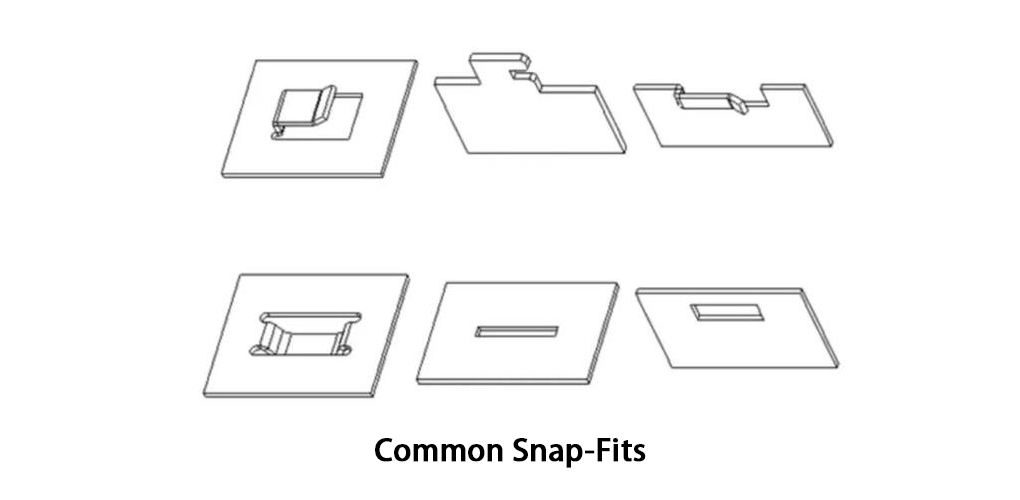

Snap-Fits

Snap-fits use the flexibility of the metal to create interlocking connections. They are fast, low-cost, and ideal for parts requiring repeated assembly or occasional service, such as battery covers or access panels in sheet metal assemblies.

Tongue-and-Groove

Tongue-and-groove joints interlock sheet metal components to improve alignment and stiffness. This method is common in chassis, frames, and modular structures where precise positioning is required.

Press-Fit

Press-fit pins or dowels ensure accurate alignment of components without additional fasteners. They reduce tolerance stack-up and improve assembly repeatability, particularly in serviceable metal assemblies and precision brackets.

Dowel Pins

Dowel pins act as locating features to guide parts into position, minimizing errors during assembly and reducing reliance on external fixtures. They are widely used in precision enclosures, industrial equipment, and modular designs.

Advantages: Reduces the need for external fixtures, increases repeatability, accelerates assembly.

Limitations: Requires careful design to ensure proper fit; less flexible than mechanical fasteners for changes.

Applications: Sheet metal enclosures, precision brackets, housings in robotics and electronics.

Comparison of Sheet Metal Assembly Methods

Design Considerations for Metal Assemblies

Design for Assembly (DFA)

Considering assembly sequence, part alignment, and fit from the early design stage can significantly reduce production difficulties and rework. Design for assembly emphasizes planning interfaces and fastener selection during the CAD stage, while closely collaborating with manufacturing engineers to ensure tools and equipment can be used efficiently in practice. This early planning not only improves efficiency but also ensures consistency and reliability in sheet metal assembly.

Tolerance Stack-Up

Accumulated dimensional variation is a common challenge in multi-part assemblies, potentially causing poor fit or assembly issues. By analyzing tolerance stack-up (tolerance stack-up) and applying GD&T to critical dimensions, designers can predict final assembly deviations. Using CAD simulations and datum-based design, potential issues can be identified before production, controlling cumulative errors and ensuring smooth assembly.

Material Compatibility

Direct contact between dissimilar metals may cause galvanic corrosion, affecting the long-term performance of serviceable metal assemblies. During design, compatible materials should be selected, or insulating elements, anodizing, and protective coatings can be used. Proper material choices not only extend product life but also maintain mechanical and electrical performance during operation and maintenance.

Load Path Design

Proper load distribution is essential for ensuring the structural strength of metal assemblies. Designers should use force flow analysis and finite element validation (FEA) to identify high-stress areas and optimize load paths using gussets, brackets, or stiffeners to avoid localized stress concentrations. A well-distributed load path increases fatigue life and reduces the risk of damage from vibration or impact.

Corrosion Prevention

Surface treatment is crucial for extending product life and maintaining appearance quality. In sheet metal assembly design, techniques such as anodizing, plating, or powder coating can be combined with electrochemical isolation strategies to prevent corrosion. Appropriate coating selection and thickness control, along with separating dissimilar metals, help assemblies remain durable in humid or outdoor environments.

Molecularity vs. Permanence

The design phase should balance serviceability and permanent joining. Serviceable metal assemblies often use bolts or PEM fasteners to facilitate maintenance and upgrades. In contrast, high-strength, lightweight, or sealed components may require welding or structural adhesives for permanent connections. Choosing the right approach based on product lifecycle and maintenance needs allows an optimal balance between performance and serviceability.

Self-Locating Features

Leveraging structural features such as snaps, tabs, press-fit pins, or bosses allows automatic part alignment, reducing assembly errors and minimizing reliance on external fixtures. Embedding locating features, such as grooves, bosses, or alignment holes during design, and using material elasticity or shape-lock mechanisms ensures parts position themselves accurately. For precision assemblies like electronic enclosures or industrial racks, self-locating design significantly improves repeatability, efficiency, and consistent accuracy in each assembly.

Common Design Mistakes and Recommendations

Ignoring Tolerance Stack-Up

Neglecting the accumulation of small dimensional variations can result in interference or misalignment during assembly, causing forced fits and potential part damage. The solution is to analyze tolerance stack-ups early in the design for assembly process, apply GD&T principles, and verify part interfaces in CAD simulations to ensure smooth and repeatable assembly.

Incompatible Metal Contact

Direct contact between dissimilar metals can lead to galvanic corrosion and premature joint failure. To prevent this, designers should select compatible materials or incorporate insulating elements, coatings, or anodized surfaces. This approach ensures serviceable metal assemblies remain durable and reliable over time.

Incompatible Metal Contact

Applying excessive torque to fasteners can strip threads or deform parts, while improper adhesive application can create maintenance challenges or joint failure. The remedy is careful specification of torque limits, correct fastener selection, and adherence to adhesive preparation and curing guidelines, ensuring long-term joint strength and maintainability.

Incompatible Metal Contact

Placing fasteners or welds in locations that are difficult to reach can make assembly or repair impossible. Designers should consider tool access, ergonomic placement, and assembly sequence from the earliest design stages. This ensures efficient assembly and simplifies future maintenance of sheet metal assemblies.

Incompatible Metal Contact

Lack of space for tools or absence of visual guides can cause production errors, slow assembly, and increase rework. Incorporating clear alignment features, reference marks, or labels, and verifying adequate tool clearance during design reduces mistakes and improves assembly accuracy, speed, and consistency.

Conclusion

In summary, successful sheet metal assembly depends on selecting the appropriate joining methods to balance strength, precision, and manufacturability. By applying design for assembly principles—such as tolerance management, material compatibility, and self-locating features—engineers can reduce production errors, simplify maintenance, and improve overall efficiency. Thoughtful planning at the design stage ensures that serviceable metal assemblies are not only robust and durable but also easier to assemble, inspect, and repair, making them ideal for a wide range of industrial and commercial applications.
