The Importance of 3D Prototyping in Modern Product Development

In the process of product design and development, traditional prototyping often faces many challenges such as long cycle, high cost, and difficult modification. Designers and engineers need to communicate repeatedly, wait for processing, and iterate multiple times, which consumes a lot of time and resources. However, with the rapid development and increasing maturity of 3D printing prototyping services, all this is undergoing fundamental changes.

3D printing technology has brought a revolutionary breakthrough in prototyping. It can directly transform digital design into physical models, greatly shortening the distance from concept to physical object. Through layer-by-layer additive manufacturing, designers can obtain accurate prototype products in a few hours, while traditional manufacturing methods may take weeks.

More importantly, 3D printing prototyping has excellent cost-effectiveness and design freedom. Whether it is complex geometric structures, internal cavity designs, or integrated assemblies, they can be easily achieved through 3D printing prototyping service without considering the limitations of traditional manufacturing processes. This technological advantage makes small-batch customization and personalized product development economically feasible, opening up new design space and business opportunities for innovators in all walks of life.

What is 3D Prototyping?

3D prototyping is the use of additive manufacturing technologies such as 3D printing. 3D printing builds objects layer by layer, allowing designers to transform CAD files into tangible prototypes in hours. It addresses the limitations of traditional subtractive manufacturing and enables rapid iteration of complex geometries.

The technology offers significant advantages over traditional prototyping methods in terms of cost savings and design flexibility. It enables designers to quickly test form, fit, and function, and make real-time adjustments as needed. This faster development cycle helps companies validate ideas early and shorten time to market without investing too much in tooling costs upfront.

3D printing prototype is suitable for most industries, so compared with many other technologies (such as CNC machining), 3D printing prototype is still the first choice for concept verification.

Industries suitable for 3D printed prototyping

3D prototyping technology is widely used in many industries because of its fast, efficient and customizable features. It can help designers and engineers test and optimize designs at an early stage, thereby speeding up product development, reducing costs and improving market responsiveness. The following are common application industries:

• ● Automotive industry: used for appearance design, functional testing and component assembly verification
• ● Aerospace: supports the testing and verification of high-precision components, reducing trial and error costs
• ● Consumer electronics: widely used in rapid prototyping and feel testing of product shells, structural parts, etc
• ● Medical Devices: Used for prototyping customized products such as prosthetics and surgical guides
• ● Industrial equipment: assists in structural testing and design improvement of complex mechanical parts
• ● Architecture and creative design: realize the rapid presentation of architectural models and creative artworks

3D Prototyping technology is particularly suitable for industries that require multiple rounds of iterations and detailed verification. By discovering design problems in advance, it helps companies reduce risks before mass production and improve product quality and customer satisfaction.

Why is 3D Printing Good for Prototyping?

• Rapid Iteration Optimization

3D printing uses additive manufacturing technology to generate physical prototypes directly from CAD data, and the production cycle is usually 4-24 hours. Compared with the mold making time required for traditional CNC machining or injection molding, the product development cycle is greatly shortened. After the design is changed, it can be reprinted and verified immediately, supporting agile development processes.

• Cost-effectiveness

• Design flexibility

Unlike subtractive machining, 3D printing can produce complex internal channels, honeycomb structures, topologically optimized shapes, etc. Supports integrated printing assemblies to eliminate the accumulation of assembly tolerances between parts. This design freedom provides a broader design space for product innovation.

• Multi-material Selection

How Is 3D Printing Used to Produce a Prototype?

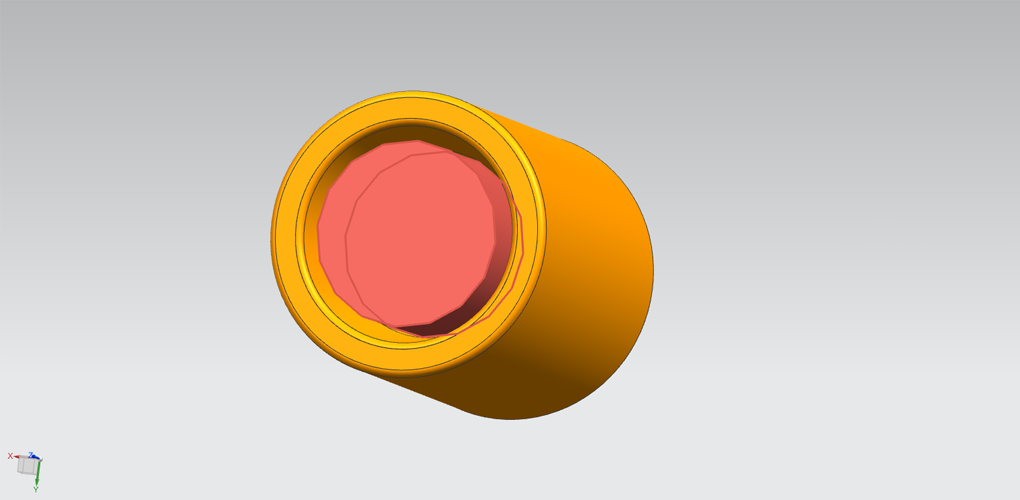

1. CAD design modeling

In the modeling stage, not only the aesthetics and functionality of the design should be considered, but also the structure optimization should be combined with the selected 3D printing technology and material properties. For example, if the structure is too thin in FDM printing, it is easy to cause warping or fracture; while SLA printing needs to avoid overhanging design to reduce support intervention.

• ● STL (Standard Tessellation Language): The most widely used format, compatible with most FDM, SLA, and other 3D printers. It represents the model using triangles but does not include color or material data.
• ● OBJ (Object File): Similar to STL but can store additional information such as color, texture, and materials—ideal for more detailed visual models.
• ● 3MF (3D Manufacturing Format): A modern format developed by Microsoft that supports full model data, including units, materials, colors, and slicing info. It improves compatibility and print efficiency.
• ● AMF (Additive Manufacturing File Format): Another advanced format supporting multi-material and multi-color printing, though it's less commonly used.

2. File Processing and Slicing

After modeling is completed, the model needs to be imported into the slicing software to set printing parameters and convert data. This step is not only related to the accuracy and appearance of the print, but also affects the printing speed, material usage and printing stability.

The slicing software will "divide" the model into multiple horizontal layers and generate path control instructions (G-code) for each layer to drive the print head to move accurately, extrude materials and other operations.

During the slicing stage, the following key parameters need to be set:

• ● Layer Height: Determines the accuracy and surface finish of the print. The smaller the layer height, the higher the accuracy, but the longer the printing time.
• ● Infill Density: Used to adjust the material filling degree inside the model, affecting its strength and weight.
• ● Support Structures: Add temporary structures to support the suspended parts of the model when necessary to avoid collapse.
• ● Printing speed and temperature settings: Choose the appropriate nozzle temperature and moving speed according to the specific material (such as PLA, ABS, PETG, resin, etc.).
• ● Platform attachment method: Such as Skirt, Brim, Raft and other settings to prevent the edge of the model from warping during printing.

After slicing, you can preview the printing process, estimate the consumables and time, and generate the G-code file after confirmation to make final preparations for printing.

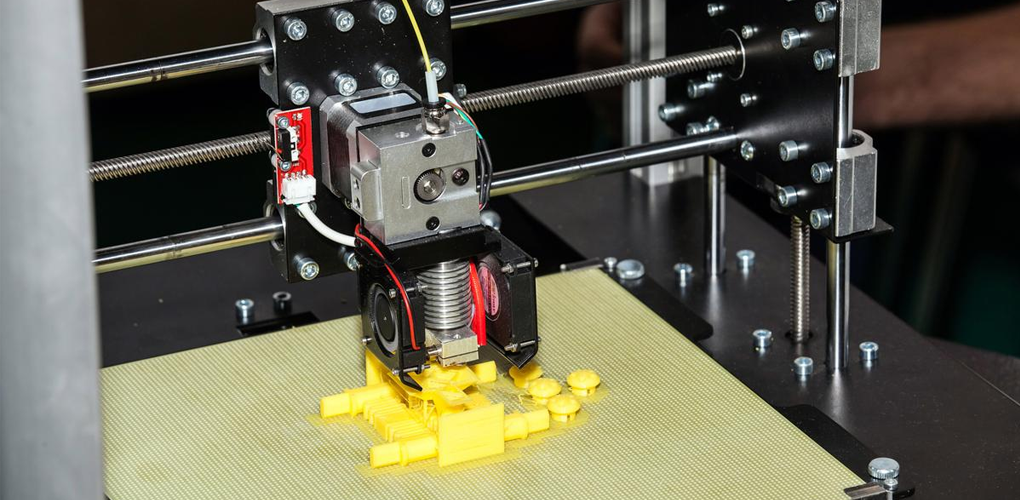

3. 3D Printing & Post-Processing

After uploading the G-code file to the 3D printer, you can start the physical construction process. The printer will stack the materials layer by layer according to the instructions and gradually form a three-dimensional model. The technology used for printing needs to be selected according to the application target:

FDM (Fused Deposition Modeling): Commonly used for fast proofing, easy operation, and a variety of materials, such as PLA, ABS, and PETG.

SLA (Stereolithography): Suitable for high-precision, small-detail models with smooth surfaces, commonly used in jewelry, medical and display models.

SLS (Selective Laser Sintering): Suitable for printing complex structures without support. Materials such as nylon powder are often used for functional testing or low-volume production.

After printing, a series of post-processing is usually required, such as support removal, sanding, polishing or UV curing. Some prototypes may also require spraying, coloring or surface coating to enhance the visual effect or meet functional testing requirements.

Conclusion

3D printing prototype is a powerful solution for accelerating product development and enhancing design flexibility. It simplifies the testing and iteration process while reducing the cost and time of traditional prototyping. Whether it is functional verification or visual presentation, 3D printing provides unparalleled speed and precision.

Before launching a project, it is important to choose a reliable partner. LVMA is your excellent choice for creating 3D printed prototypes. With LVMA's professional tools and deep expertise, you can quickly and cost-effectively transform CAD designs into accurate prototypes ready for the next stage.
